HCS User Manual
35
Verify Share2
®
Function is Working Properly
After wiring is complete use a DC volt meter to test functionality.
Connect the volt meter negative lead to ground, then connect the
volt meter positive lead to the White wire. A measurement greater
than 4V DC should be seen when a vehicle is not connected or
not charging. A voltage less than 1V DC will be measured on the
White wire when a vehicle is charging.
NOTE:
There is a 5 second delay once one vehicle stops charging
before the White wire returns to greater than 4V DC and
an additional 10 seconds before full circuit power will be
available to the other vehicle.
Share2
®
Operating Instructions
1. Connect Vehicle #1 to either HCS #1 or HCS #2 with
the corresponding SAE-J1772
TM
connector. Vehicle #1
will have access to the full power available through that
circuit.
2. Connect Vehicle #2 to the remaining EVSE with the
SAE-J1772
TM
connector. Each vehicle will now have
access to half of the power available through that
circuit.
3. If one vehicle disconnects or completes charging, the
other vehicle will have access to the full circuit power
after 15 seconds.

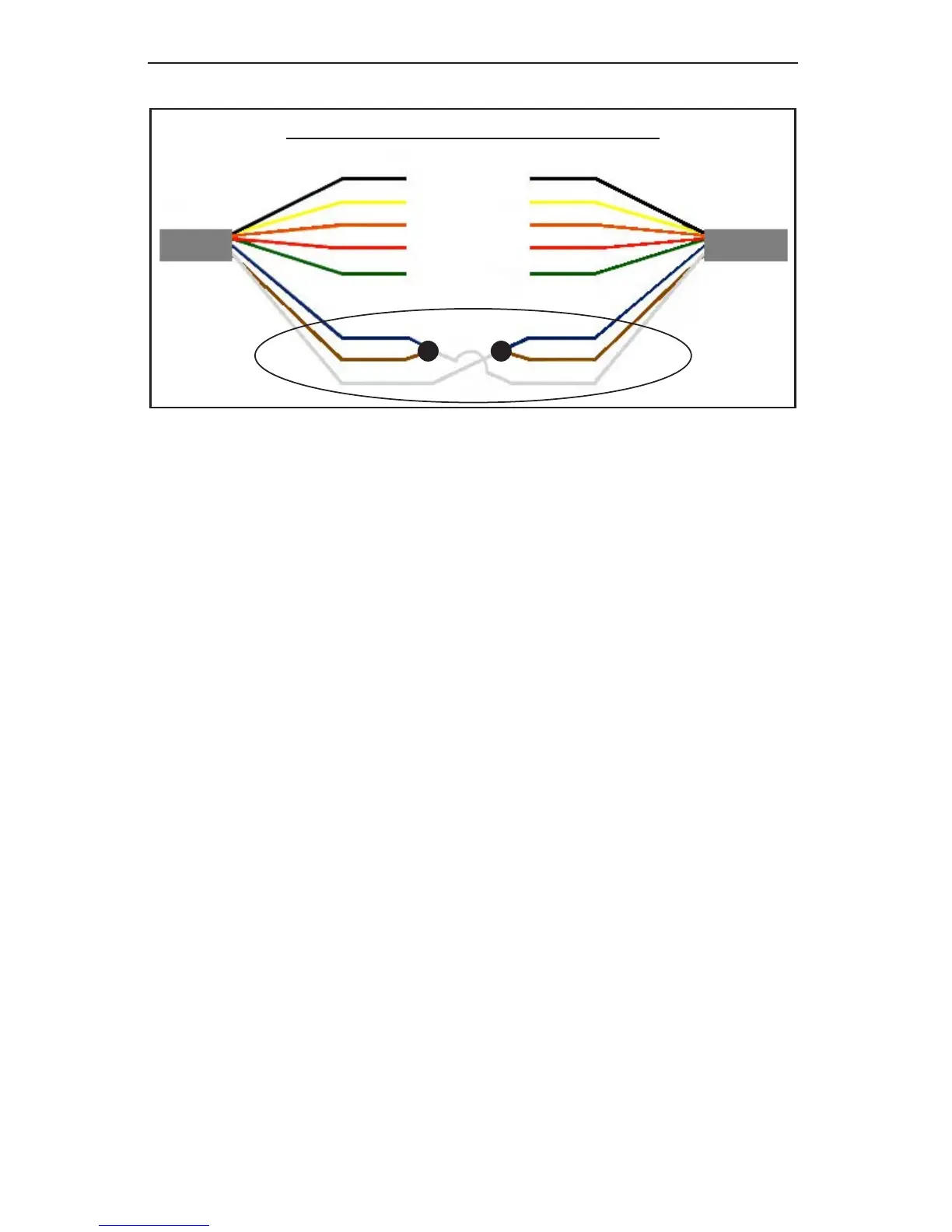

Figure 16: Share2
®
Do Not Connect Wires marked with an “X”
X
BLACK
YELLOW
ORANGE
RED
GREEN
(GROUND)
BLACK
YELLOW
ORANGE
RED
GREEN
(GROUND)
X
X
X
X
BLUE
BROWN
WHITE
BLUE
BROWN
WHITE
