USING THE PADLOCK
Insert Padlock into opening at the top of the
SAE-J1772
TM
Connector then close to secure.
A padlock with three keys is included with ClipperCreek EVSEs
when the connector style includes a lock hole. This rust-proof,
solid brass padlock is provided to secure the charge connector to
prevent the vehicle’s charge from being interrupted via removal.

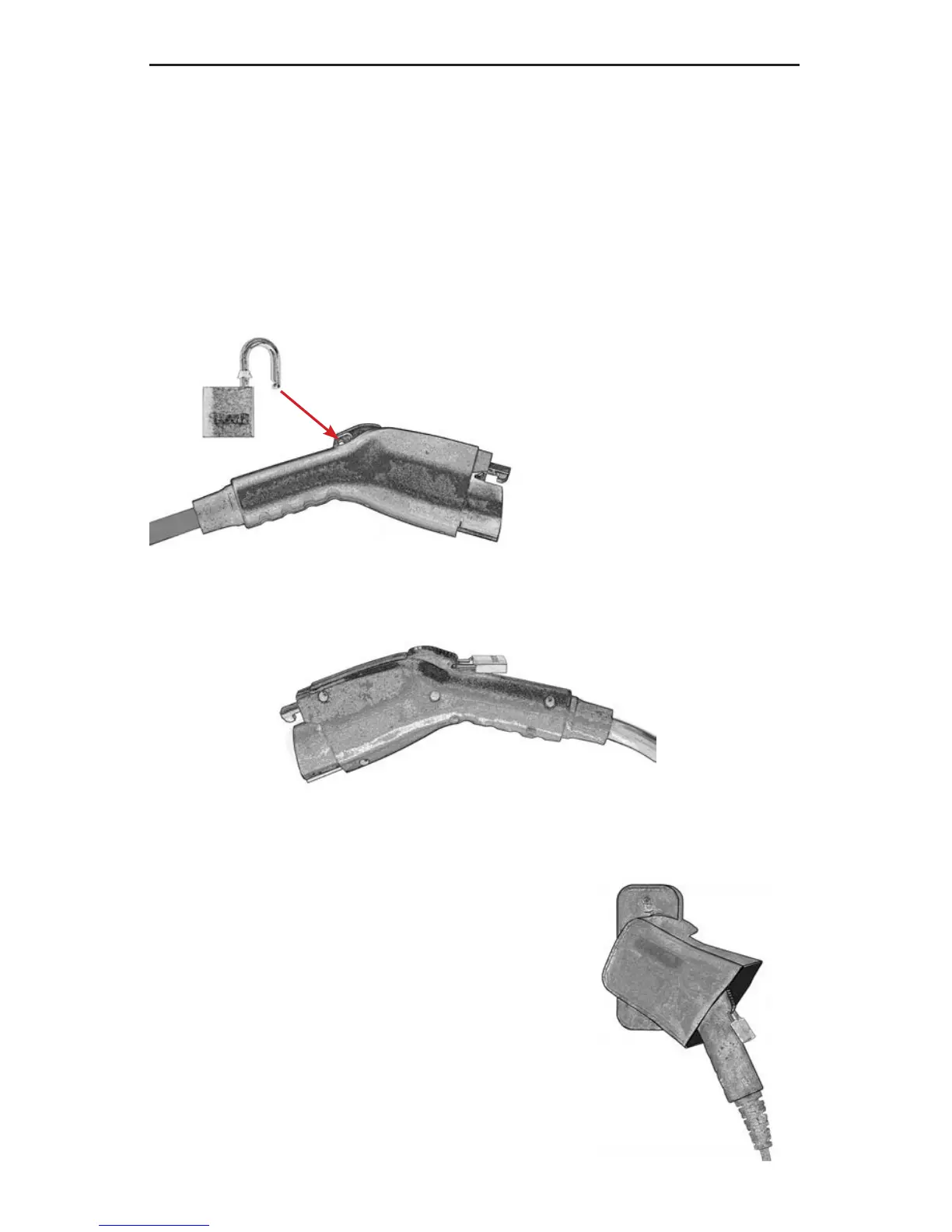

Figure 9: Locking the SAE-J1772
TM
Connector with Padlock
Included
Figure 10: Charge Connector Secured with Padlock which
Cannot be Removed from Vehicle without Key
Figure 11: Padlock Used in
Combination with Connector
Holster After Charging
NOTE: This padlock can also
be used in combination with
the provided connector holster
as a low cost access control
solution. Refer to Figure 11.
