ClipperCreek HCS - COSMOS Wiring Instructions; Serial and Digital Interface; Wiring Instructions

HCS User Manual
39
Table 4: COSMOS
®
Wiring Instructions
Wire Name Input/Output Interface Wire Color Ratings
Isolated Ground Input Black Ground
TxD Output Yellow
RxD Input Orange
Isolated 3.3-5V Input Red 3.3 - 5V DC, 20mA
Ground Output Green Ground
Load Management 0 Input Blue 5V DC
Load Management 1 Input Brown 5V DC
Open Collector Output Output White max:24V DC, 30mA
Serial
Interface
(Isolated
UART)
Digital
Interface
3.3 - 5V DC
WARNING: DO NOT STRIP WIRES THAT ARE UNUSED.
AVERTISSEMENT: NE PAS DÉPOUILLER LES FILS
INUTILISÉS.
Black Isolated Ground
Yellow TxD
Orange RxD
Red Isolated 3.3 - 5V DC
Green Ground
Blue Load Management 0
Brown Load Management 1
White Open Collector Output
Serial
Interface
(Isolated
UART)
Digital
Interface

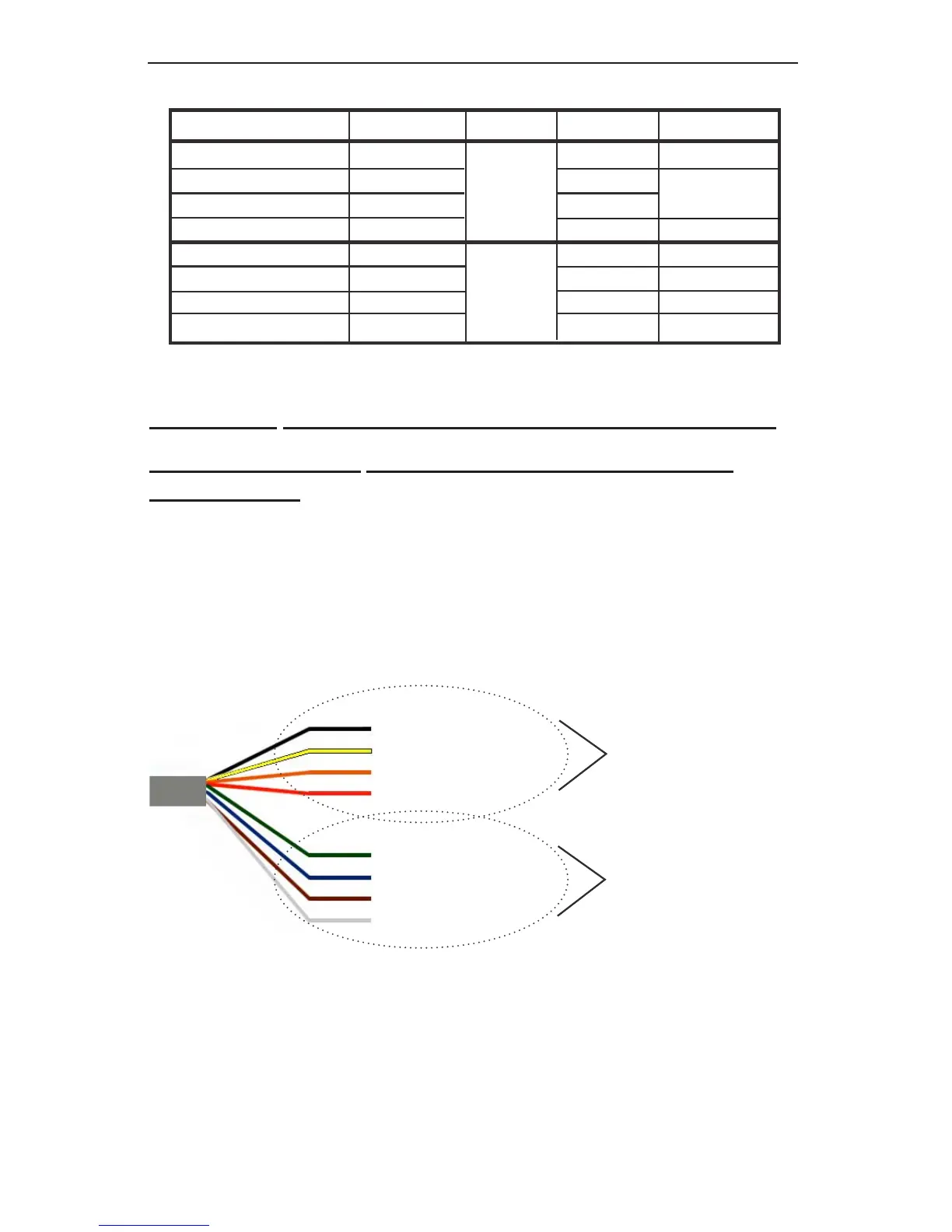

Figure 20: COSMOS
®
Serial and Digital Interface
