HCS User Manual
36

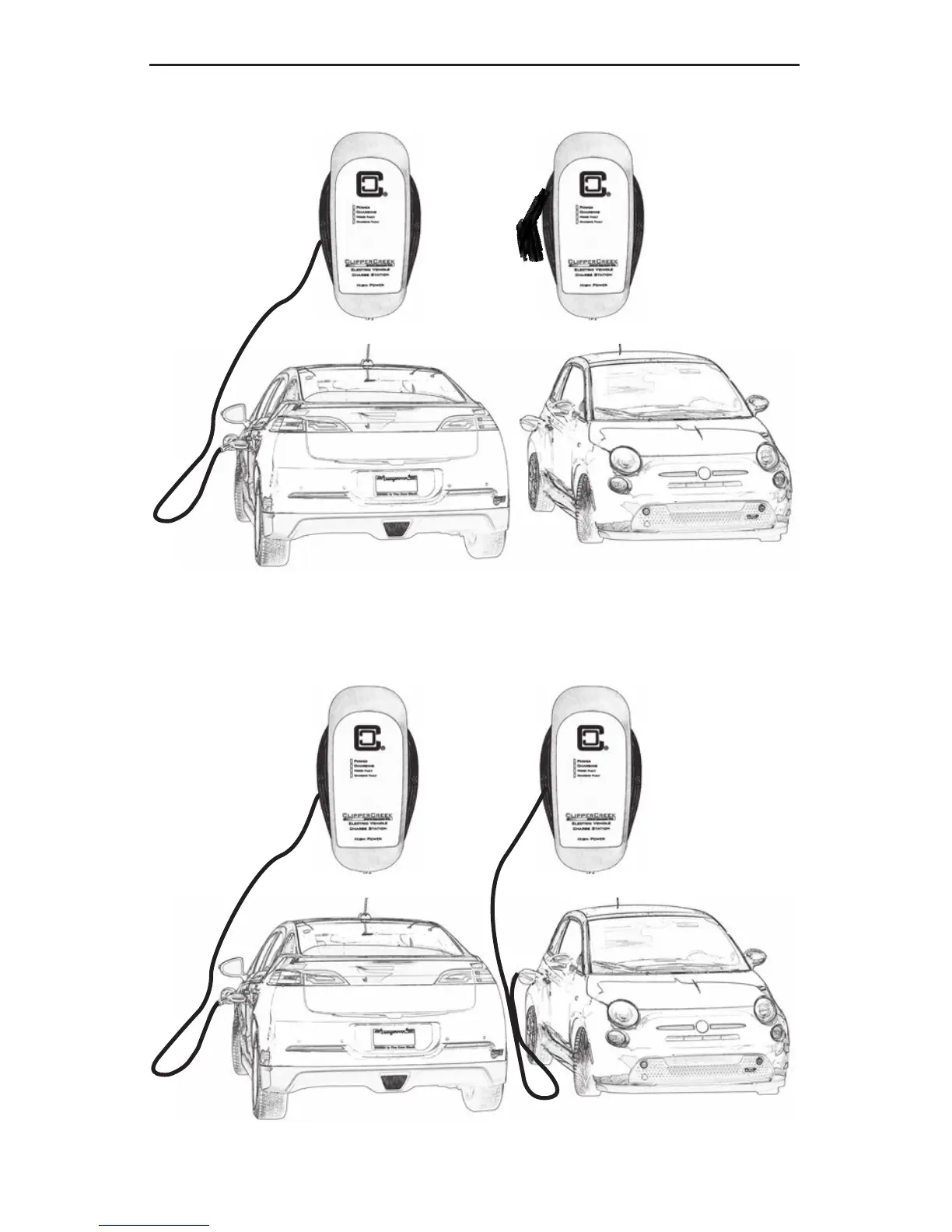

Figure 17: Share2
®
Connect Vehicle #1
HCS 1 HCS 2
Vehicle 1
Full Circuit Power Available (100%)
Vehicle 2
Not charging (0%)
HCS 1 HCS 2
Vehicle 1
Half Circuit Power Available (50%)
Vehicle 2
Half Circuit Power Available (50%)
Figure 18: Share2
®
Connect Vehicle #2
