Figure 15: ChargeGuard
TM
EX Wiring Instructions
Please refer to these instructions to operate the ChargeGuard
TM
EX
enabled HCS EVSE:
1. Connect the HCS EVSE to the vehicle with the SAE-
J1772
TM
connector.
2. Enable charging by using access control.
3. The “CHARGING” LED light will illuminate green on the
front panel, indicating the vehicle is now being charged.

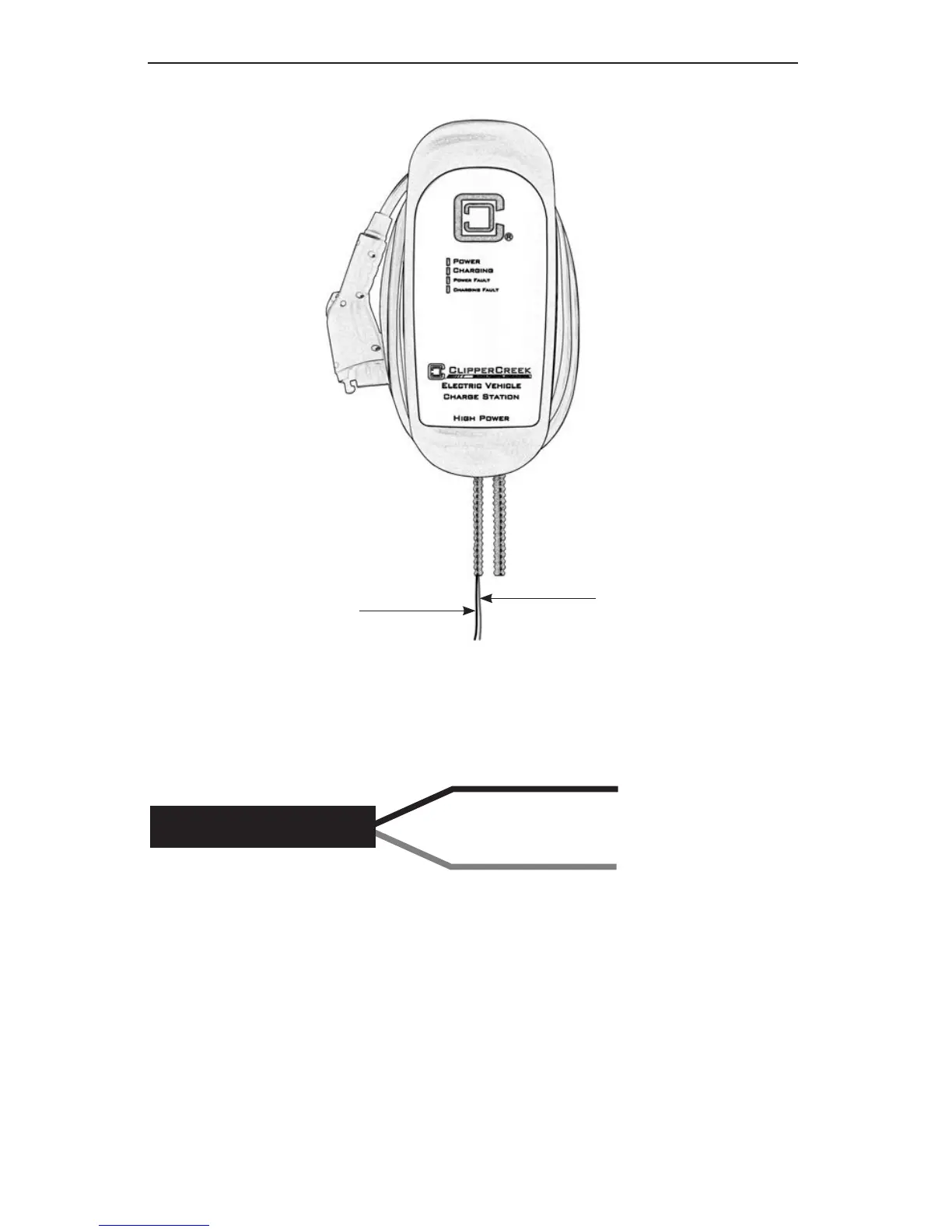

Figure 14: ChargeGuard
TM
EX
Yellow Wire
Orange Wire
Orange Wire
Yellow Wire
