5. Replace the door, pressing plate and springs as needed.
Note: Use caution when removing the door from the pump as the
pressing plate springs are not attached to the door or the pressing plate.

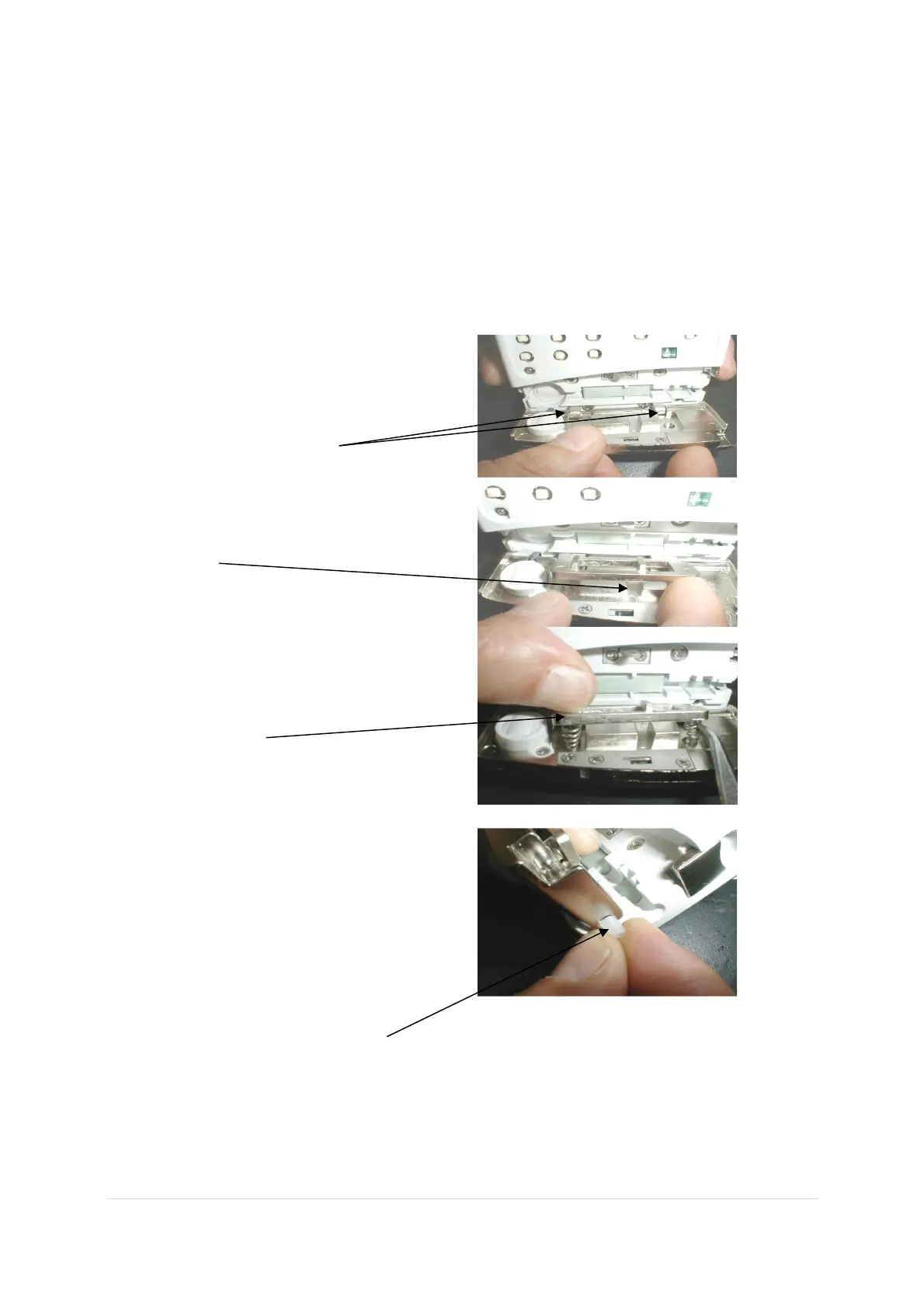

6. Reassemble the door, pressing plate and springs as follows:
7. Place the door between the two
visible parts of the hinge pin support
features on the chassis block.
hinge pin support features
8. Place the pressing plate into the
recess in the door.
door recess
9. Lift the pressing plate and place the
two door springs into their recesses
in the door and pressing plate.
door springs
10. If you are fitting a new door or
pressing plate ensure that Nylon
bushings are present. Place bushings
into the hinge holes of the new part.
6 bushings total are required for the
door, pressing plate, and hinge
support features.
Nylon bushing
To Next Page
