11. Push the hinge shaft from right to left
through the door, pressing plate and
the chassis block.
12. 12. Ensure the shaft has been inserted
all the way into the hinge. Ensure the
hinge pin does not interfere with the
Door air sensor wiring.
13. To obtain correct door hook
alignment, close the door. Make sure
the door does not rub on the door
hook. If it rubs, readjust the door
hook by bending it slightly. Operate
the door and readjust the door hook if
necessary until a click is heard from
the door catch.

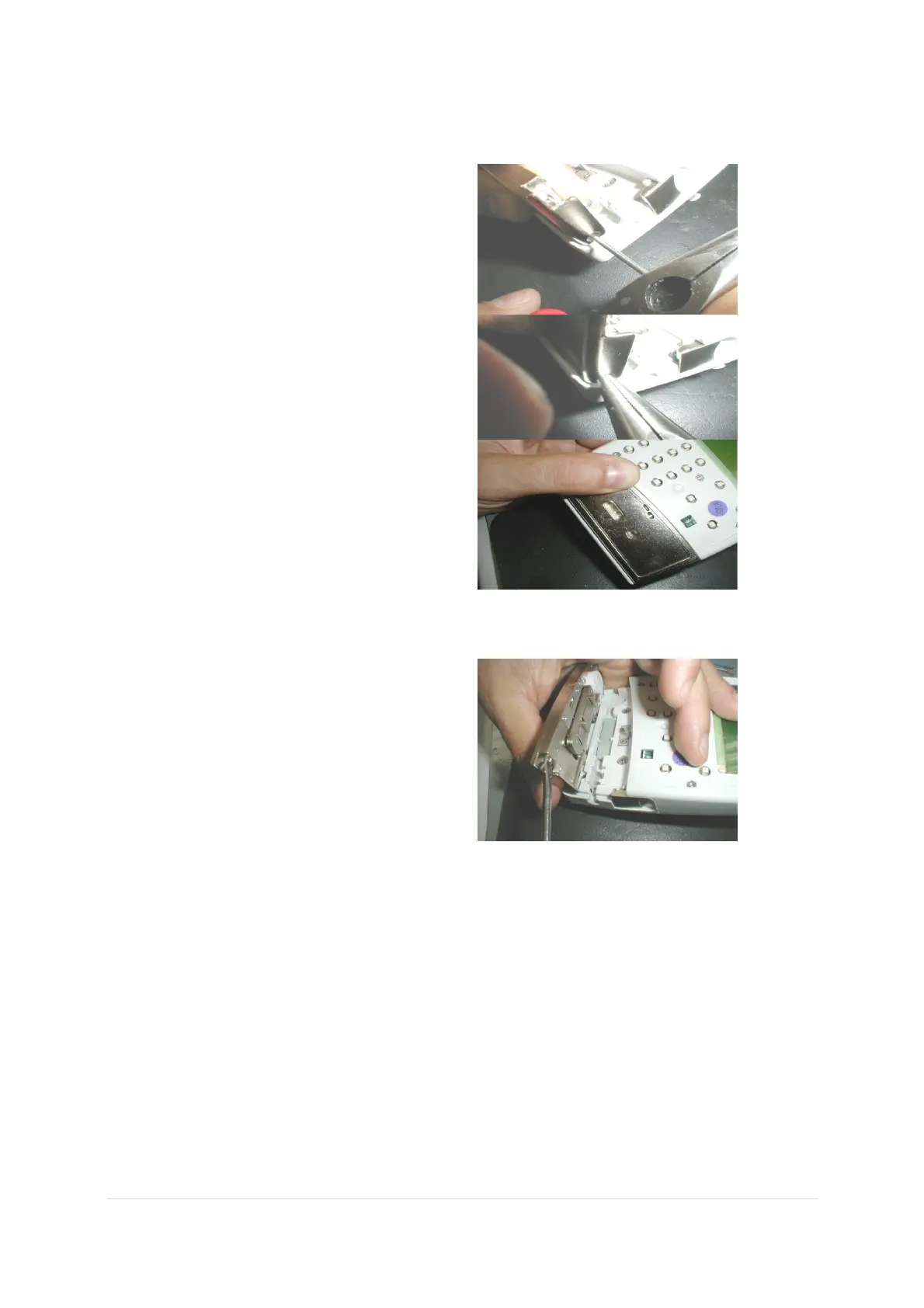

14. Verify the door releases when door
latch is ¾ open. Close the door. Pull
the door latch out about ¾ open and
verify that the door opens. If the door
does not open at this point, use a flat
tip screw driver to adjust the latch
mechanism by turning the screw as
shown in the picture. Repeat this
adjustment until the door operates as
specified.
15. Perform Operational Checklist and Performance Acceptance Test
2.5 Replacement of Pump Assembly
1. Separate the front and rear housing as described above.
2. Remove the pump door as described above.
3. Remove the flow direction label.
4. Remove the door hook screws (M2 x 2) and remove door hook.
