5-4 Chapter 5: Service 98-144390-A
5.1.4 Satellite profiles and VSAT modem profiles
A satellite profile with the GX Modem is already set up at the factory. You may add a
satellite profile with the generic modem for troubleshooting purposes.
Satellite profiles – New entry and Edit
Each satellite profile has one assigned VSAT modem profile.
To add or edit a satellite profile, do as follows:
1. Go to SETTINGS or Satellite profiles and click Edit or New entry.
2. Enter or edit the Satellite profile name.
3. Select a VSAT modem profile. The page automatically displays the parameters available
for the selected VSAT modem profile. For instructions how to add a VSAT modem
profile see VSAT modem profile – New entry and Edit on page 5-5.
4. Enter the data for the satellite, if any. For satellite data see www.lyngsat.com.
5. Click Apply to save the settings for the satellite profile.
VSAT modem profiles
On the page VSAT modem profiles you create, edit or delete VSAT modem profiles. The
VSAT modem profile GX Modem is already set up at the factory. It is useful for
troubleshooting to create a VSAT modem profile with the Generic modem.

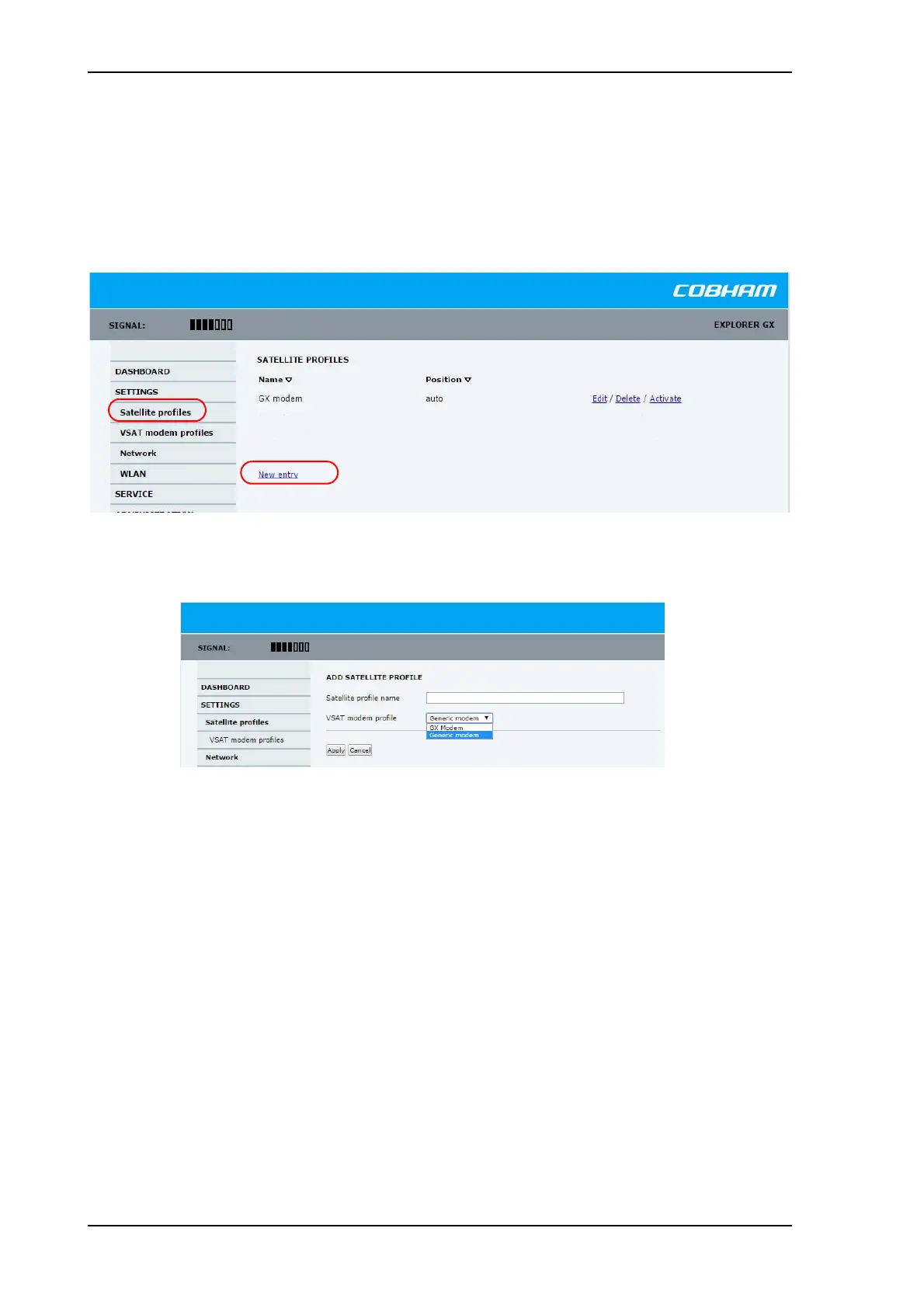

Figure 5-3: Web interface: SETTINGS - list of satellite profiles (example)
Figure 5-4: Web interface: SETTINGS, Satellite profiles — new entry (example)
