3-8 Chapter 3: Assembly & start up 98-144390-A
10.Press the OK button. This sends a command to the modem to allow the transmission of
data.
11.When the connection is established, the display shows ACQUISITION OK.
12.For first-time setup connect a PC to LAN port 1 and continue with the section
Connection to the web interface on page 4-1.
13.For daily use you can use the keypad and display, read more in section Keypad and
display menus on page 4-15.
3.4 To stow the antenna
Set the antenna into the stow position before it can be packed into the transport cases.
1. Make sure the power is switched off.
2. Align the antenna positioner with the enclosure.
3. Set the elevation to 90 degrees.
3.5 To disassemble and pack the antenna
1. Press the ON/OFF button on the unit to power it off.
2. Remove all cables.
3. Dismantle the four reflector panels.
4. Remove the RF assembly from the antenna positioner.
5. Put the parts into the two transport cases.

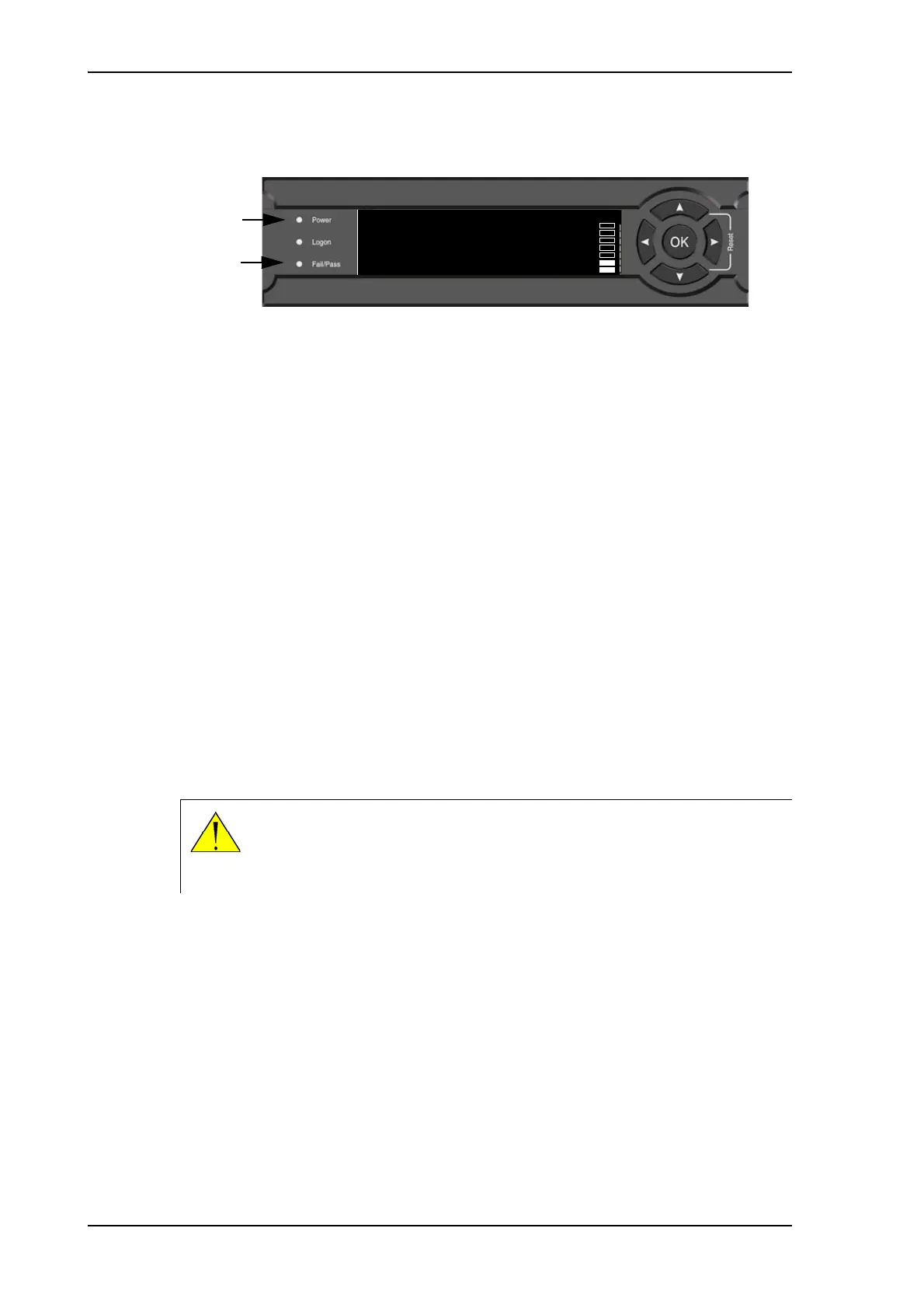

Figure 3-14: LED after start up (detailed, example)
0DLQ1$9*+0'01(72./$1±
$&48,6,7,212.
6$7:5;/+7;0$5
WARNING! The electronics enclosure may get very hot (temperatures
above 70° C) in hot weather conditions. Do not move the unit! Touching the
hot unit may cause serious bodily harm. Wait until the unit has cooled down to
temperatures below 50° C.
