6. As the bolt pulls its way in, the sides of the anchor section are forced outwards, gripping the
surrounding surface.

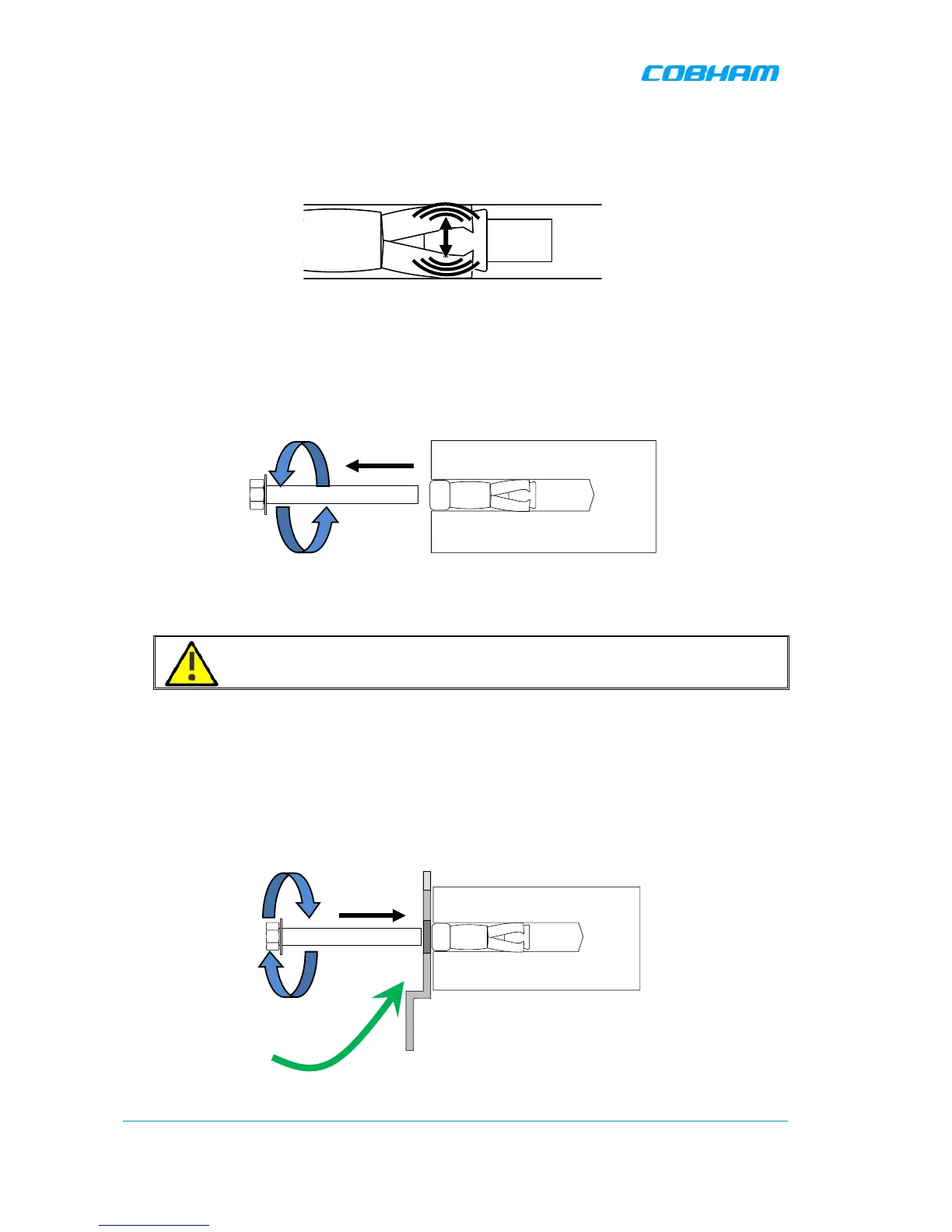

Figure 2-10: Anchor Sides Pushed Outwards.
7. Once all four fixings are in place, carefully withdraw the four bolts.
Figure 2-11: Withdraw Bolts.
2.3.3.3 Mount the Repeater
CAUTION!! It is recommended that two people lift the repeater since (depending upon the
configuration) the repeater weighs between 20 and 38 kg (44 and 84 lb)
To mount the repeater
• Align repeater with the four fixings. Great care should be exercised here as the repeater is very
heavy. (A suitably rated heavy duty scissor lift table/trolley may be suitable for this operation.)
• Once repeater is held in the chosen position, carefully insert the fixing bolts through the
mounting lugs of the Repeater and into the sleeve/anchor sections of the fixing in the wall and
tighten the bolts.
•
The repeater needs to be mounted tightly to eliminate vibration.
Figure 2-12: Mount Repeater
Align Repeater and
Secure Bolts
