COBHAM Satcom SAILOR XTR GX-R2 User Manual

98-175666-D Appendix C: Miscellaneous C-7
Dual modem operation
SAILOR XTR generic profile
The generic satellite profile must be configured with all the satellite parameters and
LNB/BUC LOs according to the Comtech SLM-5650 modem configuration. See example
below.
In the example above, the BUC reference signal is set to use the 10 MHz reference clock
generated by the modem on its Tx connector.
The antenna will use its built-in narrow-band 300 KHz tracking receiver to lock on the
satellite signal.
The generic satellite profile is set to use RSSI to verify modem RX Lock.

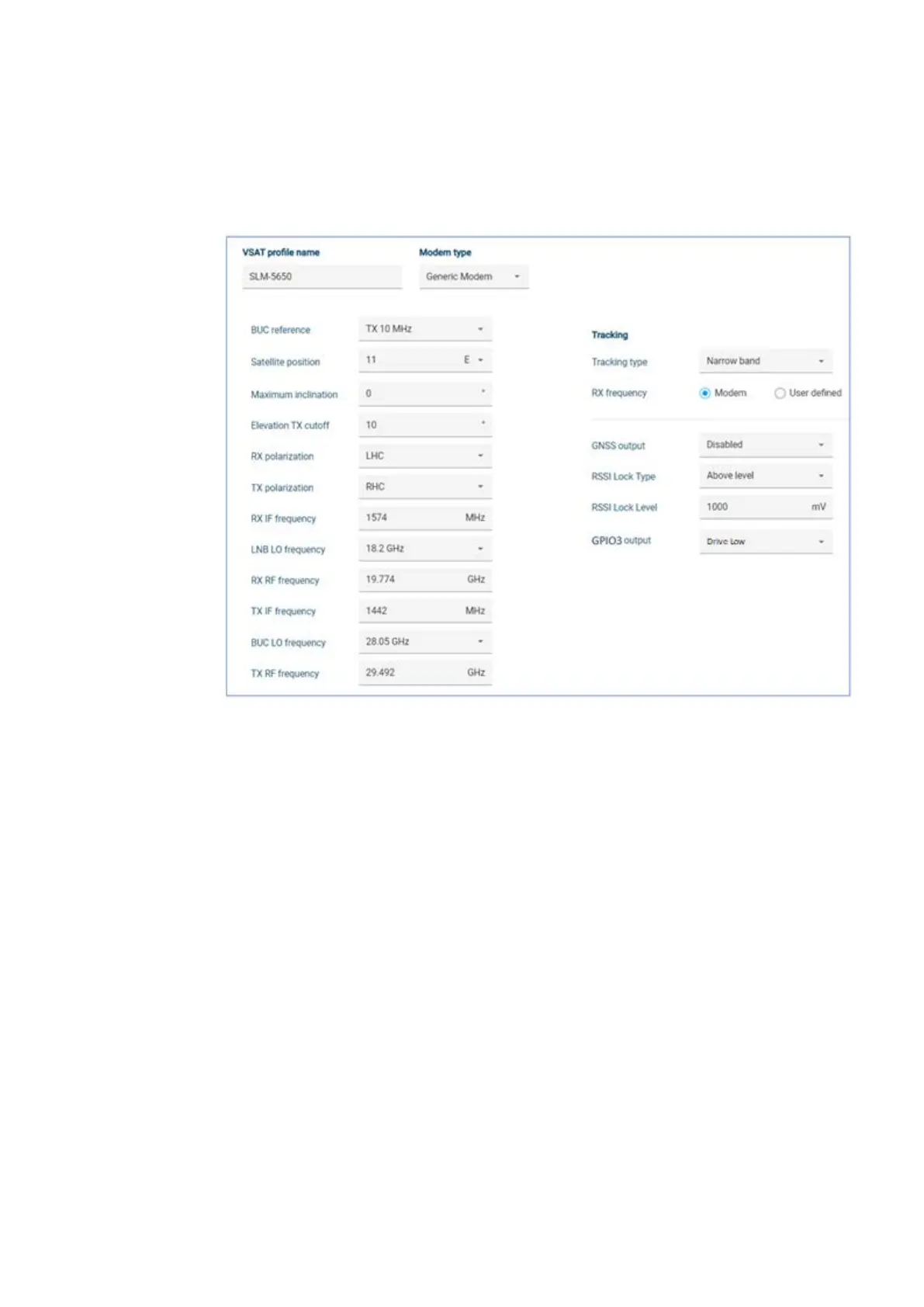

Figure C-2: Generic VSAT profile
