COBHAM Satcom SAILOR XTR GX-R2 User Manual

98-175666-D vi
SAILOR 600 XTR GX-R2

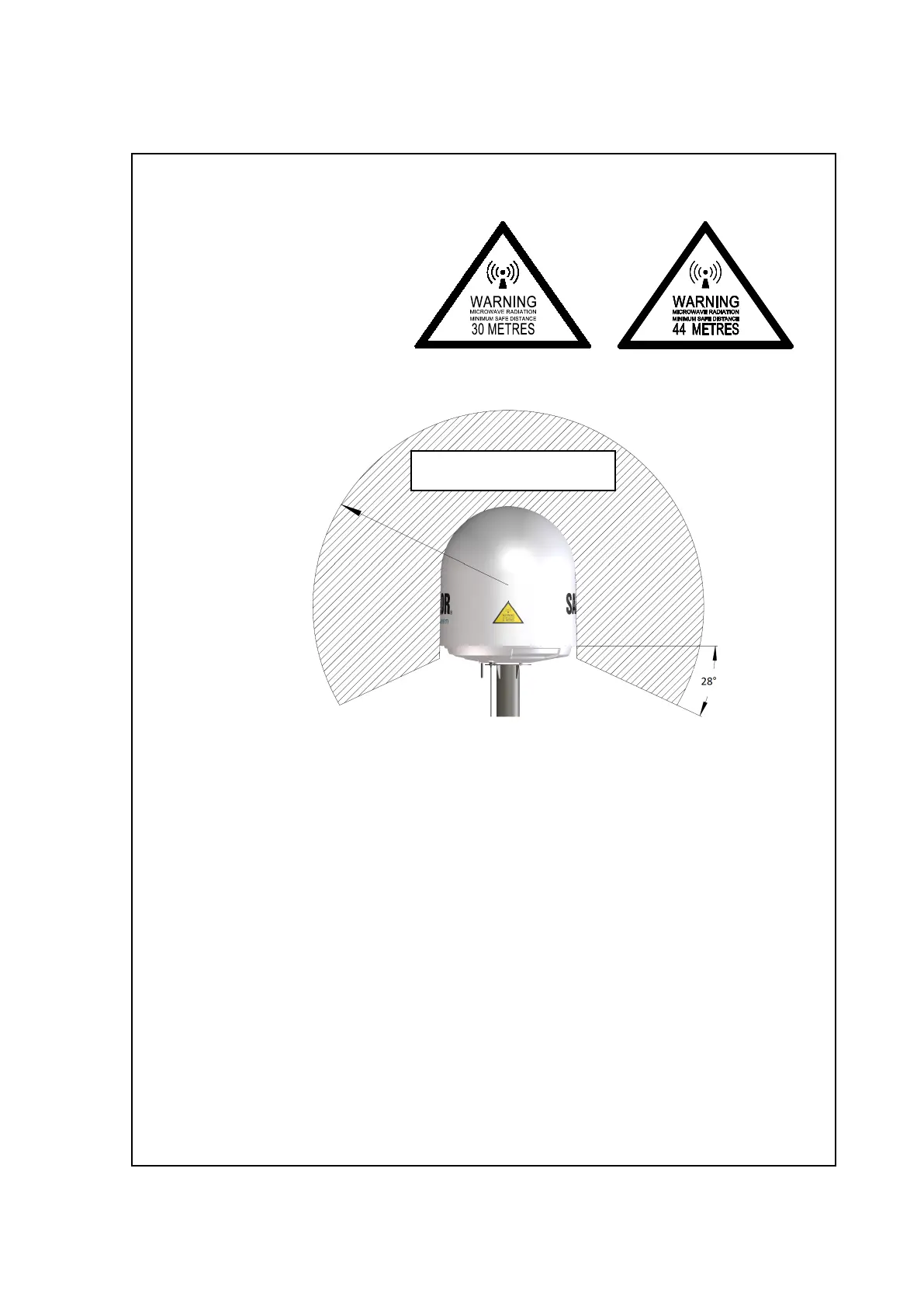

The minimum safety distance to
the antenna reflector on the
focal line is 30 m for SAILOR 600
XTR GX-R2 4.5W, and 44 m for
SAILOR 600 XTR GX-R2 9.0W,
based on a radiation level of
10 W/m
2
. No hazard exists >28°
below the antenna’s mounting
plane. Refer to the drawing below.
No-transmit zones
In order to protect personnel no-transmit zones can be programmed. For further
information see Blocking zones – azimuth and elevation on page 2-6.
Distance to other equipment
Do not move the Above Deck Unit closer to radars than the minimum safe distance
specified in section Interference from radar, GPS/GNSS, L-band and other transmitters on
page 2-14 — it may cause damage to the Above Deck Unit.
Compass Safe Distance:
SAILOR 1000 XTR GX-R2 4.5W and 9.0W antenna (ADU): min. 150 cm (IEC 60945
SAILOR 600 XTR GX-R2 4.5W and 9.0W antenna (ADU): min. 150 cm (IEC 60945).
SAILOR 7516A BDU (Below Deck Unit): min. 30 cm (IEC 60945).
SAILOR 7023A GMU (GX Modem Unit): min. 40 cm (IEC 60945).
SAILOR 7523A GMU (GX-R2 Modem Unit): min. 40 cm (IEC 60945).
Service
User access to the interior of the BDU is prohibited. Only a technician authorized by
Cobham Satcom may perform service - failure to comply with this rule will void the
warranty. Access to the interior of the Above Deck Unit is allowed. Replacement of certain
MICROWAVE RADIATION
