Electrical Information
DataMan 260 Discrete I/O Connector
The I/O breakout cable (CCBL-05-01) provides access to trigger and high-speed outputs. You can clip unused wires
short or use a tie made of non-conductive material to tie them back. For RS-232, use the Power Supply return path for
ground.

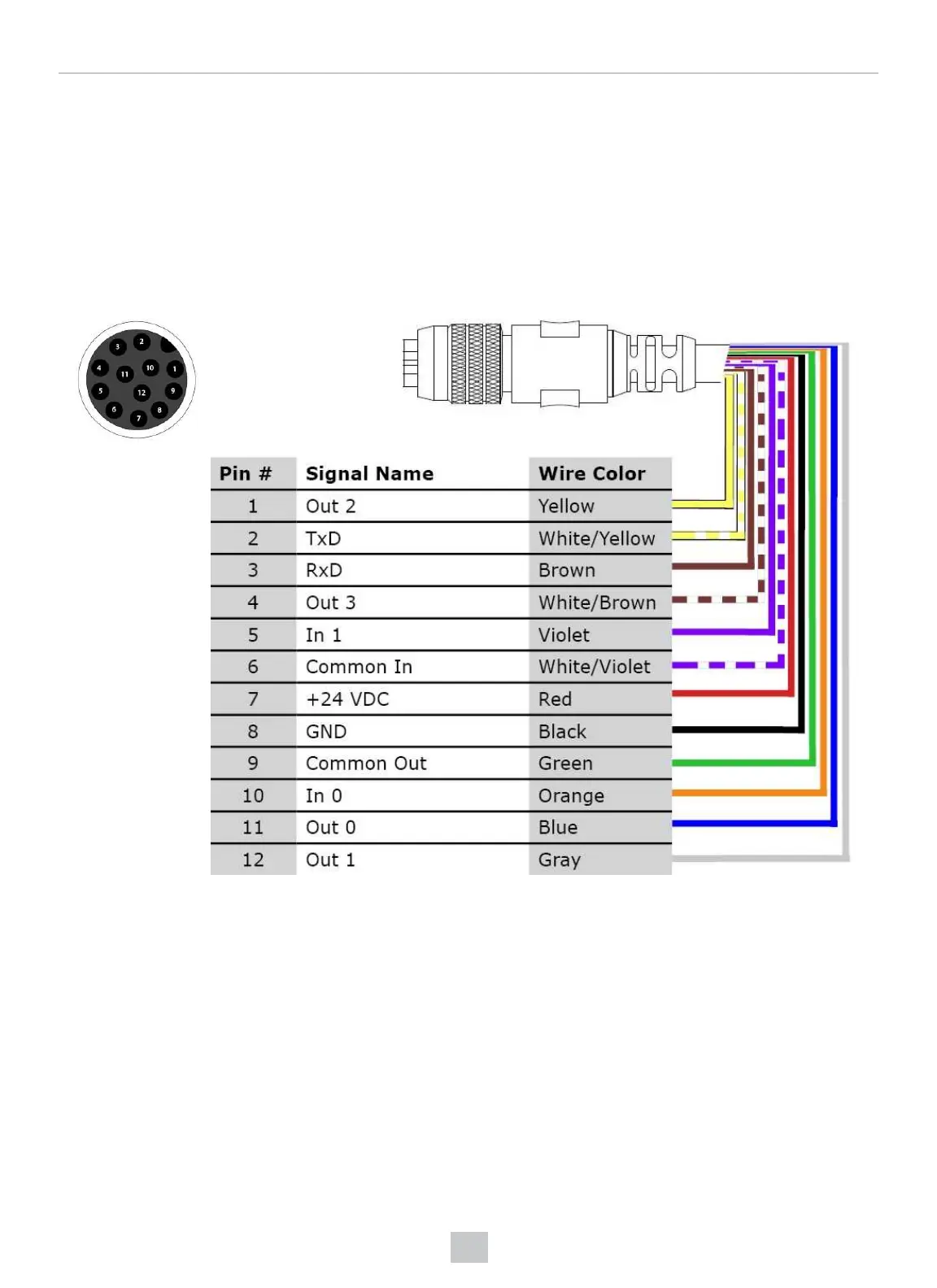

The figure on the left shows the plug on the device.
Signal: 24 VDC Ethernet Model
