DataMan 503 Readers Reading Distances and Field of View
The following scan maps show the reading distance and field of view charts for the various lenses that can be used with
the DataMan 503 reader.

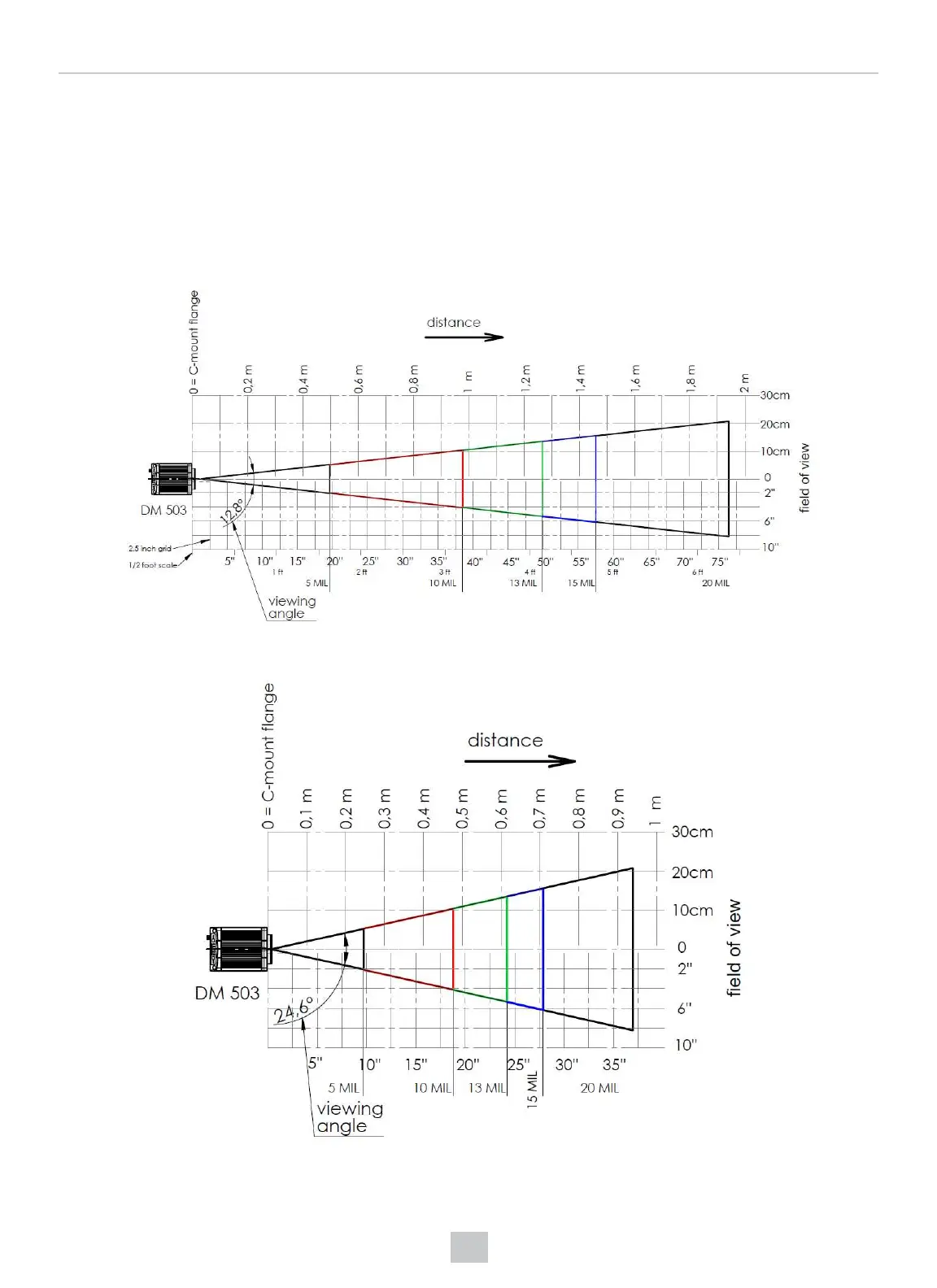

Scan Map for DataMan 503 Series Readers Using a 16 mm Lens Module
The following map shows the reading distance and field of view charts for the DataMan 503 reader with a 16 mm lens for
1-D codes. The minimum 1-D resolution is at 1.2 pixels per module.
The following map shows the reading distance and field of view charts for the DataMan 503 reader with a 16 mm lens for
2-D codes. The minimum 2-D resolution is at 2.5 pixels per module.
