DataMan 503 External Light Control

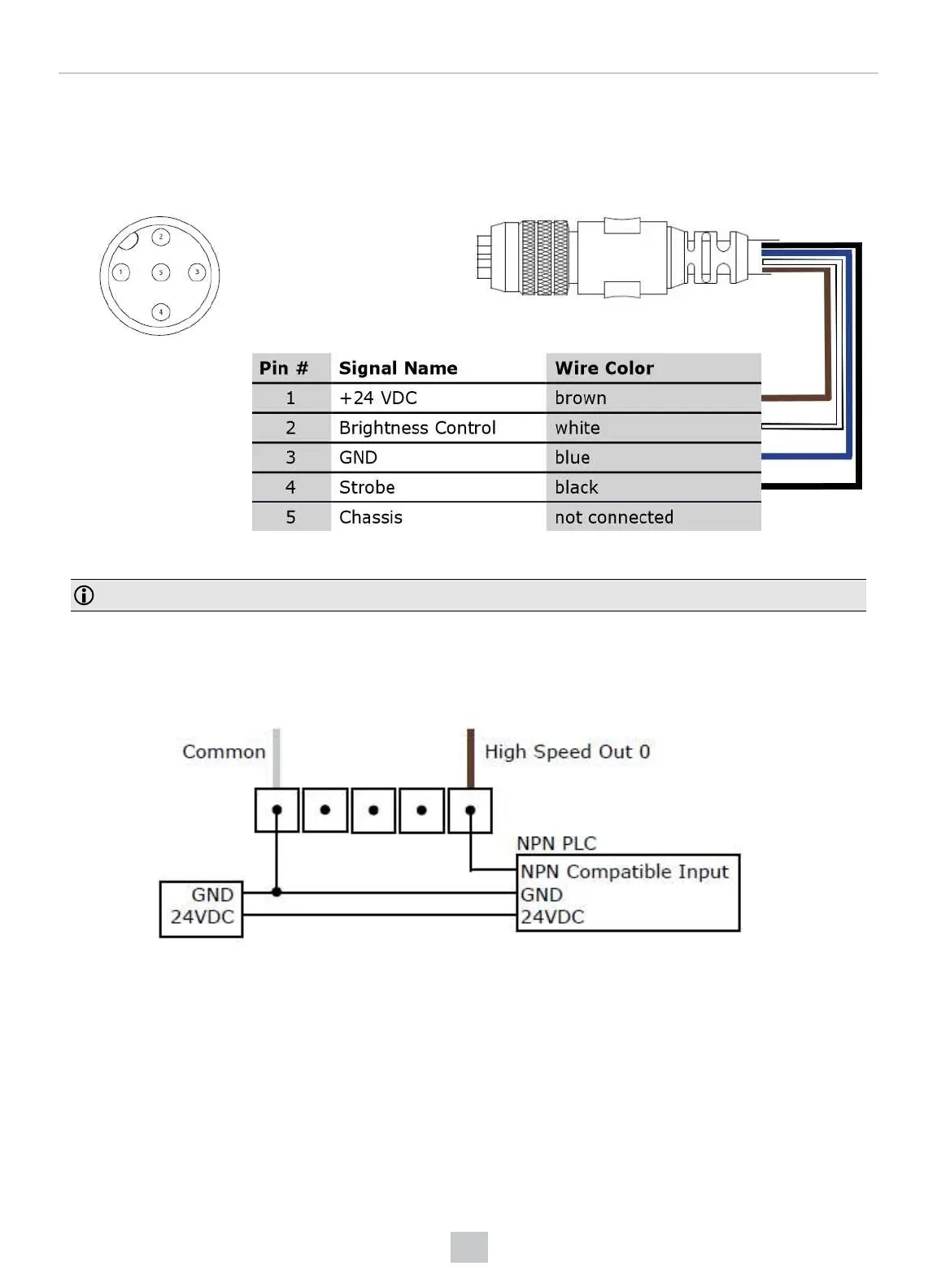

A 4-pin cable (CCB-M12x4MS) is provided for the external light control.
The drawing on the left shows the socket on the device. This socket does not work if the external light is connected to
one of the outputs on the I/O cable.
Current load: average: 500 mA, peak: 1 A (max. 100 µs).
Note: This socket does not work if the external light is connected to one of the outputs on the I/O cable.
DataMan 503 High-Speed Output Wiring
To connect to an NPN-compatible PLC input, connect Output 0, Output 1, Output 2, or Output 3 directly to the PLC input.
When enabled, the output pulls the PLC input down to less than 3 VDC.
To connect to a PNP-compatible PLC input, connect Output 0 or Output 1 directly to the PLC input. When enabled, the
output pulls the PLC input up to greater than 21 VDC.
