Cognex DataMan 70 - Scan Map for Dataman 300 and 360 Series Readers Using a 16 MM Lens

Distances in mm DM300, DM360 DM302/303, DM362/363
250 106 171
500 207 332

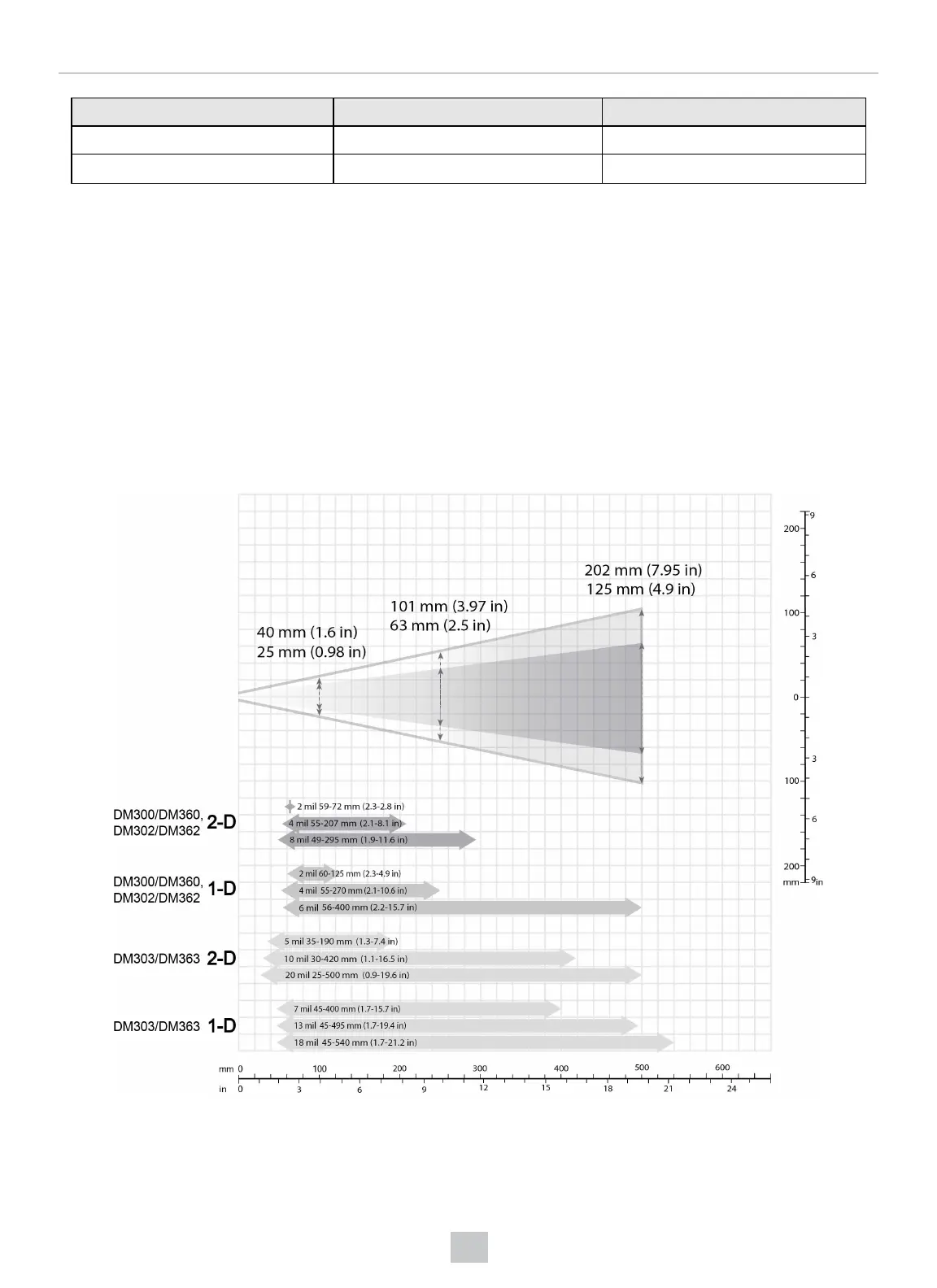

Scan Map for DataMan 300 and 360 Series Readers Using a 16 mm Lens
This map shows the field of view of the DataMan 300/360, DataMan 302/362 and DataMan 303/363 readers with a 16
mm lens.
The FoV values are shown as follows:
l outer: DM302/362, DM303/363
l inner: DM300/360
The reading distances for the DM300/360 and DM302/362 readers are the same. The DM303/363 features a higher
resolution and more pixels in about the same sensor size.
To make sure that your DM303/363 reader is able to decode at the minimum reading distances, use the reader in
combination with the extension kit or without the front cover.
The following table shows the Field of View widths in mm at various distances.
134
Optics and Lighting
