DataMan 300 and 360 Series Readers Reading Distances and
Field of View
The DataMan 300 and 360 series readers: DataMan 300/360, DataMan 302/362, and DataMan 303/363 have different
fields of view because of the different regions of the sensor used by each reader.
Scan Map for DataMan 300 and 360 Series Readers Using a 10.3 mm Lens

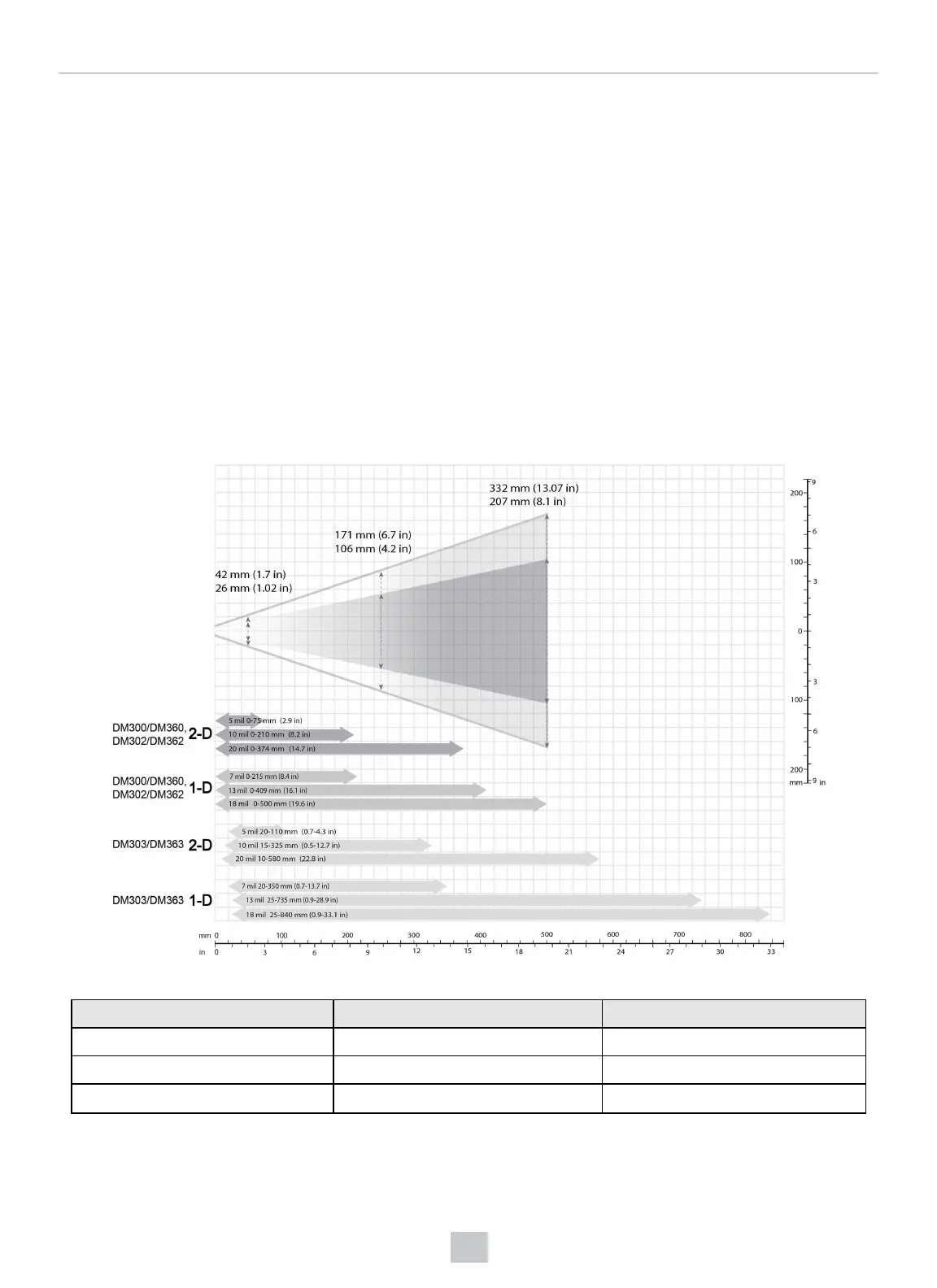

The map below shows the field of view of the DataMan 300/360, DataMan 302/362 and DataMan 303/363 readers with a
10.3 mm lens (with or without a liquid lens).
The FoV values are shown as follows:
l outer: DM302/362, DM303/363
l inner: DM300/360
The reading distances for the DM300/360 and DM302/362 readers are the same. The DM303/363 features a higher
resolution and more pixels in about the same sensor size.
The following table shows the Field of View widths in mm at various distances.
Distances in mm DM300, DM360 DM302/303, DM362/363
50 26 42
100 46 74
150 66 106
133
