Scan Map for DataMan 300 and 360 Series Readers Using a 25 mm Lens

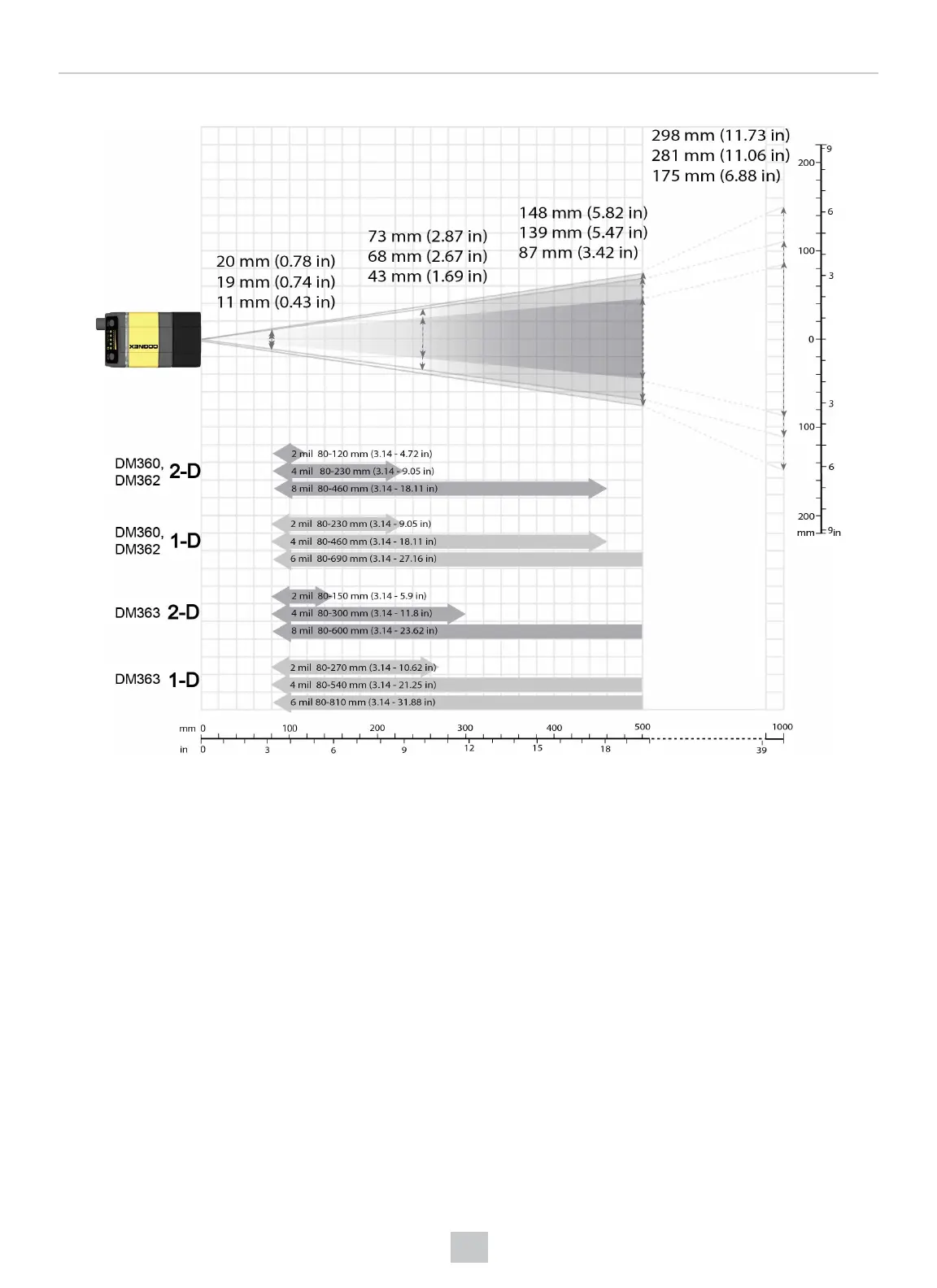

This map shows the field of view of the DataMan 300/360, DataMan 302/362, and DataMan 303/363 readers with a 25
mm lens.
The FoV values are shown as follows:
l outer: DM302/362, DM303/363
l inner: DM300/360
The reading distances for the DM300/360 and DM302/362 readers are the same. The DM303/363 features a higher
resolution and more pixels in about the same sensor size.
