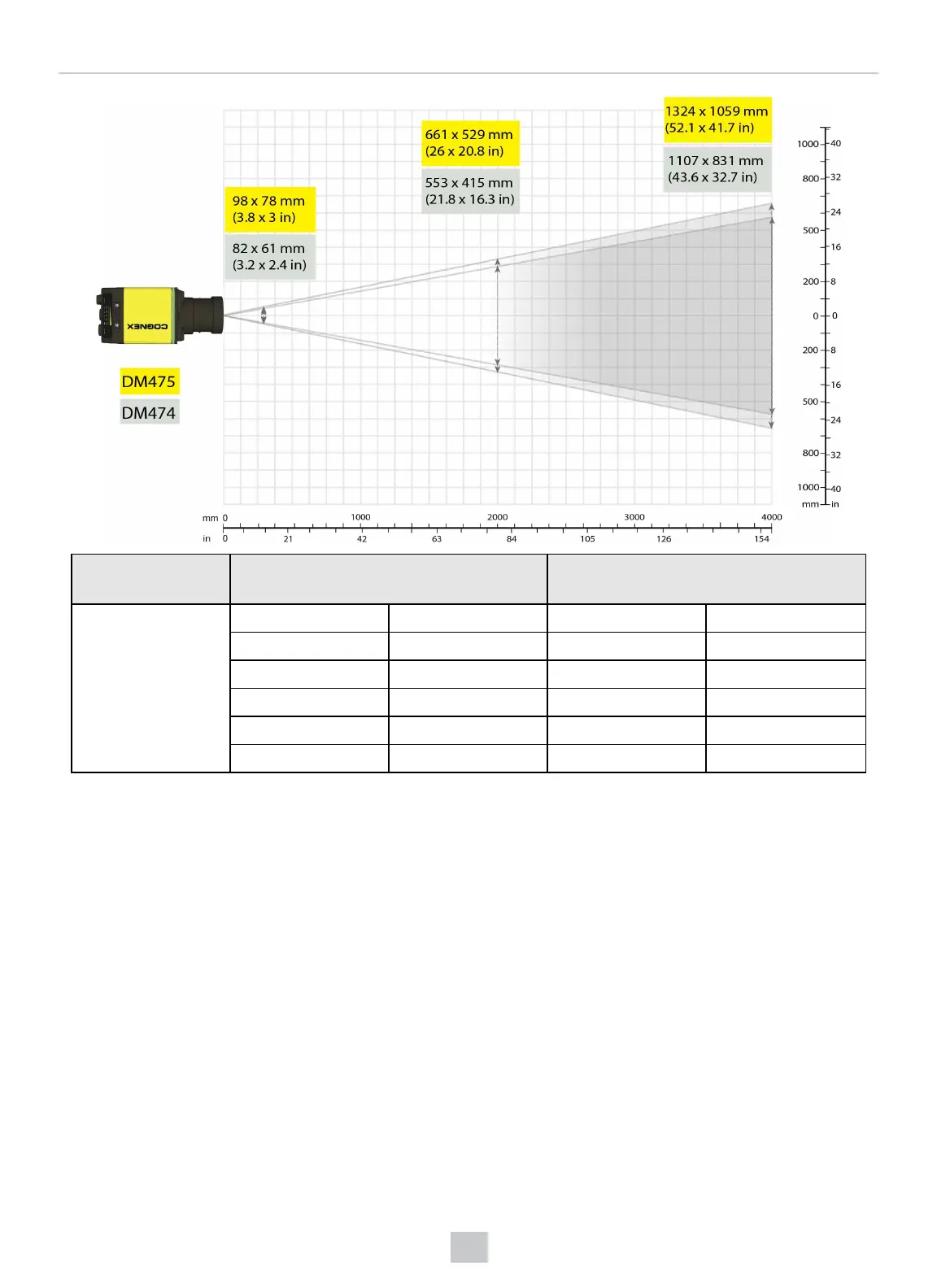

Device Distances in mm / 1Dmin code

24 mm HSLL

Distances in mm / 2Dmin code

24 mm HSLL

DM47x

1029 6 MIL 709 6 MIL

1370 8 MIL 944 8 MIL

1711 10 MIL 1178 10 MIL

2223 13 MIL 1530 13 MIL

2564 15 MIL 1764 15 MIL

3417 20 MIL 2351 20 MIL

145

Optics and Lighting
