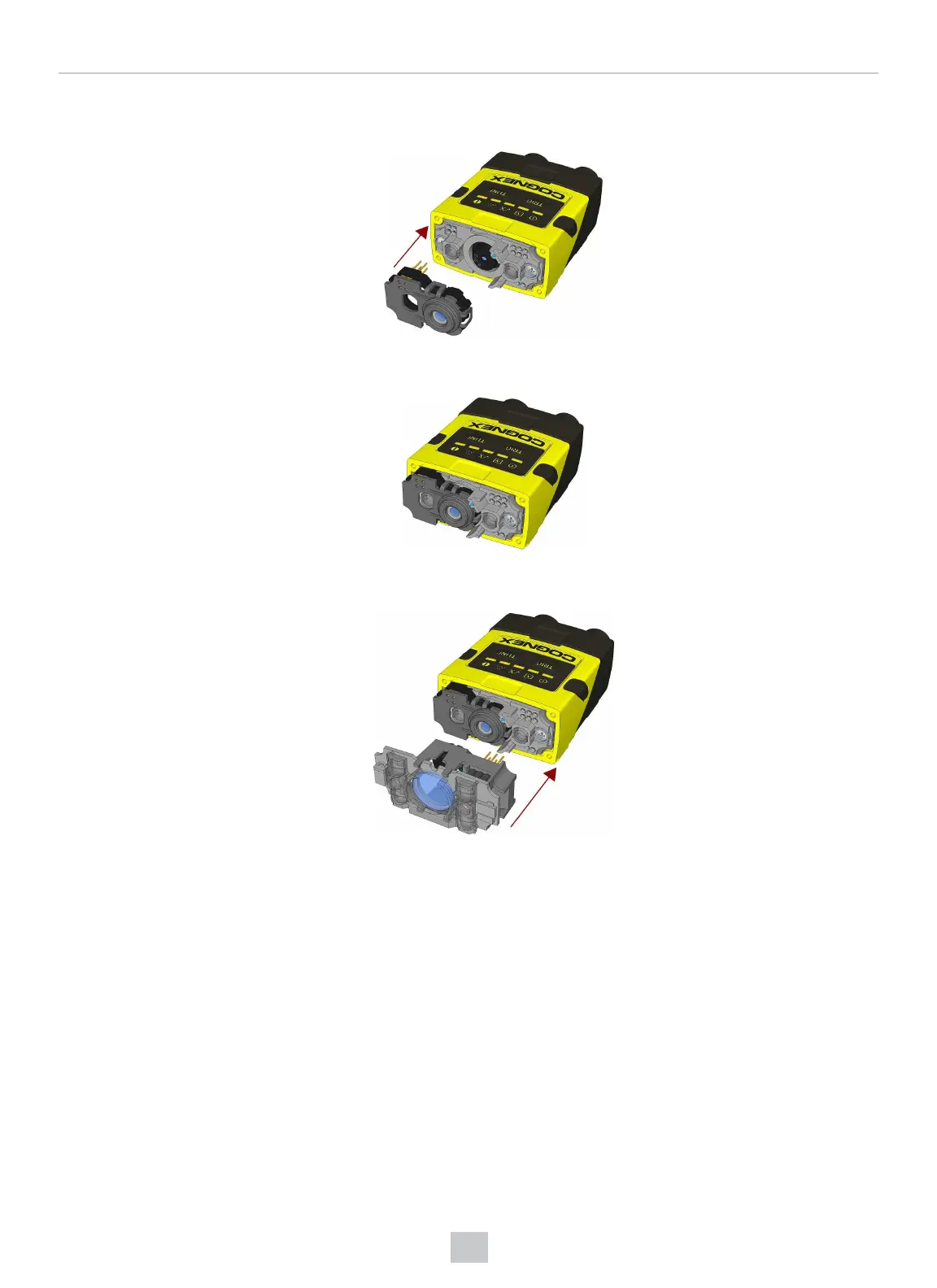

5. Attach the liquid lens accessory by aligning the 2x2 connectors of the liquid lens with the 2x2 sockets on the

optics mount.

6. Press the liquid lens onto the imager lens until you reach the stop.

7. Reattach the illumination.
