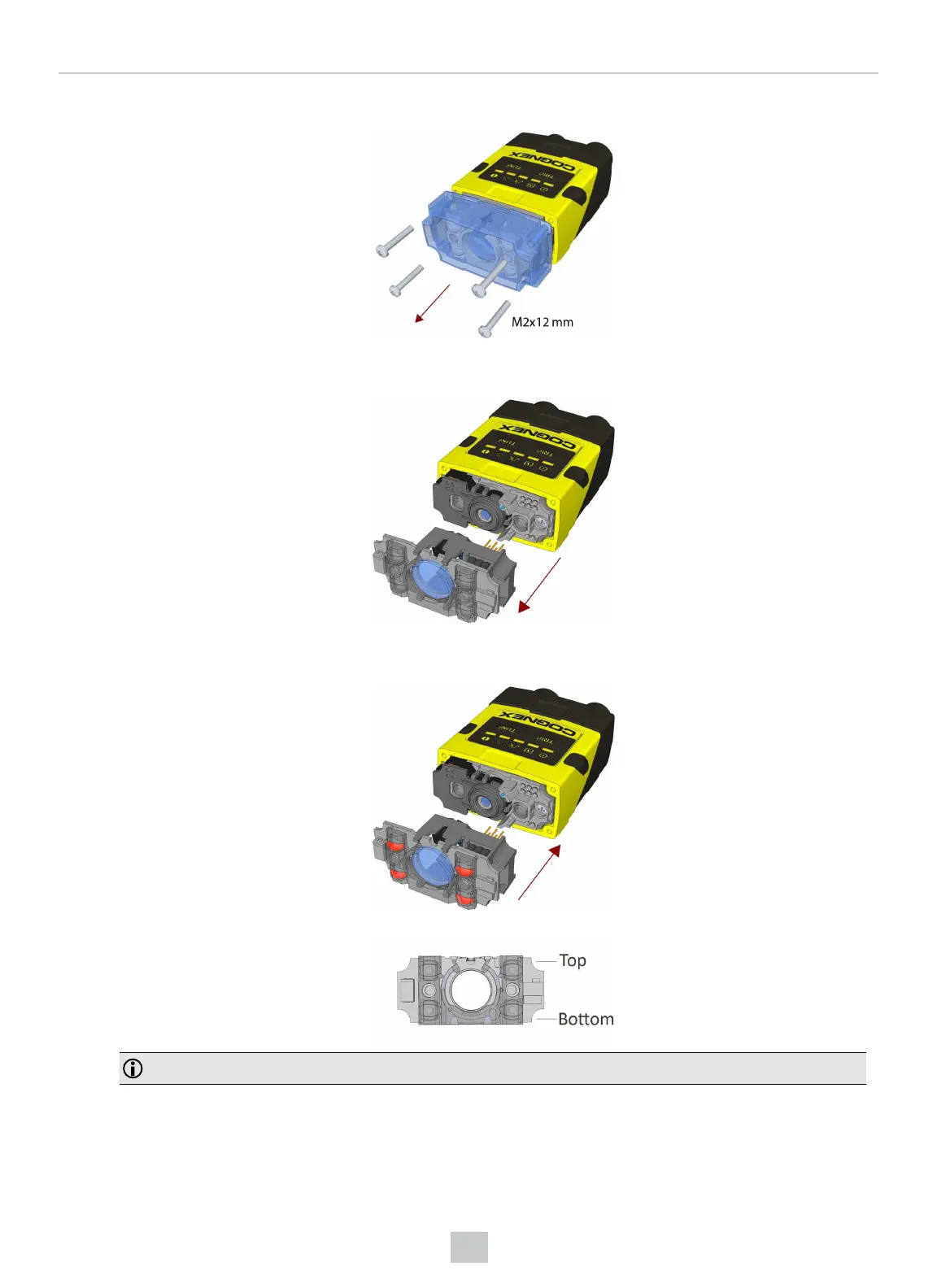

1. Remove the front cover: unscrew the four screws and take off the LEDcover.
2. Remove the illumination module.
3. Attach a new color illumination module.
Note: Make sure you attach the illumination with the right orientation.
