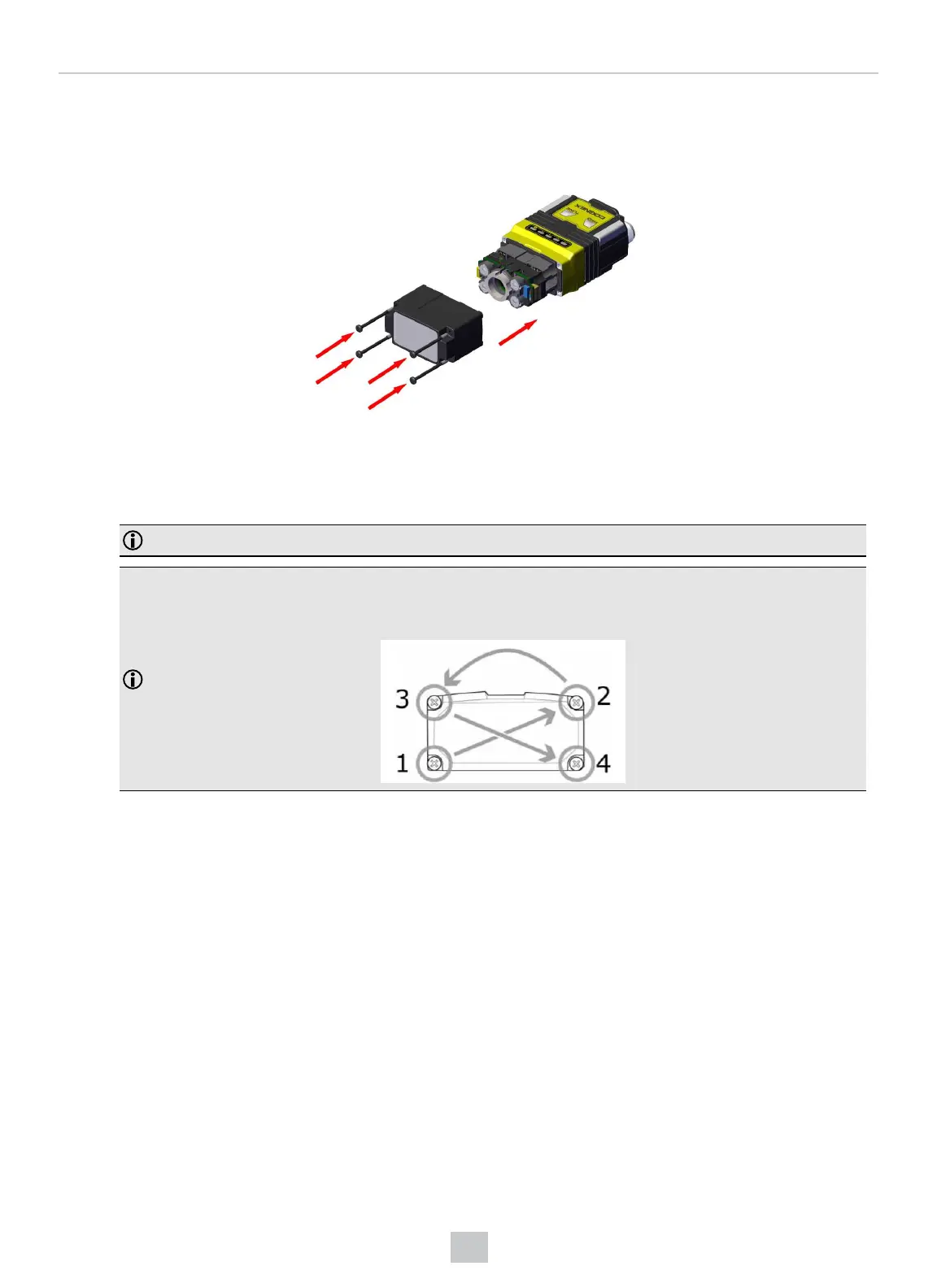

6. Attach the 16 mm lens front cover.
Note: The rib in the front cover must be oriented to the top side.
Note:
Observing the tightening sequence below, tighten all four M2 x 12 mm Phillips Pan screws to 16 Ncm using
a torque wrench.
DataMan 280 Installing High Speed Liquid Lens
This section shows the process of installing a liquid lens onto the DataManModel Number with a 6.2 mm lens.
47
Mechanical Information
