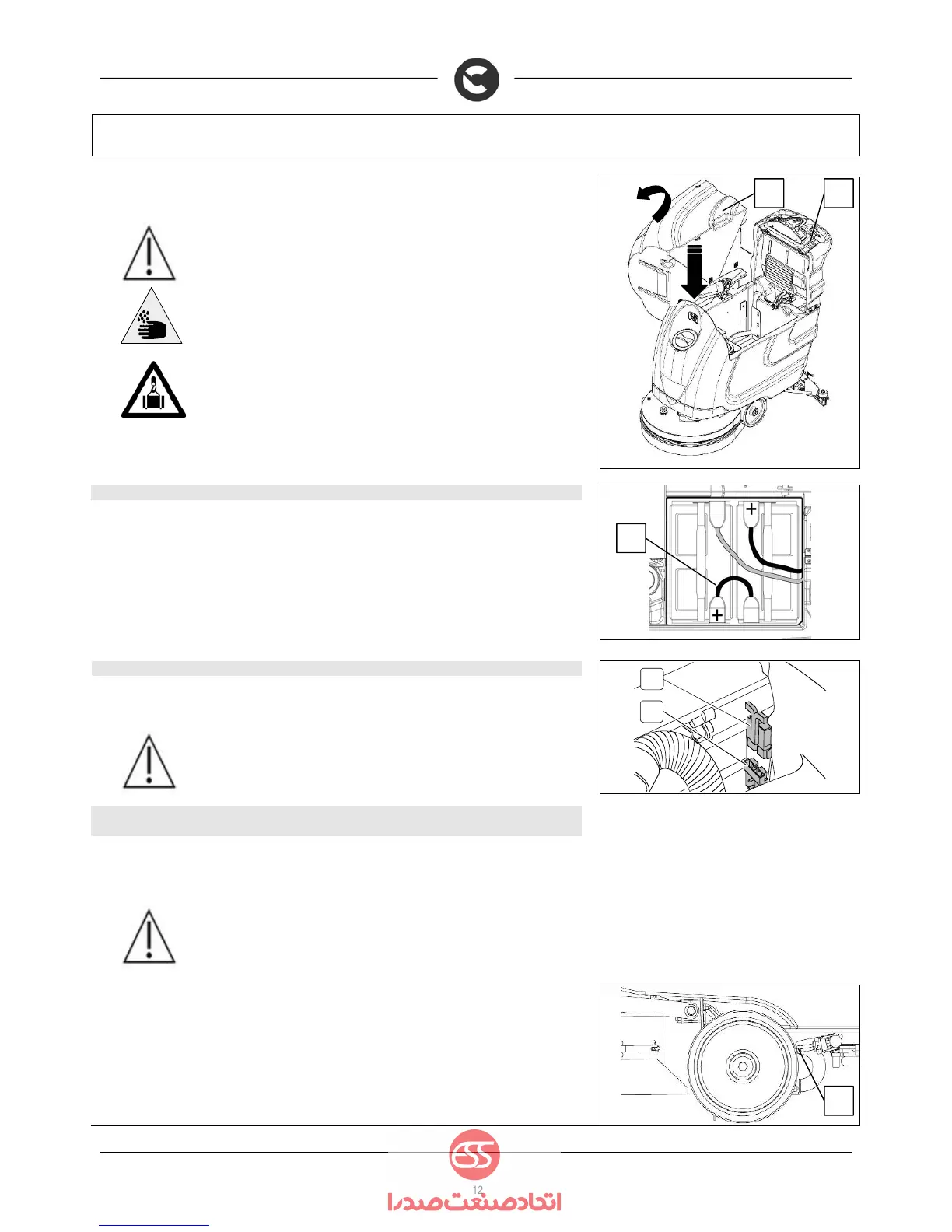

MACHINE PREPARATION
5. Lift the batteries by means of the grips on the upper part
6. house the batteries in the compartment, positioning the poles “+” and “-“ opposite each other
ATTENTION: you are advised to use airtight batteries only, to avoid the
leakage of acids!
ATTENTION: you are advised to have the electric connections made by a
qualified, COMAC-trained technician
ATTENTION: you are advised to always wear protective gloves, to avoid the
risk of serious injury to your hands.
ATTENTION: You are advised to only lift and move the batteries with lifting
and transportation means suitable for the specific weight and size
7. CONNECTION OF THE BATTERIES
To connect the batteries you must:
1. connect the batteries in series - using the jumper cables supplied (3) - to the poles “+” and “-“
2. Connect the battery connector cable to the terminal poles “+” and “-“ to obtain a voltage of 24V on
the terminals
8. CONNECTION OF THE ELECTRICAL SYSTEM CONNECTOR
Beneath the recovery tank there is the battery connector (2), in which the electrical system connector
(1) must be inserted.
ATTENTION: This process must be carried out by qualified personnel. An
incorrect connection of the connector may cause problems with machine
functioning.
2
1
9. RECHARGING THE BATTERIES WITH AN EXTERNAL BATTERY CHARGER (VERSIONS
WITHOUT BC)
In order not to cause permanent damage to the batteries, it is essential to avoid their complete
discharge: arrange the recharge within a few minutes of the switching on of the "discharged batteries"
blinking light.
ATTENTION: never leave the batteries completely discharged, even if the
machine is not being used. Check the battery charger is suitable for the
batteries installed, in terms of both capacity and type.
To connect the batteries you must:
1. Make sure the recovery tank is empty, otherwise empty it completely
2. Move the machine near to the battery charger
3. Make sure that the key switch in the “0” position
4. Engage the parking brake located on the left side of the machine (1)
5. open the rear hinge that closes the upper tank
6. Rotate the tank as far as it will go, using the side handle
2
3
1
1
