MACHINE PREPARATION

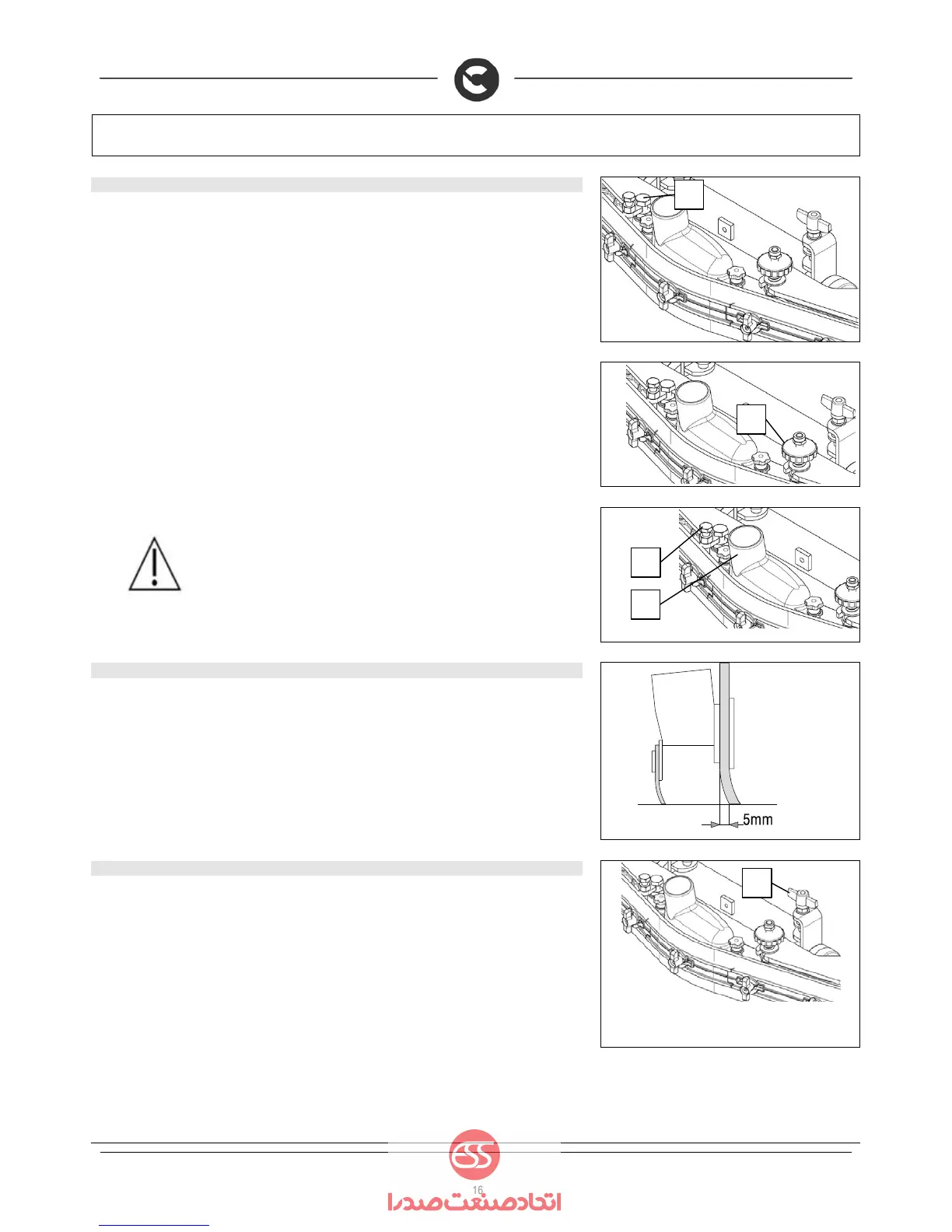

15. SQUEEGEE ASSEMBLY
The squeegee, that for reasons of packaging comes disassembled from the machine, must be
assembled while assembling the machine. Proceed as follows for assembly:
1. Turn the key of the master switch anticlockwise to the “0” position.
2. Engage the parking brake located on the left side of the machine.
3. Lift the squeegee connection by means of the lever at the rear of the machine.
4. First insert the left pin of the squeegee (1) into the left slot on the squeegee coupling.
5. The right pin (2) into the right slot, being careful to keep the spring and washer on the plate of said
arm. This can be simplified by first loosening the handwheel on the pin.
6. Tighten the handwheel to block the squeegee in place.
7. Insert the suction tube in the appropriate joint (3) on the squeegee, ensuring that the suction tube
lies to the right of the lifting cable.
ATTENTION: these operations must be carried out using protective gloves to
avoid any possible contact with the edges or tips of metal objects.
16. ADJUSTING THE SQUEEGEE INCLINATION
During working operation, the rear rubber is tilted slightly backwards (by about 5 mm) in a uniform way
for its whole length. If it is necessary to increase the bend of the rubber in the central part, you must tilt
the squeegee backwards, rotating the adjuster (4) anticlockwise. To increase the bend of the rubber at
the sides of the squeegee, rotate the set screw clockwise.
17. ADJUSTING THE SQUEEGEE HEIGHT
The height of the squeegee must be adjusted on the basis of the state of wear and tear of the rubber.
To do this, turn the knob (1) anticlockwise to raise the squeegee, and clockwise to lower it.
Note: the right and left wheels must be adjusted to the same level, so the squeegee can work parallel
to the floor.
1
2
3
4
1
