MACHINE PREPARATION

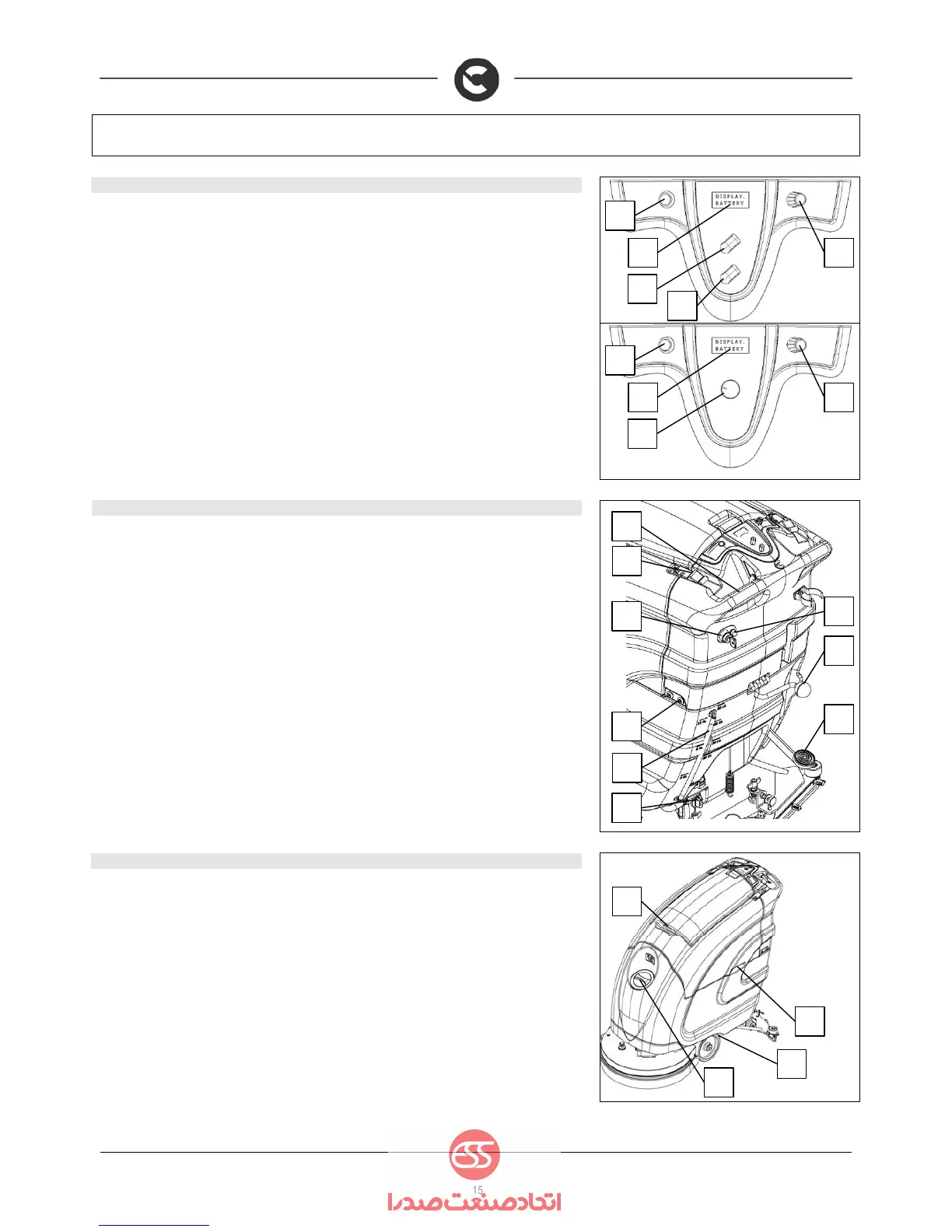

12. INSTRUMENT PANEL COMPONENTS
The instrument panel components are identified as follows:
1. Water outlet regulation switch (CDS versions)
2. Detergent outlet regulation switch (CDS versions)
3. Battery level / hour-counter display
4. Battery level hour meter display control button
5. Speed level key (BT versions)
6. Detergent solution flow quantity level adjustment knob
13. REAR COMPONENTS
The rear components are identified as follows:
7. Levers to activate brushes/traction (located beneath the grip)
8. Brush lifting pedal
9. Water/solution level tube
10. Water tap
11. Tank closure hinges
12. Handlebar fastening screws
13. Squeegee lifting lever
14. Key operated switch
15. Brush head motor thermal circuit breaker (electric version)
14. FRONT AND SIDE COMPONENTS
The side components are identified as follows:
16. Water/solution inlet cap
17. Recovery tank lifting handle
18. Suction unit lifting handle
19. Parking brake lever
