DAILY MAINTENANCE

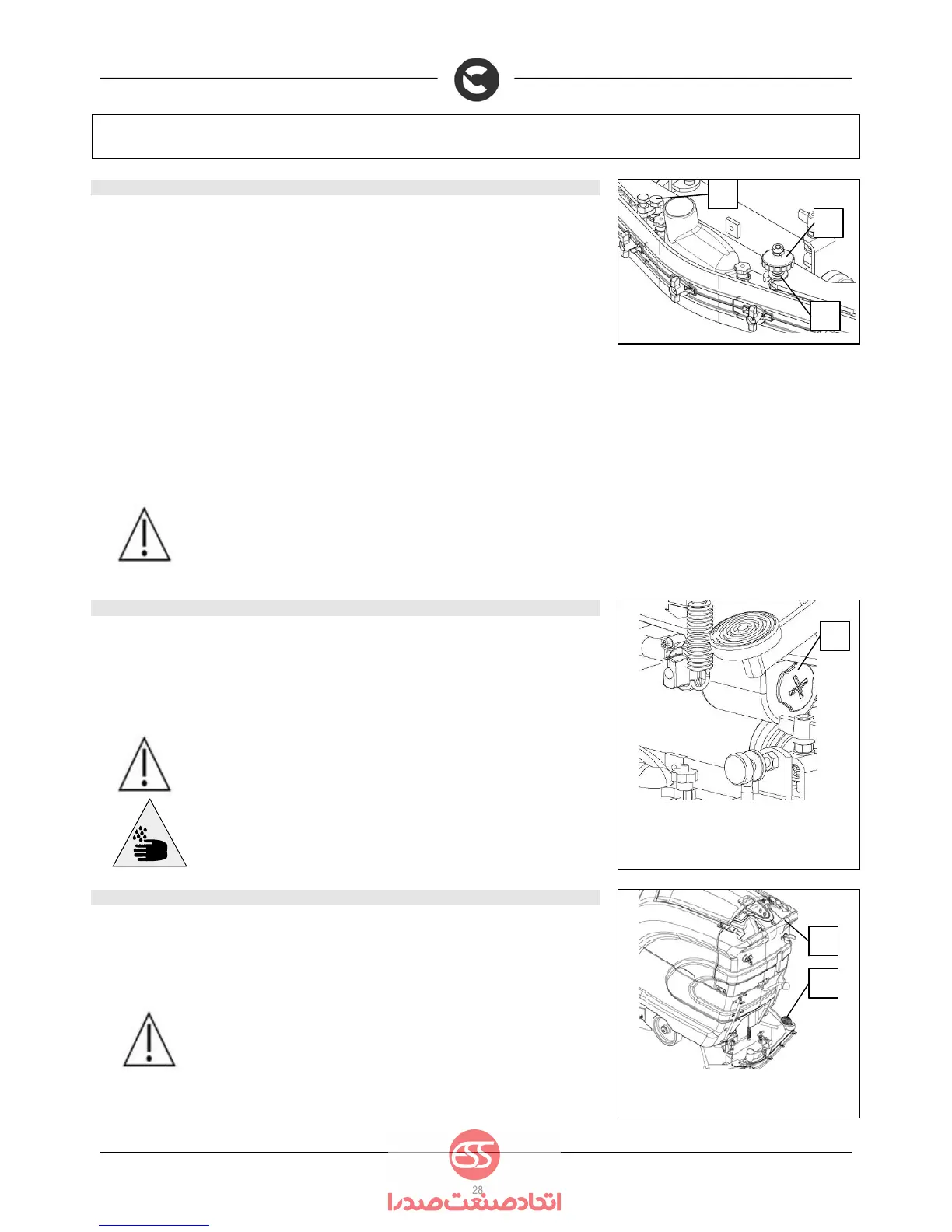

4. DISASSEMBLING AND CLEANING THE SQUEEGEE
Check the squeegee is always clean, for better drying results. To clean it you must:
1. Raise the squeegee body by turning the lever anticlockwise.
2. Check that the parking brake is engaged.
3. Remove the suction tube from the squeegee.
4. Turn the handwheel counterclockwise (1) and remove the pin (2) from its housing in the squeegee
coupling.
5. Remove the pin (3) from its housing in the squeegee coupling.
6. Check the state of wear of the front squeegee rubber. If the edge of the rubber is damaged or in case
of total wear of the rubber, proceed with the replacement. To remove the front rubber (section on
"REPLACING THE SQUEEGEE RUBBER").
7. Check the state of wear of the rear squeegee rubber. If the edge of the rubber is damaged or in case
of total wear of the rubber, proceed with the replacement. To remove the front rubber (section on
"REPLACING THE SQUEEGEE RUBBER").
8. Thoroughly clean the squeegee rubbers and the vacuum chamber.
9. Reassemble all the elements.
WARNING: Before carrying out any type of maintenance, disconnect the
machine's power supply cable.
5. CLEANING THE CLEAN WATER FILTER
1. Turn the key of the master switch to the anticlockwise to the "0" position, and remove the key, for the
electric versions disconnect the plug from the mains socket.
2. Check that the parking brake is engaged.
3. Make sure that the solution tank is empty.
4. Unscrew the filter cap (1).
5. Rinse the filter cartridge with running water.
6. Reassemble all the elements.
WARNING: Before carrying out any type of maintenance, disconnect the
machine's power supply cable.
ATTENTION: These operations must be carried out using gloves to protect
against contact with dangerous solutions.
5. DISASSEMBLING THE BRUSH (BRUSH HEAD WITH SINGLE BRUSH)
To disassemble the brush, proceed as follows:
1. Turn on the machine by means of the key switch
2. keep the base slightly up, using the lever (1)
3. Press the working operation and base command levers (2) then release them immediately
4. Upon release, the brush will be automatically detached from the base
ATTENTION: Before carrying out any type of maintenance, disconnect the
machine's battery connector.
