ECON-4, SW version 1.4 rev.1, ©ComAp – March 2016 Draft 10
ECON-4 Reference guide.pdf
Note: Collaboration with ECON-4Slave
Physical analog input on terminal S3.2 can be used also when ECON4-Slave is used. In this case
feedback from slave actuator is put on analogue output on slave and can be connected back to
master to see it in one Winscope (connected to master) and in controller thru CAN as Misf Angle.
Original Misf Angle calculation is not used in latest version of ECON4 and in version 1.4 is used
to show feedback from Slave. If feedback from slave is connected to analog input on S3.2
setpoint LoadAnticipation has to be =0. Othervise wrong value will be used for load anticip
resulting unstability and unpredictive control

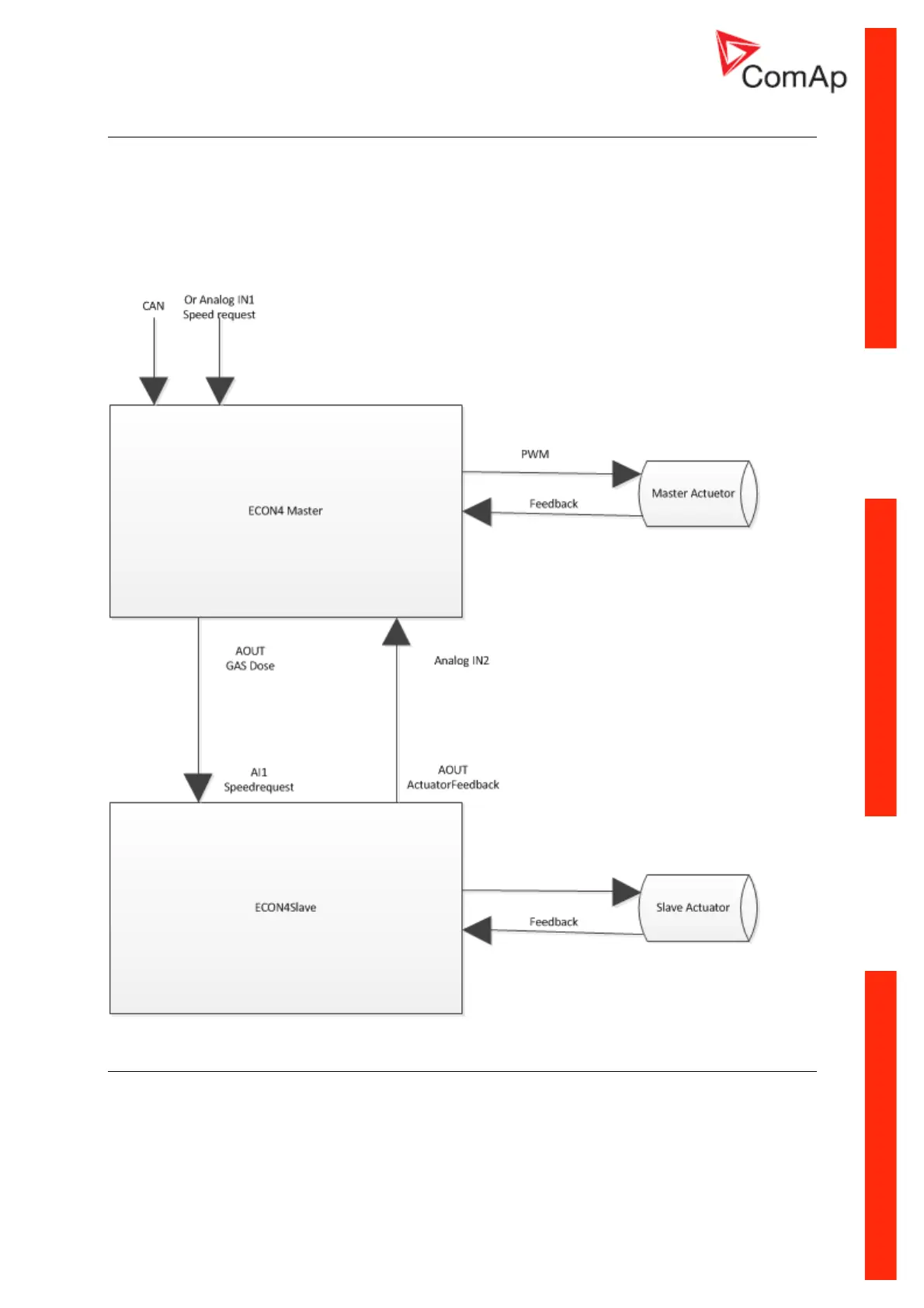

Principle of connection Master Slave is shown on next picture.
Analog outputs
ECON-4 has one analog output configurable to 0-10V or 0-20mA range by jumper setting – see in
table below. If configured to 0-20mA range, output works as an active current source. The analog
output function is fix (copy of the value sent to ACT output). Analogue output range is fully
programmable in range 0-10V or 0-20mA – see setpoints: Analog settings: AOUT 0%and AOUT
100%.
