ComAp ECON-4 Reference Guide

ECON-4, SW version 1.4 rev.1, ©ComAp – March 2016 Draft 51
ECON-4 Reference guide.pdf
Additional setpoints for ECON-4 ADV
This version of ECON4 is dedicated for island operation where load steps are expected. Because load
characteristic is usually nonlinear, different speed PID setting is needed for different load.
Load bands
Load 1 to Load 5 %
Step: 0.1 %
Range: 0 – 100.0 %

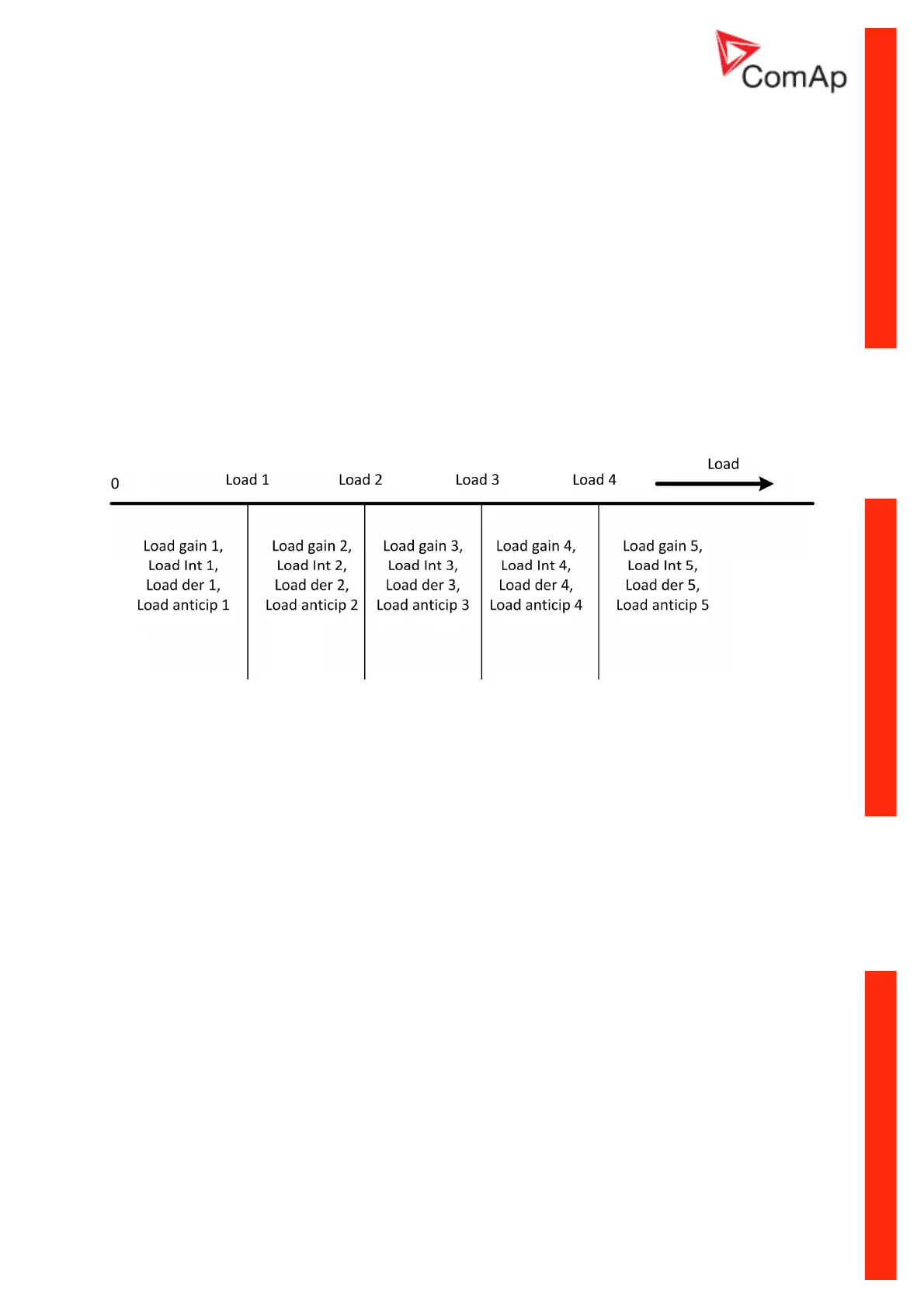

There is 5 load bands defined via setpoints Load 1 to Load 5 and different Load gain, Load Int, Load
der and load anticip setpoints are active in each band.
