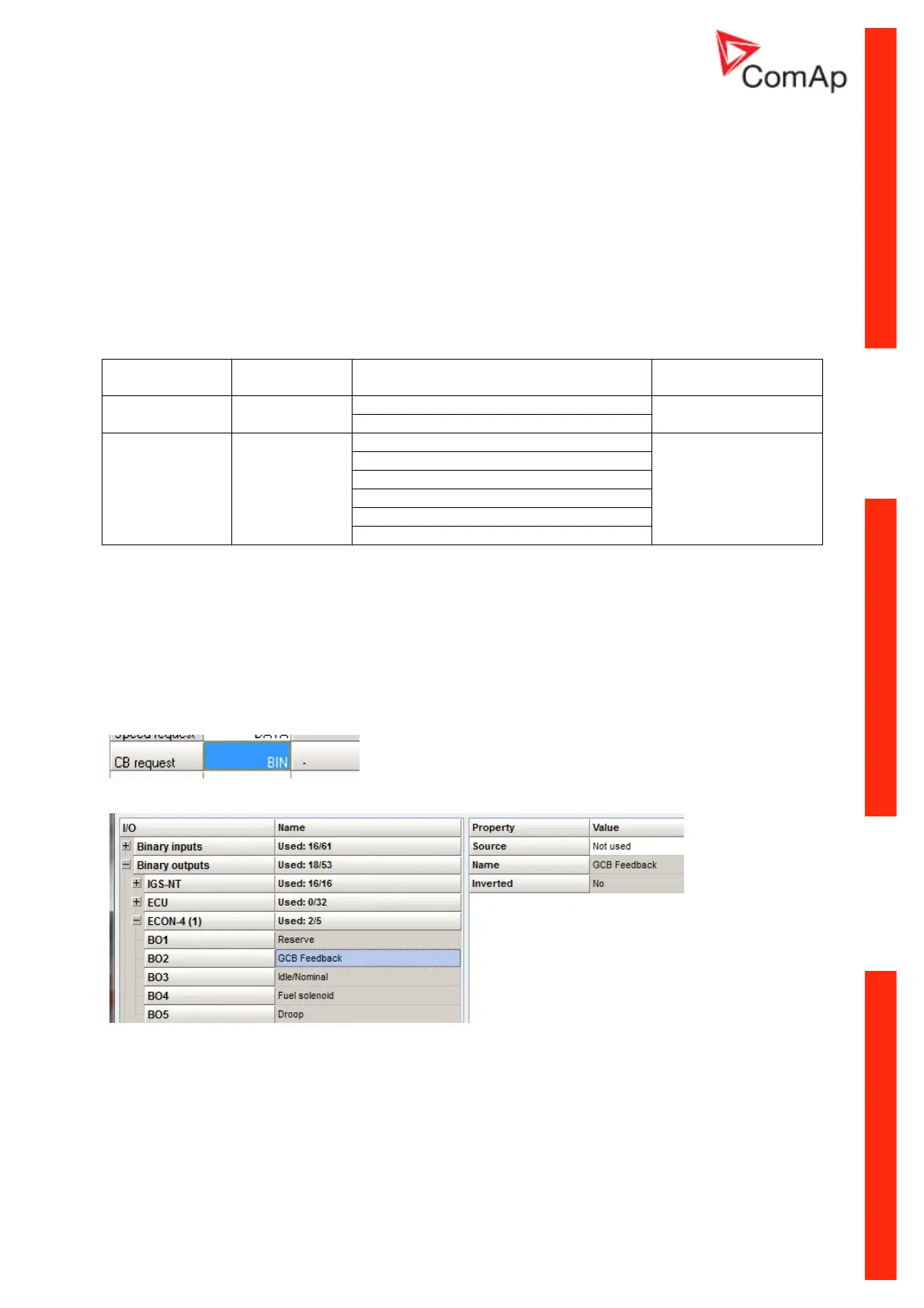

Quick start – how to set ECON4 and
controller
The following description should help you to quick adjust the ECON-4 speed governor. The ECON-4
can be found in different modes used for control of module and engine.
Basically any input signal of ECON4 can be supplied either using wired signal or using data from
CAN1 line.
Input signals of ECON4 are separated in to two groups each group can be controlled in different way.
Group
Setpoint
Signal
Possible control
mode
Breaker`s
feedback
CB request GCB feedback BIN/DATA
MCB feedback
Speed control Speed request Speed request analogue signal BIN/ANA/DATA
Actual power analogue signal
SpeedUp and SpeedDown binary signal
Idle/Nominal binary signal
Droop binary signal
RUN binary signal
Block schema where data flow in different modes is shown is located in Setpoints section CB request
and Speed request on page 39 and 40.
There is separated description of setting for different modes for CB request and Speed request on
following pages.
Breaker`s feedback handling (CB request modes)
CB request set to BIN mode
In case of binary control of breaker`s feedback, signals from breakers has to be wired to terminals
S4.1 and S4.2. You do not need to link any source to Binary outputs of ECON4 in Genconfig.
