ComAp ECON-4 Reference Guide

ECON-4, SW version 1.4 rev.1, ©ComAp – March 2016 Draft 34
ECON-4 Reference guide.pdf
Econ-4 firmware update

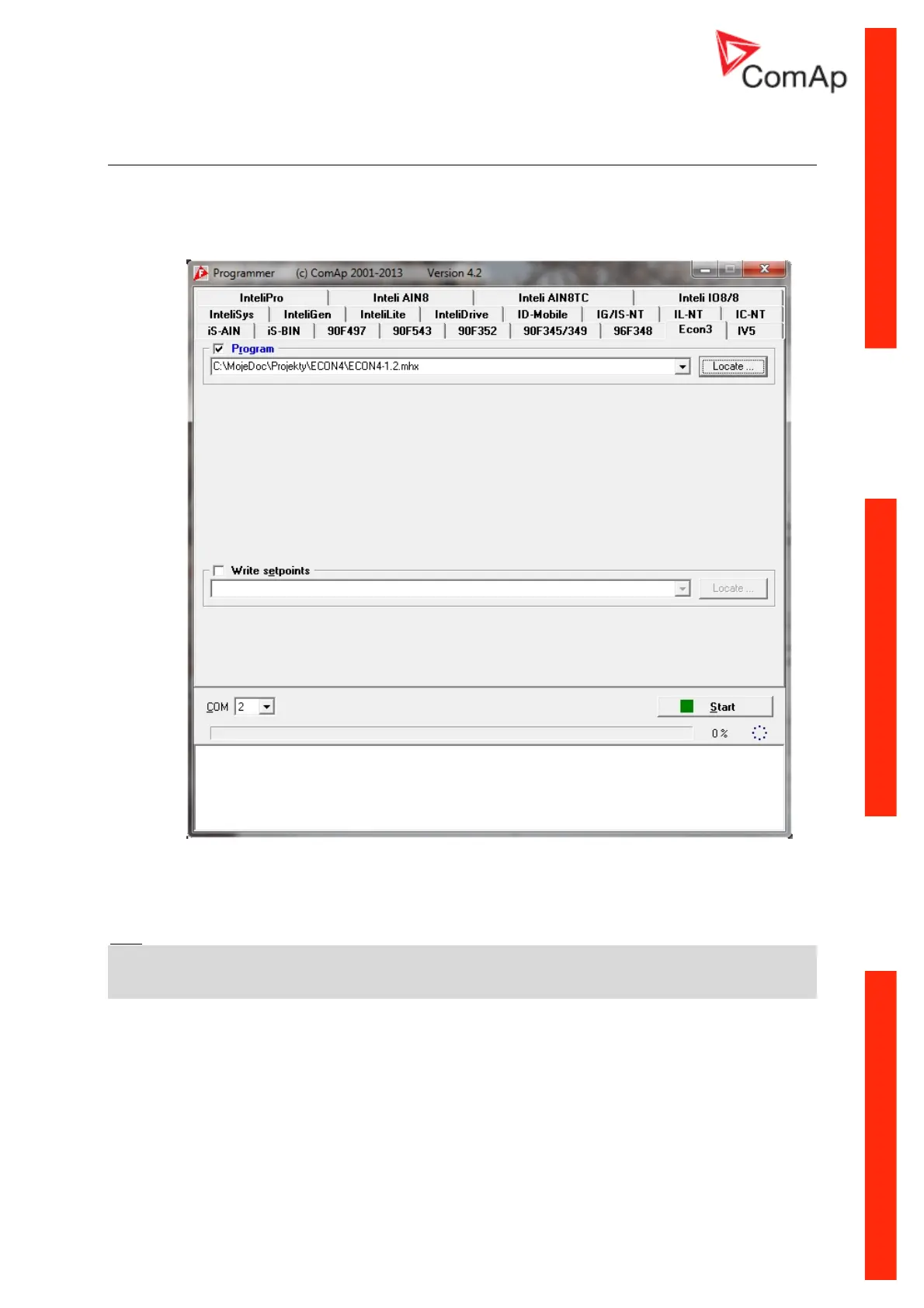

For ECON-4 firmware upgrade use ComAp FlashProgrammer – see below, choose card ECON-4
(common for ECON-4 and ECON-4). Tick the button Program and choose the appropriate firmware
using icon “Locate…”
You can save your setpoints from an existing site and program them together with the new
firmware. However the program change does not influence the setpoints, so you can keep
them in ECON-4.
Choose the right COM port number and press “Start” button.
Hint:
To be able to program ECON-4 using the FlashProg, you must be disconnected with the WinScope or
InteliMonitor from ECON-4. (There can be always only one active connection to ECON-4 through com
port)

ComAp ECON-4 Specifications

General

Brand	ComAp
Model	ECON-4
Category	Controller
Language	English
