ComAp ECON-4 Reference Guide

ECON-4, SW version 1.4 rev.1, ©ComAp – March 2016 Draft 8
ECON-4 Reference guide.pdf

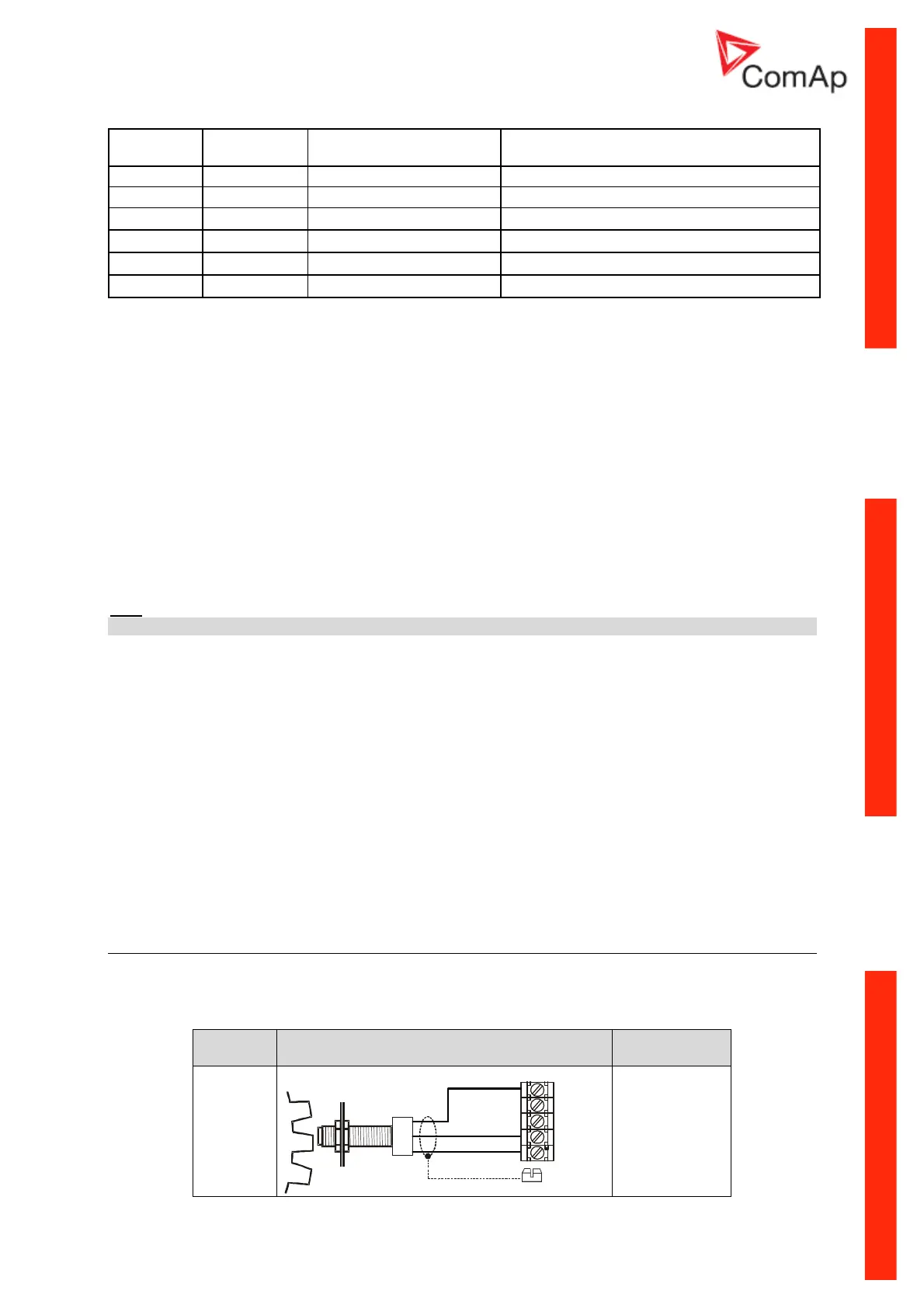

Table 5
MCB state
GCB state
lRPM
-
Requested RPMl
> RPM window PID constants
OFF
OFF NO Speed gain, Speed int, Speed der
OFF
OFF YES Speed gain, Speed int w, Speed der w
ON
OFF NO Speed gain, Speed int, Speed der
ON
OFF YES Speed gain, Speed int w, Speed der w
OFF
ON - Load gain, Load int, Load der
ON
ON - Load control according Speed/Fuel Line
Note:
There is more Load gain, Load int and Load der values in ECON-4 ADV. Which set will be used
depends on actuall power. See description on page 51.
S4.3 NOMINAL
The Required speed is set to Nominal RPM if the Nominal input is closed, otherwise is the Request
set to Idle RPM.
S4.4 SPEED UP
Inputs SPEED UP and SPEED DOWN are used for setting of the speed reference of the engine. The
speed reference can be changed in the range from Nominal RPM - PerChSpdNom% to Nominal RPM
+ PerChSpdNom%. Setpoint: EngineRPM:PerChSpdNom [1-50%] defines the maximum Percentage
change of Speed from Nominal in case BIN or ANA mode of control is used.
Setpoint BI Speed ramp decides how fast the speed reference changes, if the inputs SPEED UP or
SPEED DOWN are active.
Hint:
Inputs SPEED UP and SPEED DOWN are active only if the setpoint Speed request has value BIN.
S4.5 SPEED DOWN
See above.
S4.6 RUN
If the input is not active, governor immediately set the actuator to stop position.
S4.7 DROOP
The input activates droop function – see setpoint Droop.
S4.8 Bin 8
Reserve
Speed pick-up
Always use a shielded cable, connect shielding to a grounding screw. ECON-4 supports both active
(powered) and passive (magnetic) pickups.
Table 1
Pick-up Recommended wiring
Jumpers
Active
NPN
+24V
SIG
GND
S7.5
S7.4
S7.3
S7.2
S7.1
Link 1 and 2
Link 4 and 5
