Act position [%]
Adjusts the actuator position in the Econ-4 Mode = MAN.
Step: 0.1 %
Range: 0.0 – 100.0 %
PWM rate [Hz]
Frequency of the PWM signal sent to ACT+ and ACT- outputs.
Step 1Hz
Range 600 – 10 000 Hz
For Heinzmann actuators adjust the PWM rate to 6000 Hz. For Woodward PWM and current, GAC
actuators adjust the PWM rate to 2000Hz.
Analog sensors

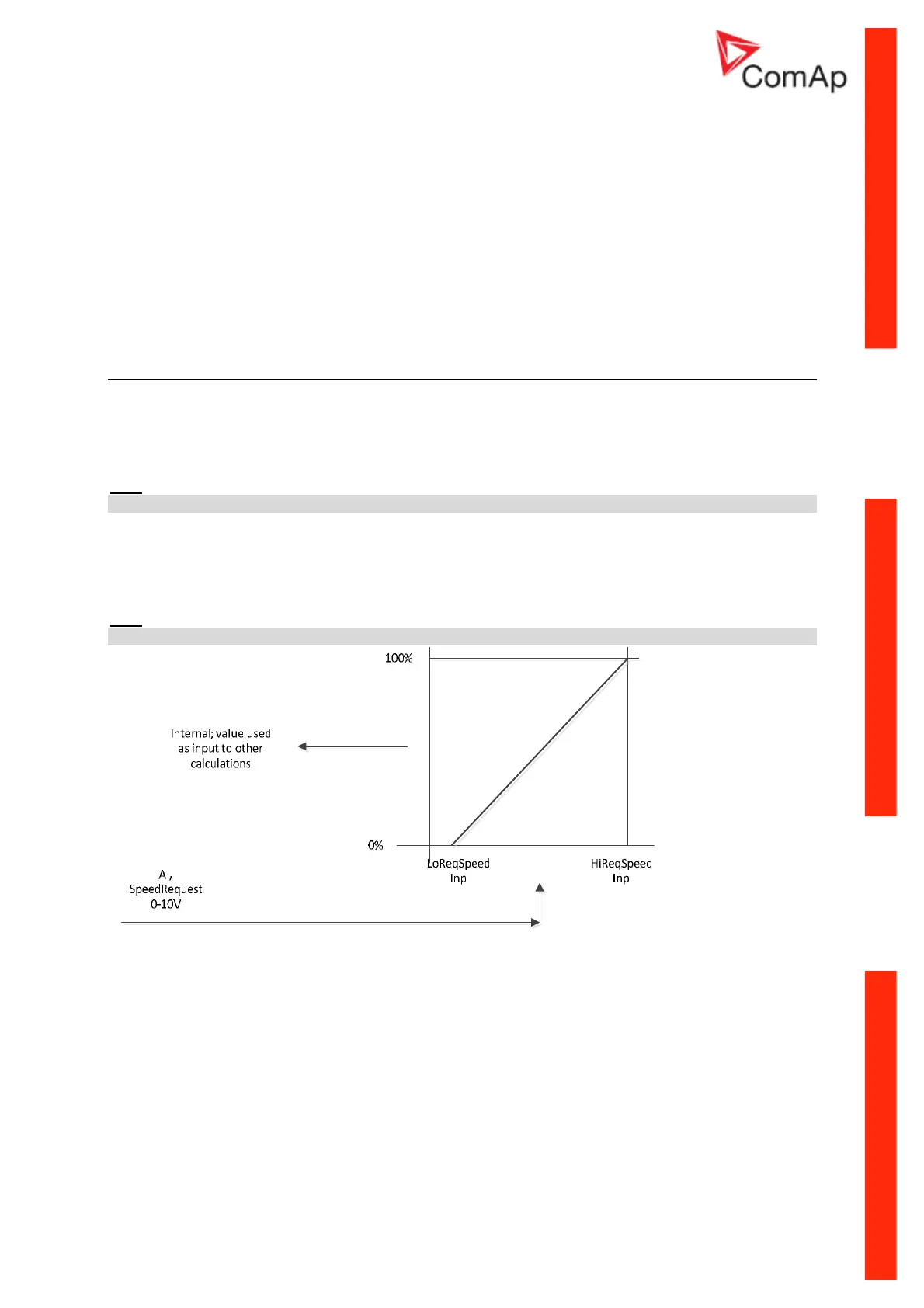

LoReqSpeed Inp [%]
Value of analog input SPEED REQUEST for minimum possible speed reference (Nominal RPM-8%).
Step: 0.1 %
Range: 0.0 – 100.0 %
Hint:
It is active only if the setpoint Speed request = ANA.
HiReqSpeed Inp [%]
Value of analog input SPEED REQUEST for maximum possible speed reference (Nominal RPM+8%).
Step: 0.1 %
Range: 0.0 – 100.0 %
Hint:
Input SPEED REQUEST active only if the setpoint Speed request = ANA.
