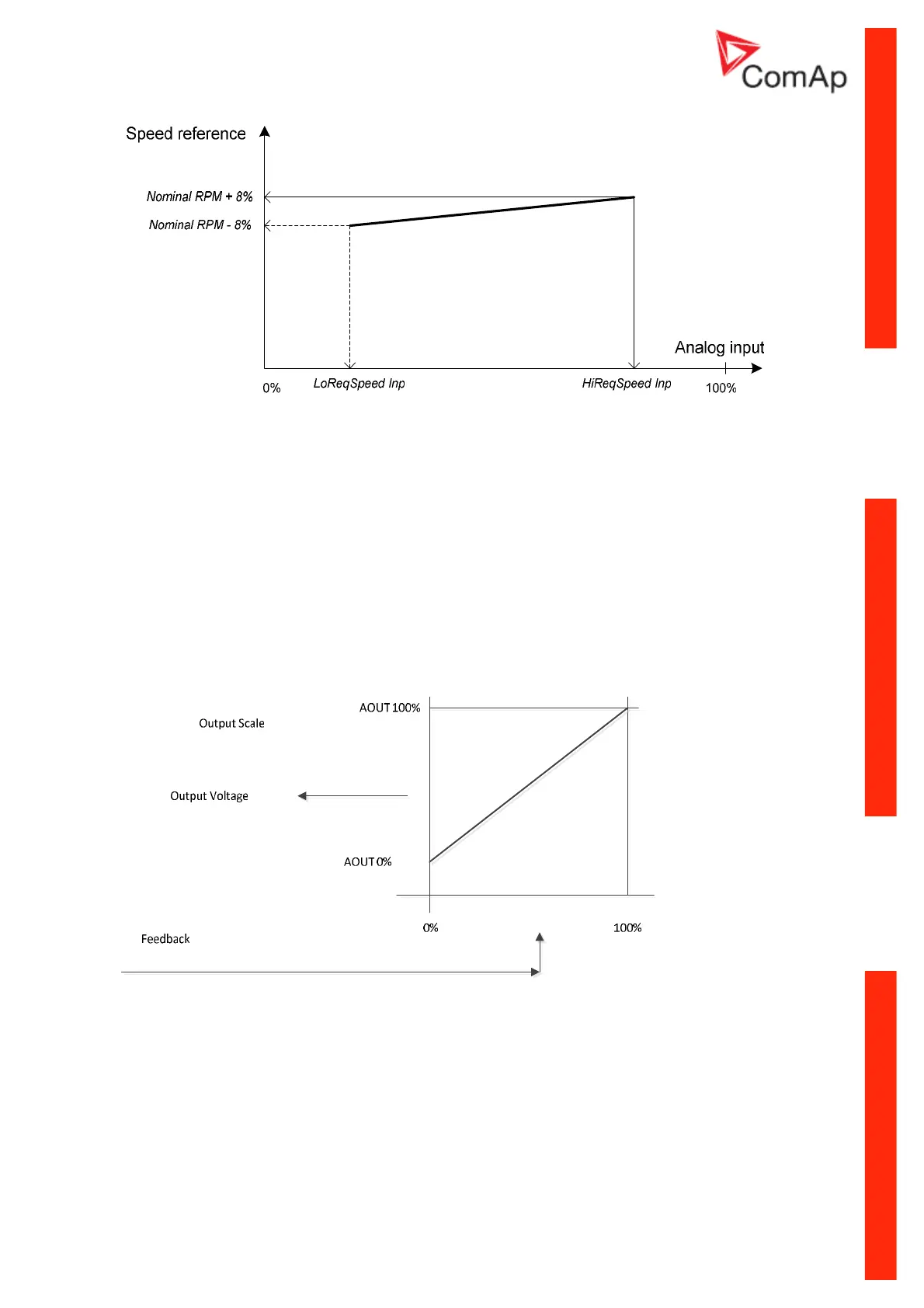

AOUT 0% [%]
Analogue output low limit signal definition.
Step: 1 %
Range: 0 – 100 %
AOUT 100% [%]
Analogue output high limit signal definition.
Step: 1 %
Range: 0 – 100 %
The maximum range of analogue output is 0 – 10V (0 – 20mA jumper selection). Using the 2 above
setpoints you can adjust the limits for max and min levels of the signal.
Fdb 0 pos [%]
Feedback fully closed position voltage. Connect the position feedback to the ECON-4 terminals. Keep
the actuator lever in fully closed position and measure a dc voltage between the terminals S2.1 and
S2.3. This voltage put as this setpoint value.
Step: 0,01 V
Range: 0,40 – Fdb1 100 pos.V
