ComAp ECON-4 Reference Guide

ECON-4, SW version 1.4 rev.1, ©ComAp – March 2016 Draft 25
ECON-4 Reference guide.pdf

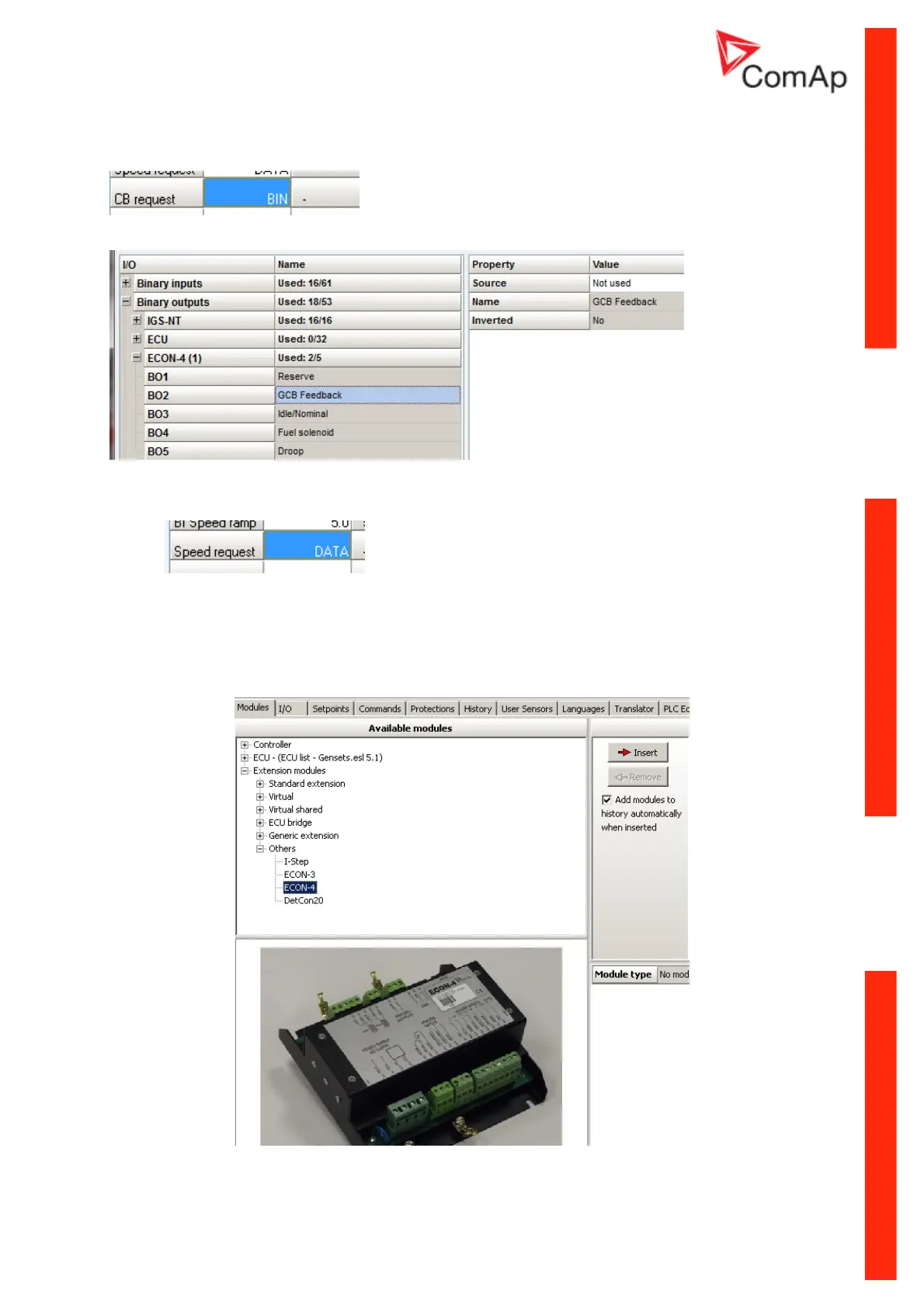

CB request set to BIN mode
There is binary control of breaker`s feedback so signals from breakers has to be wired to terminals
S4.1 and S4.2. You do not need to link any source to Binary outputs of ECON4 in Genconfig.
Speed request set to DATA mode
There is DATA control used, so almost all the data are sent from ComAp IGS-NT controllers to ECON-
4 via CAN1 line. The only binary input RUN/STOP – S4.6 must be activated physically as well. To use
the DATA mode, adjust the IGS-NT inputs/outputs in the following way:
a. Configuration of ECON-4 module
Go to GenConfig, card Modules – Extension modules – Others – ECON-4 > Insert
