AIN2 – Misf Amplitude
From ECON-4 sw version 1.1 will send the information about Misifiring of the engine to
the IGS-NT controller.

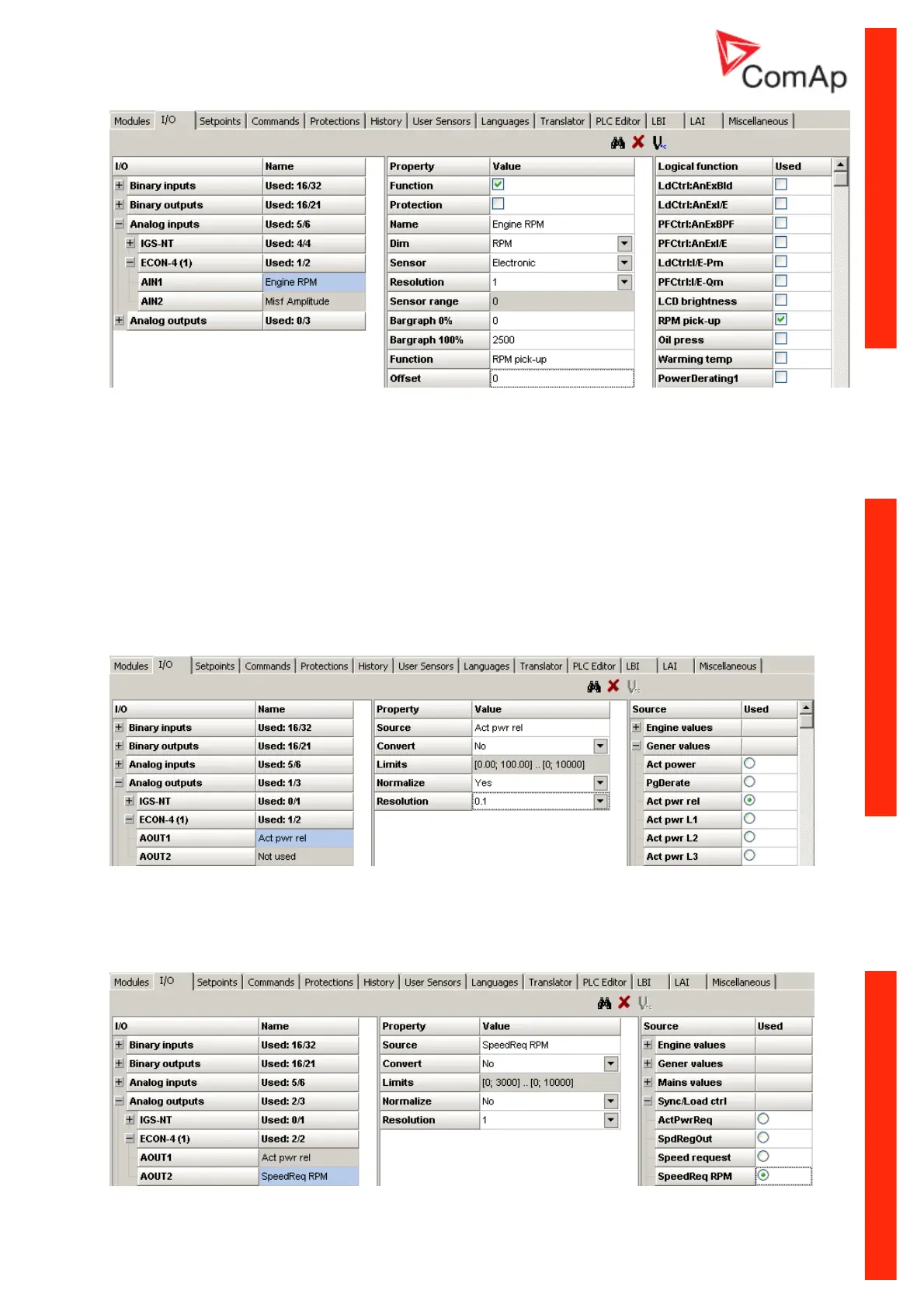

d. Configuration of Analogue outputs from IGS-NT to ECON-4
AOUT1 – Active Power Rel
ECON-4 is equipped with the Load anticipation function to react as quickly as possible
to the sudden changes of the engine power. For this function ECON-4 needs
information about power and in case of DATA mode this can be sent to ECON-4 via
CAN. Adjust the AOUT1 in the following way:
Source: Gener values: ActPwr rel
Normalize: YES
Resolution: 0,1
AOUT2 – Speed Request
The Speed request in case of DATA mode is sent via CAN line. Configure the output
AOUT2 in the following way:
Source: Sync.Load ctrl: SpeedReqRPM
