ECON-4 1.4.0 Global Guide
12

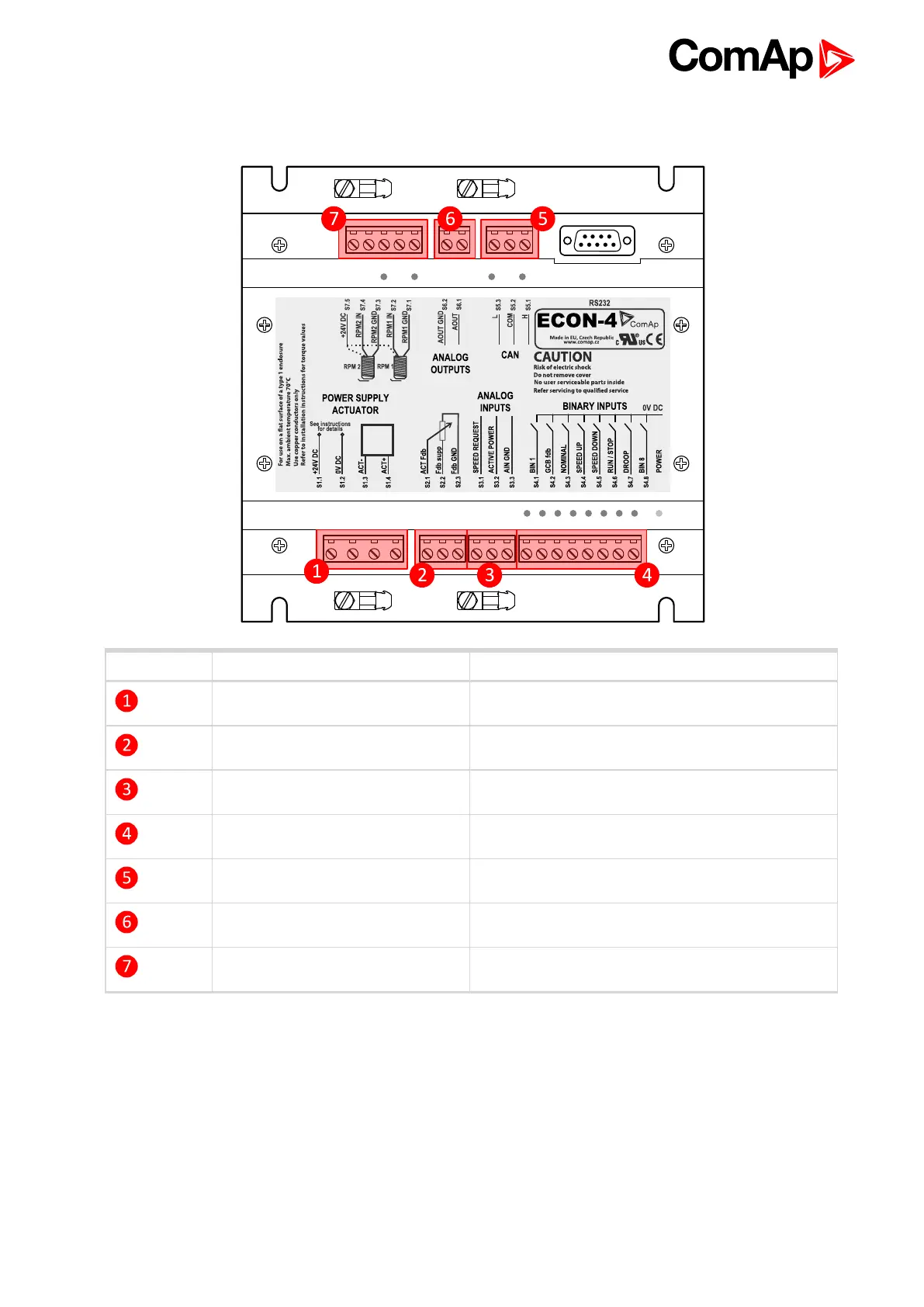

4.4 Recommended wiring
Postion Terminal groups Link
Power supply Actuators Power Supply (page 13)
Actuator feedback Interface to actuators (page 18)
Analog inputs Analog inputs (page 15)
Binary inputs Binary inputs (page 13)
Magnetick Pick-up Speed Pick-up (page 20)
Analog outputs Analog output (page 17)
Communications Communication wiring (page 20)
6 back to Installation and wiring
4.4.1 General
Use grounding terminals.
The “-“terminal of the battery has to be properly grounded.
Cables for binary inputs and analogue inputs must not be placed along power cables.
Analogue inputs should use shielded cables, especially when length >3m.
Always use shielded cable for Magnetic pick-up.
