ECON-4 1.4.0 Global Guide
23

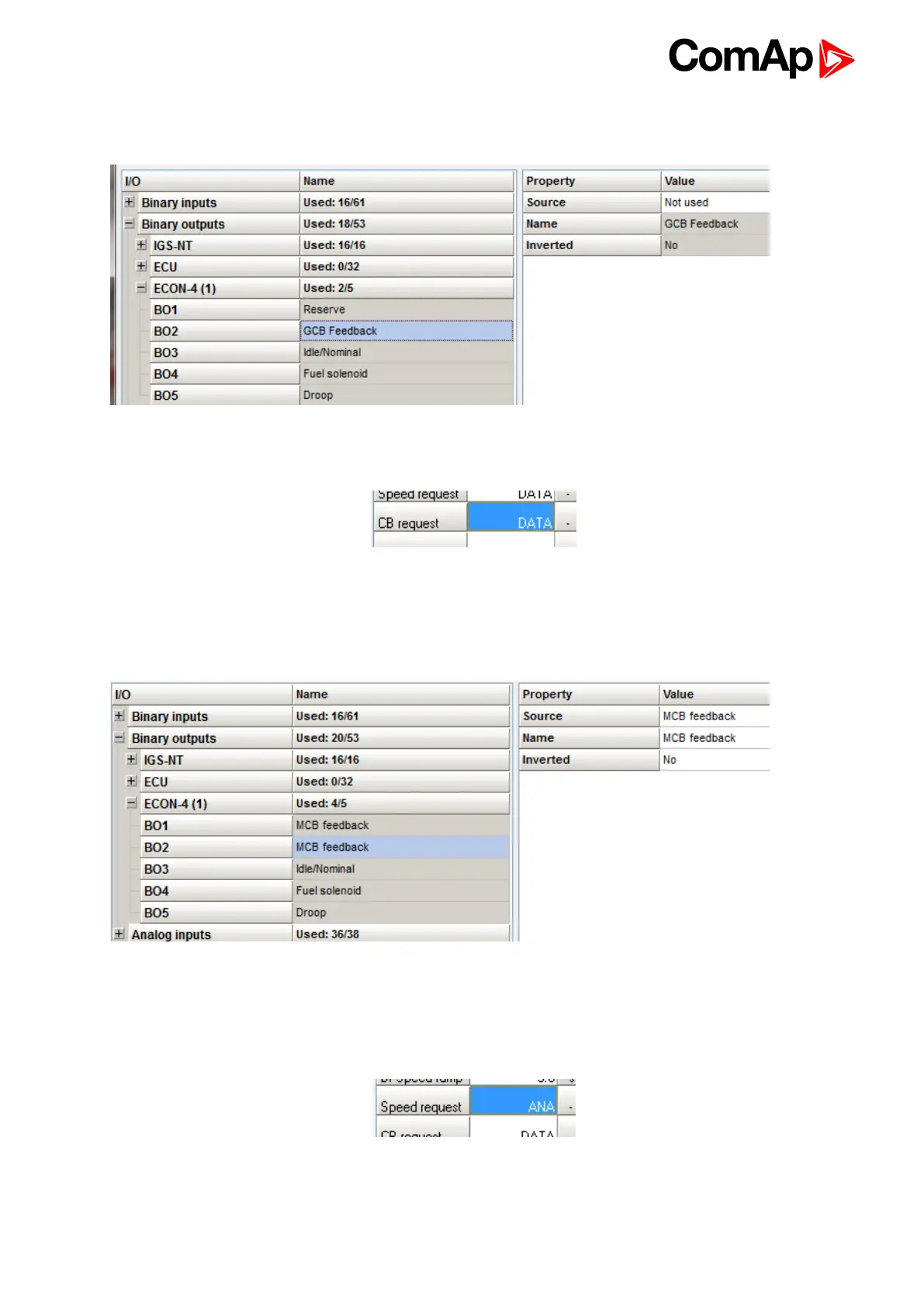

In case of binary control of breaker`s feedback, signals from breakers has to be wired to terminals S4.1 and
S4.2. You do not need to link any source to Binary outputs of ECON4 in Genconfig.
CB request set to DATA mode
Image 5.2 CB request - DATA mode
In case of DATA control of breaker`s feedback, logical signals from breakers has to be linked to Binary outputs
of ECON4 in Genconfig. Terminals S4.1 and S4.2. do not need to be wired.
5.1.2 Speed control handling (Speed request modes)
Speed request set to ANA mode
Image 5.3 Speed request - ANA mode
