ECON-4 1.4.0 Global Guide
25
a. Configuration of ECON-4 module

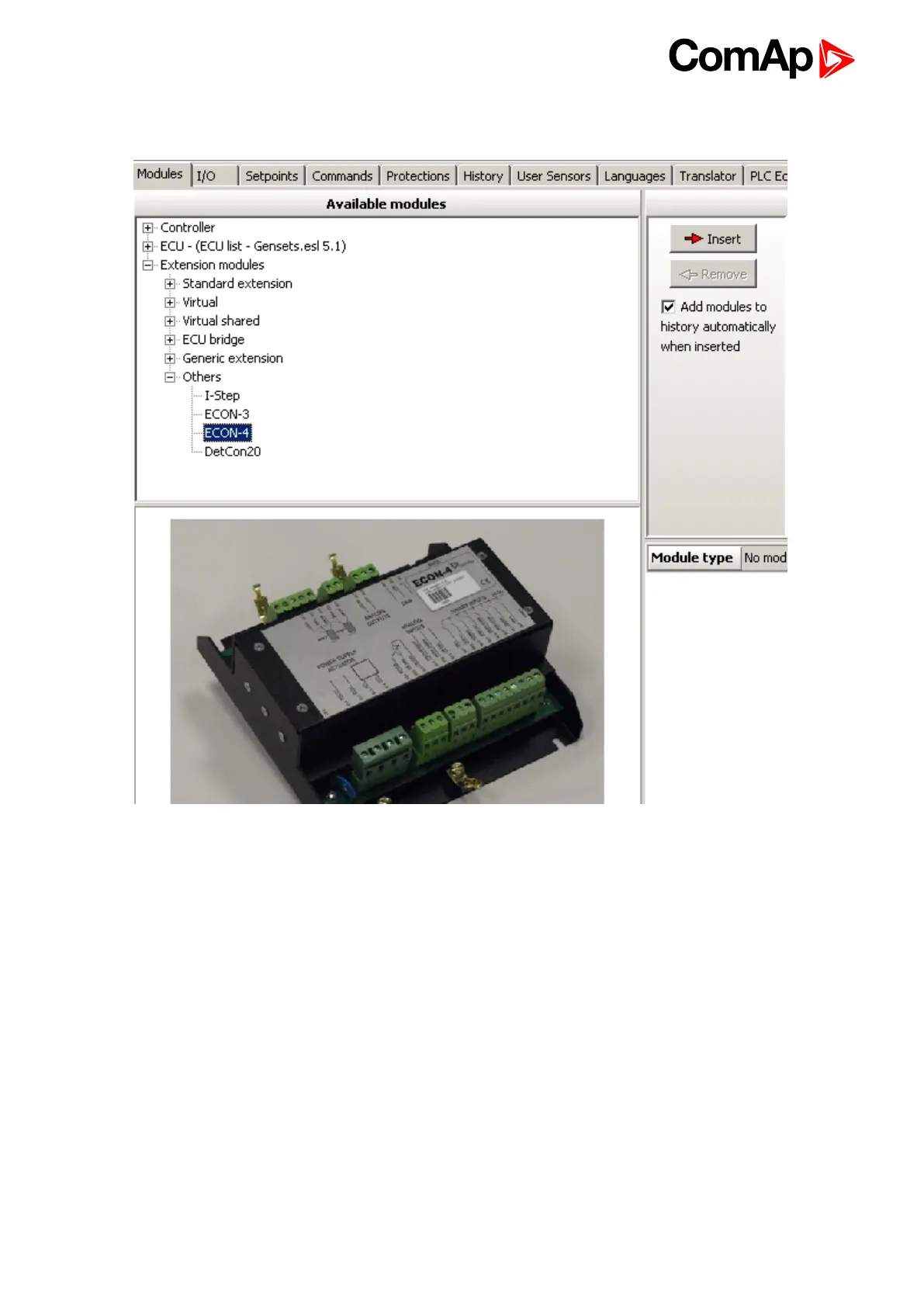

Go to GenConfig, card Modules – Extension modules – Others – ECON-4 > Insert
b. Configuration of Binary outputs of IGS-NT
All the ECON-4 inputs are in fact IGS-NT outputs (IGS-NT controller sends the signals to ECON-4 unit).
BO1 – this configuration of feedback is independent and is described in previous chapter Breaker`s
feedback handling (CB request modes)
BO2 – this configuration of feedback is independent and is described in previous chapter Breaker`s
feedback handling (CB request modes)
BO3– Idle/Nominal – configure on this output signal which defines switching from Idle operation to Nominal
ROM run. The Log bout signal: Idle/Nominal of IGS-NT can be used. In case the Idle period is required to be
skipped, configure on this output signal Log bout: Logical 1.
BO4 – Run Stop – together with binary input S4.6 RUN/STOP this signal must be activated to unblock
ECON-4 function. Signal Log Bout: Fuel solenoid can be used.
BO5 – Droop – use the Droop function in case of in Mains parallel operation to make the load control function
more stable (protectagainst power swing). Use signal e.g. GCB feedback.
