ECON-4 1.4.0 Global Guide
50
Setpoint group Engine RPM Related FW
1.4.0
configured ECON-4
extension module
Range [units] BIN / DATA
Default value DATA Force value NO
Step -
Comm object 14363 Related applications ALL
Setpoint visibility Always

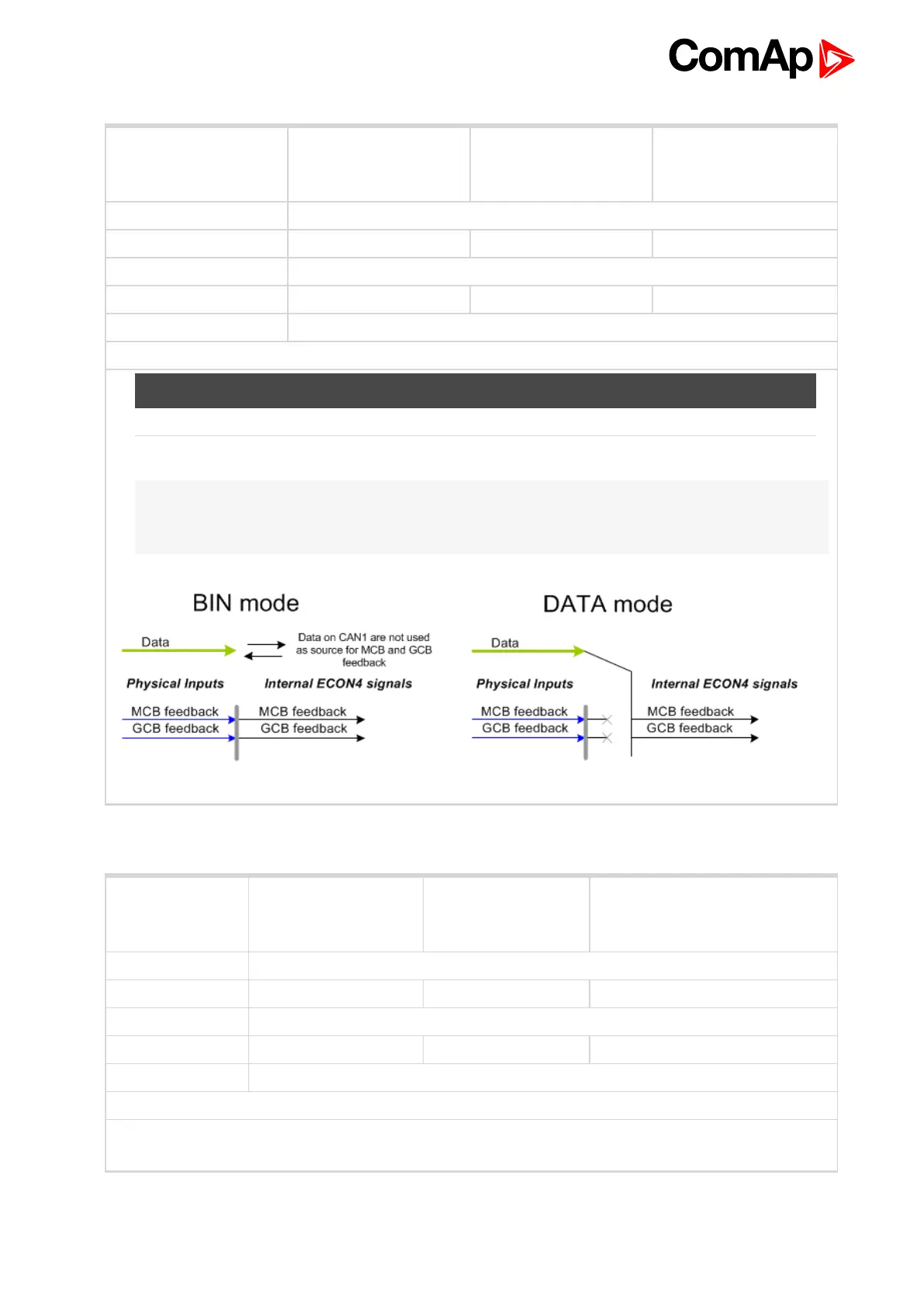

Description
CB Request value CB position information source
BIN Terminal S4.1 and S4.2
DATA CAN bus
Note: If possible, use binary control for CB request and wire terminal S4.1 and S4.2 to feedback signal.
This will assure fastest reaction of ECON4 when breaker is closed or opened. This is crucial to avoid
over speed in case of opening GCB under load for example.
CB request
6 back to List of setpoints
Setpoint group Main PID Related FW
1.4.0
configured ECON-4
ADVextension module
Range [units] Nominal RPM – Overspeed RPM
Default value 1750 Force value NO
Step 1 RPM
Comm object 14408 Related applications ALL
Setpoint visibility WinScope only
Description
When actual RPM reaches this value Gas Dose (throttle position) is immediately set to Idle Fuel value or
zero (closed position) according setting in setpoint PreOverSpReduct .
PreOverSpeed
6 back to List of setpoints
