Accessory Modules for IL-NT, IC-NT, IA-NT and ID-Lite Global Guide
32

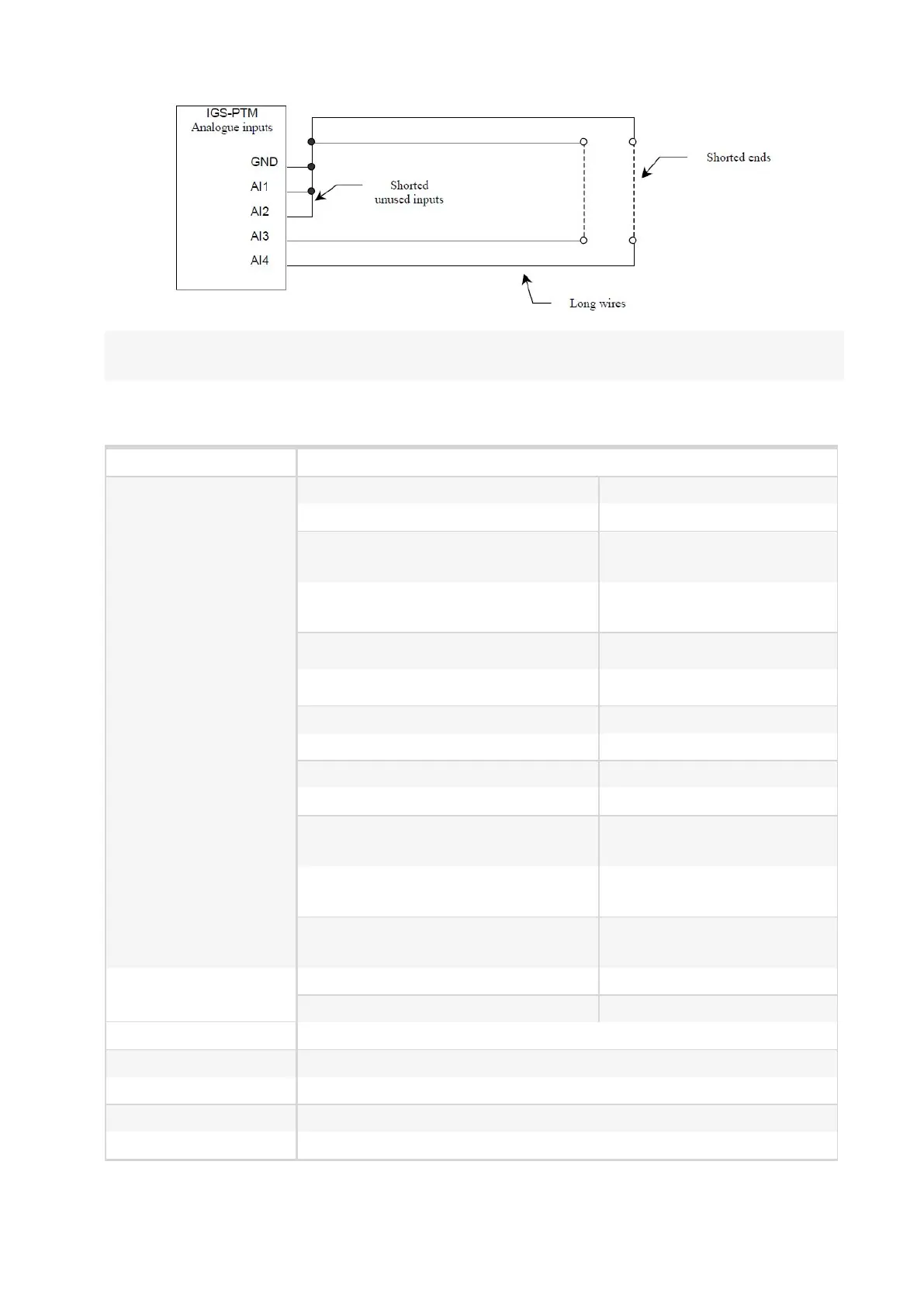

Note: Maximum resistance of two leads (from IGS-PTM to sensor and back) can be 20 Ω. Otherwise the
compensation fails. Unused analog inputs must be shorted at the IGS-PTM.
4.5.7 Technical data
Dimension (W×H×D) 95×96×43 mm (3.7´×3.8´×1.7´)
Binary inputs
Input resistance 4700 ohm
Input range 0 to 36V DC
Switching voltage level for open contact
indication
0 to 2V
Max voltage level for open contact
indication
8 to 36V
Binary outputs
(Open collector
outputs)
Max current 500mA
Max switching voltage 36V DC
Analog inputs
(Not electric separated)
Resolution 10 bits
Sensor resistance range 0 to 250 ohm
Maximal voltage range 0 to 100 mV
Maximal current range 0 to 20 mA
Resistance measurement tolerance
1 % ± 2 ohm out of measured
value
Voltage measurement tolerance
1.5 % ± 1 mV out of measured
value
Current measurement tolerance
2.5 % ± 0.5 ohm out of measured
value
Analog output
(not electric separated)
Output current 0 to 20 mA ± 0.33mA
resolution 10 bit
Power supply 8 to 36 V DC
Protection IP20
Current consumption 100 mA at 24V ÷ 500 mA
Storage temperature -40 °C to + 80 °C
Operating temperature - 30 °C to + 70 °C
6 back to IGS-PTM
