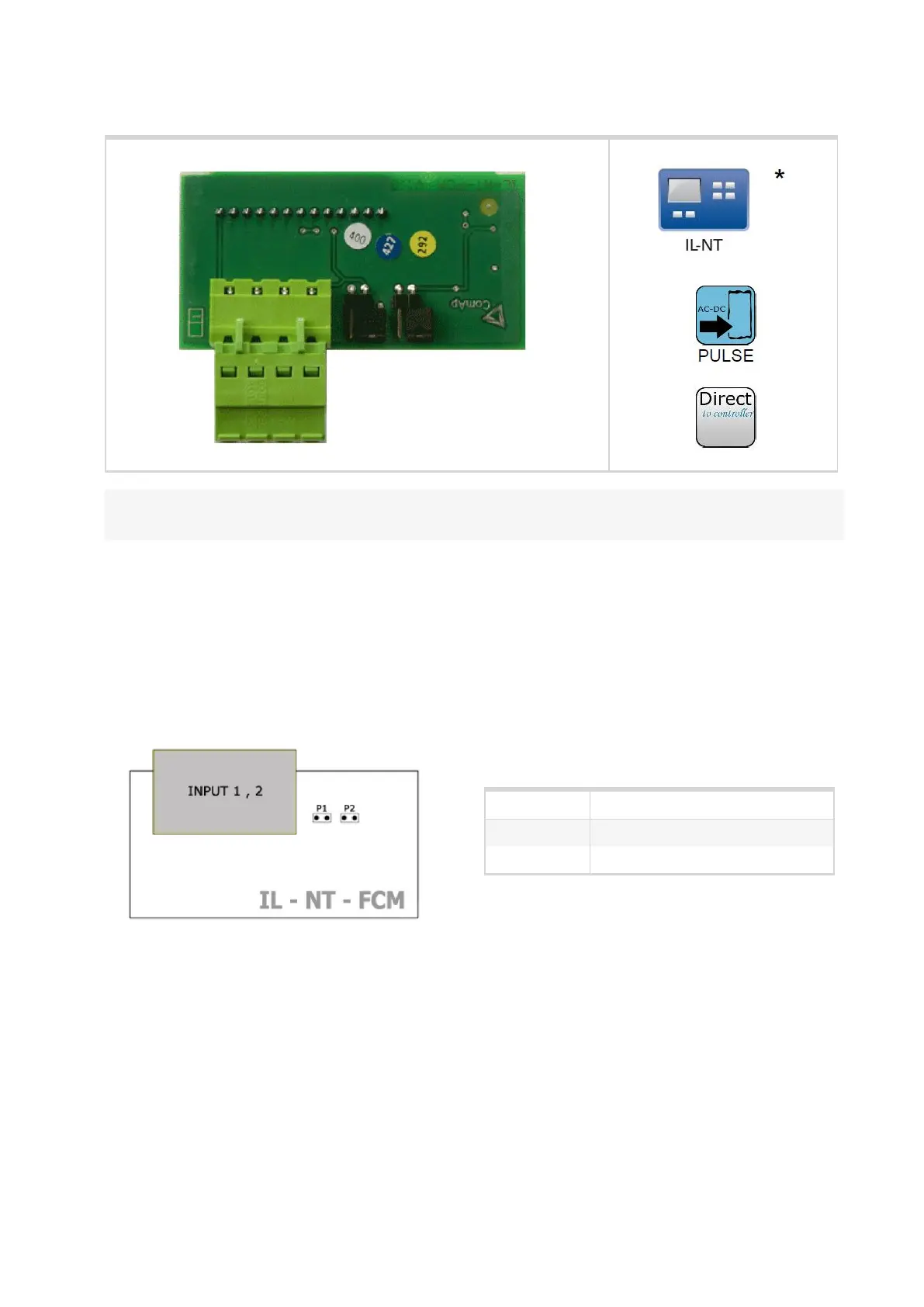

4.10 IL-NT-FCM
Note:
* This module can be use only with InteliLog controller.
4.10.1 Description
InteliLog fuel counter module is optional plug-in card. Through this card controller can read rectangular signal
on 2 inputs. The module has to be configured in LiteEdit software. The impulse inputs are used for evaluation
of incrementing values FuelConH and FuelAutRefTot in group Fuel mgmt.
4.10.2 Connectors
INPUT1 Fuel consumption per hour
INPUT2 Absolute fuel inflow into tank
P1,P2 Input settings
4.10.3 Address and jumper setting
Module inputs can be set for voltage or open collector input signal. When jumper P1 is open, module input is
sets to voltage input, jumper P2 is closed for open collector input. Jumper P1 configures input 1 and jumper
P2 input 2.
