Accessory Modules for IL-NT, IC-NT, IA-NT and ID-Lite Global Guide
36

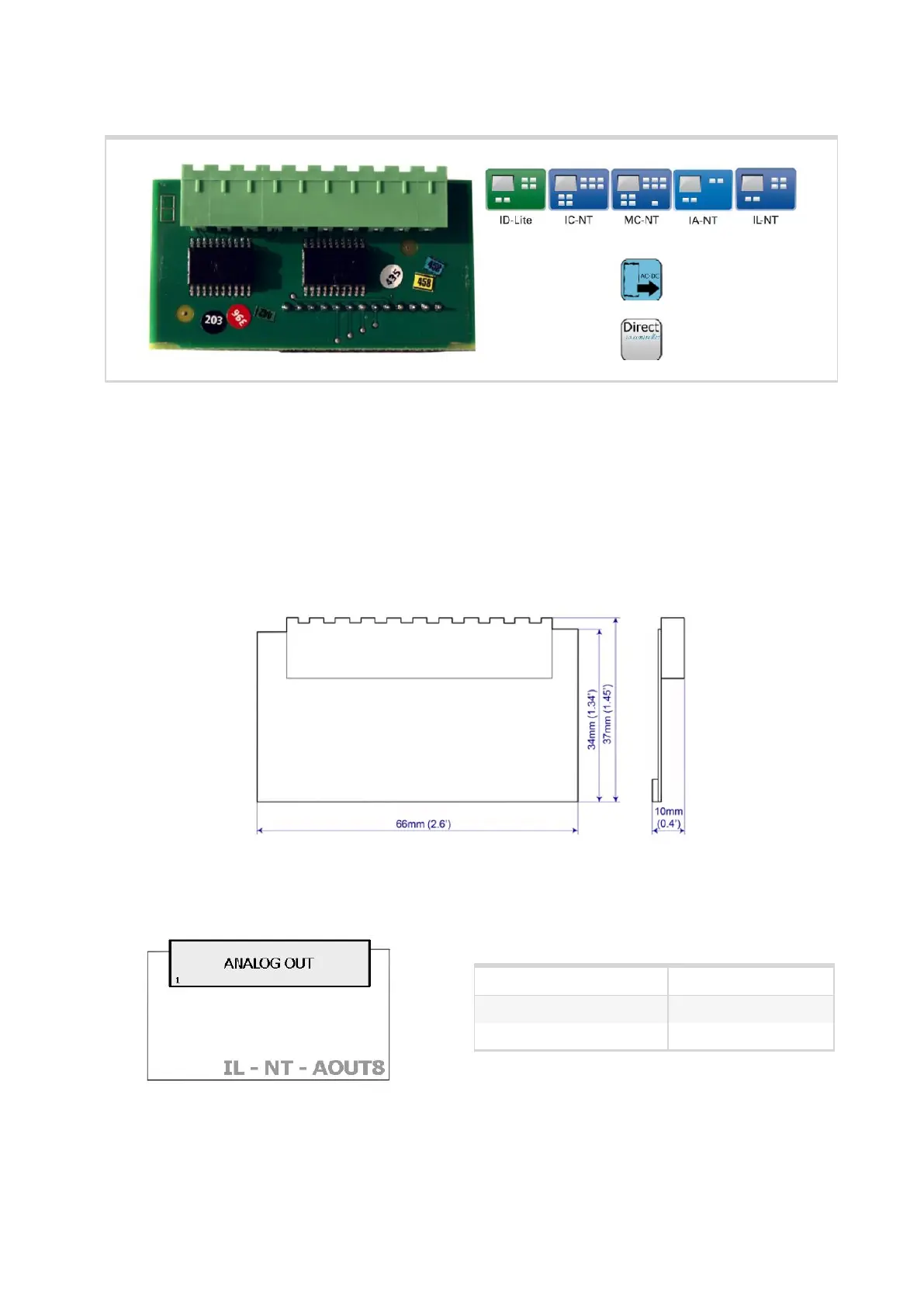

4.7 IL-NT-AOUT8
4.7.1 Description
Analog output module, optional plug in card IL-NT AOU8 provides eight Pulse-With-Modulation (PWM)
outputs. These are intended to drive VDO style analog gauges. This is to provide visual indication of typically
ECU values without installing additional sensors on the engine. PWM signal emulates sensor which would be
typically mounted on the engine.
Any value from controller may be configured to the outputs. Use LiteEdit PC SW to configure corresponding
sensor/gauge curve and value selection.
4.7.2 Connectors
ANALOG OUT – port 2-10 Analog out for gauges
ANALOG – port OUT 1 GND
ANALOG – port OUT 2 Power supply voltage
