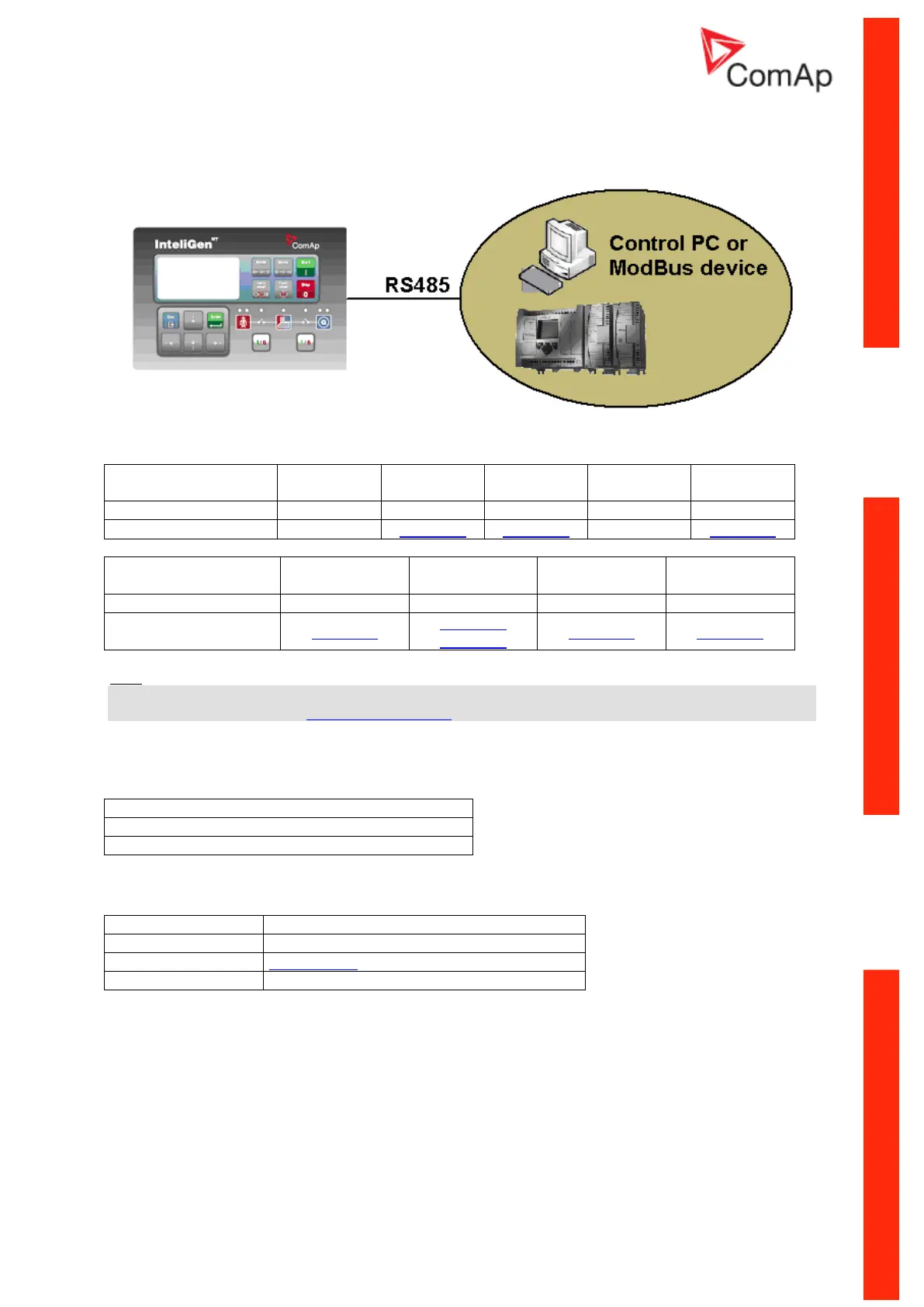

Communication Guide, ©ComAp – March 2014 31
IGS-NT Communication Guide 03-2014.pdf
RS485 ModBus
Controllers
Controllers
IG-NTC-BB
IS-NTC-BB
IM-NTC-BB
Connection applicable
YES
YES
YES
Available ports
RS485(2)
RS485(2)
RS485(2)
Controllers
IG-NT
IG-NTC
IS-NT-BB
IM-NT
Connection applicable
YES
YES
YES
YES
Available ports
RS485(1)
RS485(1)
RS485(2)
RS485(2)
RS485(1)
Hint:
Some controllers do not allowe direct RS485 connection, however RS485 connection is available for
all mentioned controllers via external bridge I-LB+.
Controller setup
(Setpoints/Comms settings group)
RS232(2) mode = MODBUS-DIRECT
RS485(2) conv. = ENABLED
RS232(2)MBCSpd = 9600, 19200, 38400, 57600
Equipment
Equipment needed
Controller side
-
Connection
RS485 cable
Other device side
RS485 connection or RS485/USB converter
