Communication Guide, ©ComAp – March 2014 44
IGS-NT Communication Guide 03-2014.pdf
Web interface
The web interface is intended to monitor the controller from a web browser. Static IP address is
required for this function as you must know the IP address to put it into the browser. Public IP address
or port forwarding is required if you want to see the web pages from the Internet.

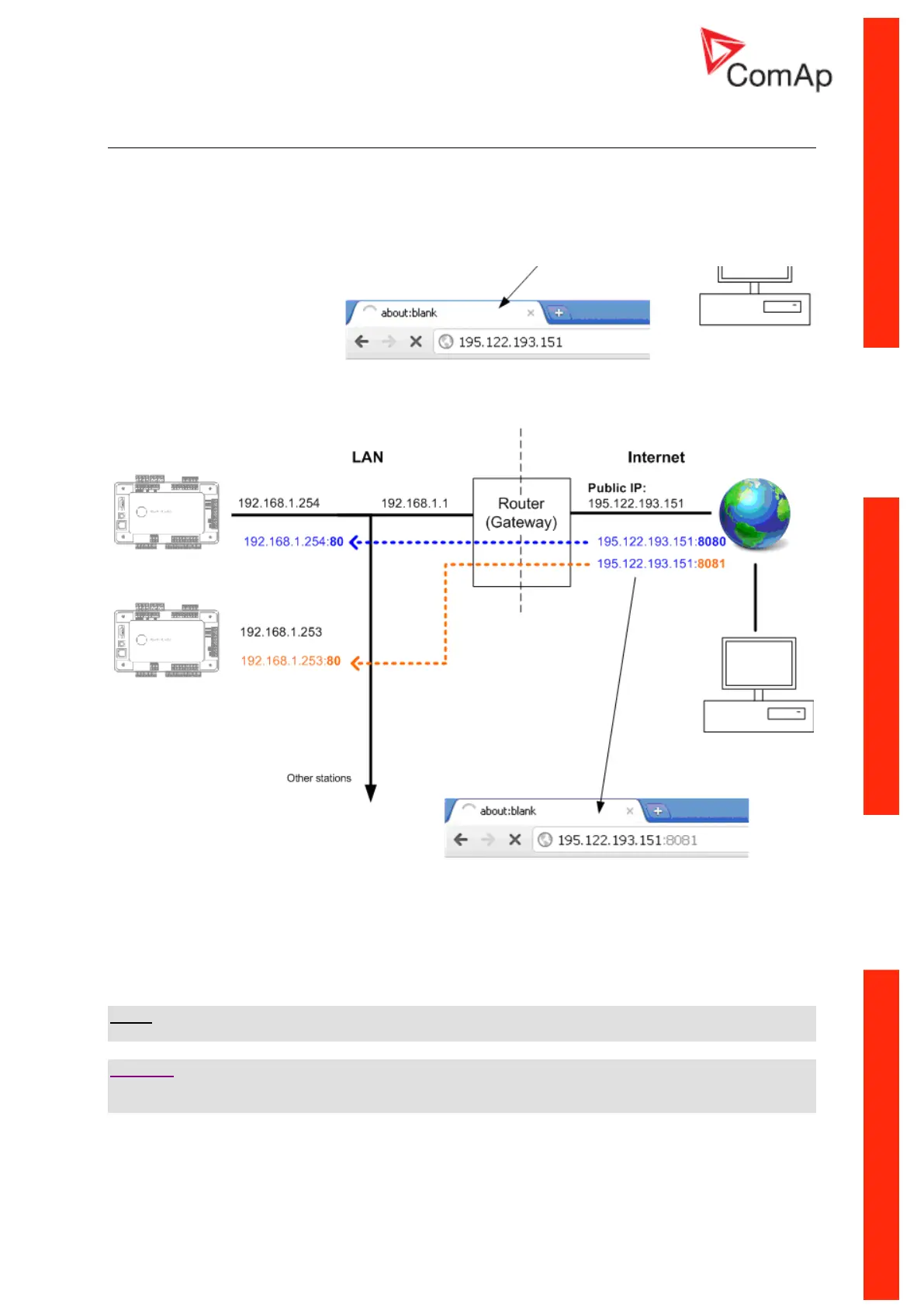

PORT FORWARDING EXAMPLE FOR WEB CONNECTION
The web server is designed for basic monitoring and adjustment of the controller using a web browser.
Put the Controller IP address into the browser. You will be asked for the controller access code prior
to entering the controller web.
NOTE:
The web server is optimized for IE6 or higher and screen resolution 1024x768 pixels.
CAUTION!
Do not use the browser navigation buttons as "Back", "Forward" or "Reload". Use the links and the
reload button located in the toolbar instead.
