Comm
unication Guide,
©
Com
Ap
–
March 2014
10
IGS-NT Com
munication Guide
03
-2014.pdf
IG/IS/IM
-NTC-BB -

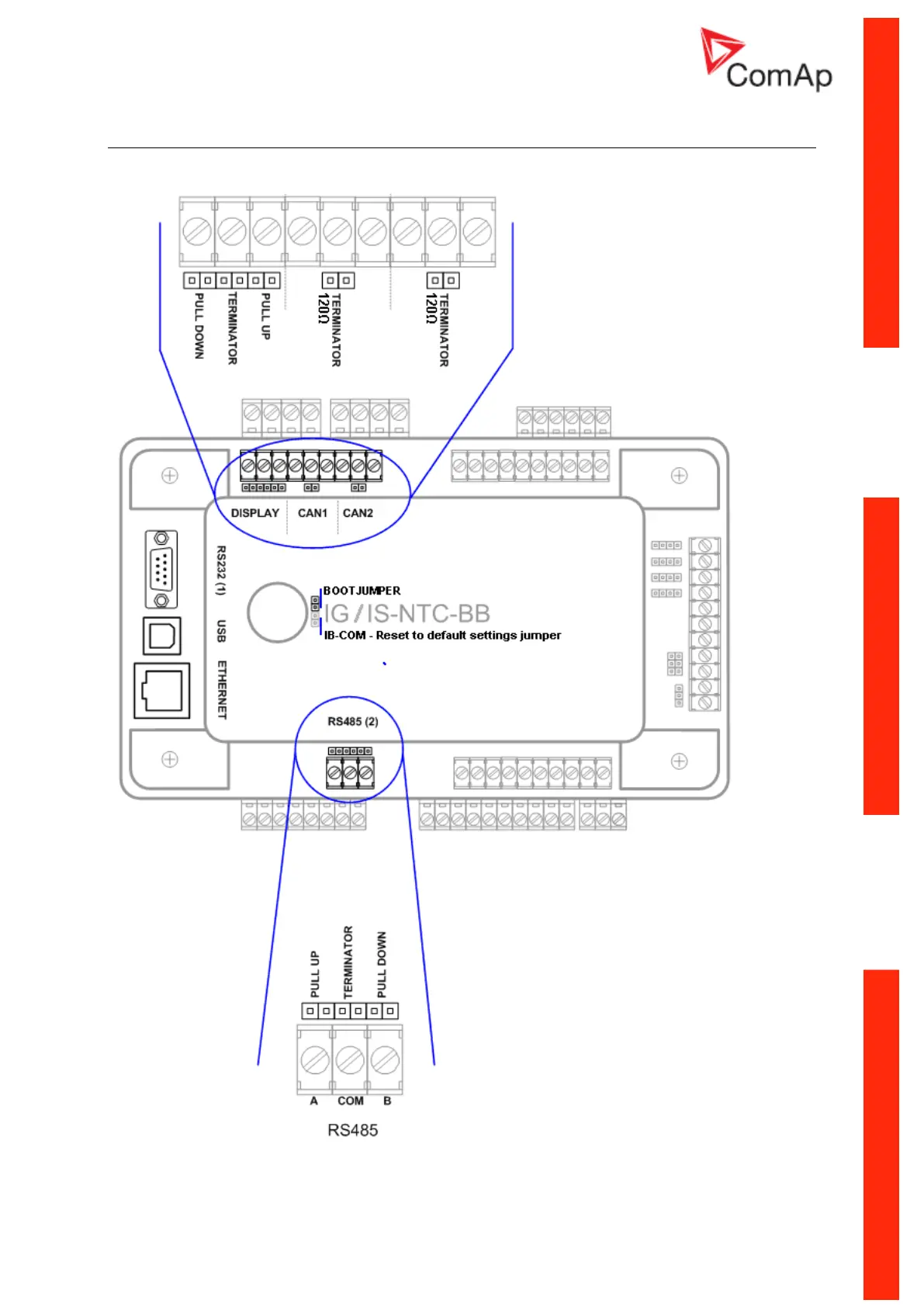

Jumpers settings
9
11
Table of Contents
Table of Contents
2
Scope of the Document
5
Definition of Terms
6
Controllers Communication Capabilities
7
IG/IS/IM-NTC-BB - Communications
7
IG/IS/IM-NTC-BB - Terminals
8
IG/IS/IM-NTC-BB - Peripheral Modules
9
IG/IS/IM-NTC-BB - Jumpers Settings
10
IG/IM-NT-BB - Communication
11
IG/IM-NT-BB - Terminals
12
IG/IM-NT-BB - Peripheral Modules
13
IG/IM-NT-BB - Jumpers Settings
14
IG-NT - Communications, Terminals
15
IG-NTC - Communications, Terminals
16
IS-NT-BB - Communications, Terminals
17
IM-NT - Communications, Terminals
18
Monitoring Local on Site - Comap SW
19
Direct PC Connection to Single Gen-Set
19
RS232 Connection
19
USB Connection
20
RS485 Connection
21
Ethernet Connection (Direct)
22
Direct PC Connection to Multiple Gen-Sets
23
RS485 Connection
23
RS232/485 Connection (I-LB+)
24
USB Connection Via I-LB+ Module
26
Ethernet Connection Via IB-NT (IG-IB)
27
Ethernet Connection (Direct)
28
Monitoring Local on Site - MODBUS
30
Modbus - Single Gen-Set
30
RS232 Modbus
30
RS485 Modbus
31
Ethernet - MODBUS/TCP (Direct)
32
Modbus - Multiple Gen-Sets
33
Rs485 - Modbus
33
Rs232/Rs485 - Modbus (I-Lb+)
34
Ethernet - MODBUS (IB-NT)
35
Ethernet - MODBUS/TCP (Direct)
36
Remote Monitoring
37
Connection to Internet (Direct)
37
Internet Connection Via Airgate
39
Websupervisor
41
Web Interface
44
Internet Connection Via Cellular Network
48
Connection Via Internet Bridge IB-NT
48
Modem Connection
49
Modem Connection to Single Gen-Set
49
Modem Connection to Multiple Gen-Sets
50
Active Call
51
Active SMS
52
Active E-Mail (SMS E-Mail)
53
Peripheral Modules
54
Displays
54
Intelivision 8 Display
54
Intelivision 5 Display
54
Comms Extension - I-LB+ Local Bridge
55
Comms Extension - IG-IB Internet Bridge
57
I-CR Module for CAN Bus Extension
69
I-Lb
70
I-CR-R Module for CAN Bus Redundancy
71
Appendix
75
Communication Cables
75
RS232 Cable
75
USB Cable
76
Ethernet Cable
77
Recommended CAN/RS485 Connection
78
CAN Bus Connection
78
CAN Bus Extension Options
79
RS485 Connection
82
Modem Recommendations
84
Analog Modem with DC Supply
84
Recommended ISDN Modem
84
Recommended CDMA Modem
84
Recommended GSM Modems
84
3G Modems
87
Recommended Satellite Modems
87
Converters
87
Converter RS232 RS485
87
RS232 Bluetooth Adapter
88
Converter 230V AC TCP/IP
88
Converter USB RS232
88
Converter USB RS485
89
Converter Modbus RTU TCP
90
Isolator RS232
90
Radio Link
91
Converter Modbus RTU SNMP
92
Converter Modbus RTU Profibus
94
Ethernet Converter from Twisted Pair (UTP/STP) to Optic
101
SMS Message Commands
102
Modbus Connection
107
Modbus Step by Step
107
Important Setpoints in the Controller
107
Modbus Communication Via RS232 - Single Controller
107
Modbus Communication Via RS485
108
Modbus Communication Via RS485 - Multiple Controllers
108
Modbus Communication Via I-LB
109
Modbus Communication
110
Data Reading
110
Data Writing
110
Modbus Protocol Description
112
Read Multiple Registers
113
Write Single Register
113
Alarm List Reading
115
Alarm List Reading Via Modbus
115
History Reading
117
Check Field Calculation
118
How Get Numbers of Modbus Communication Objects
118
Reserved Communication Objects
120
Access to Password Protected Objects
121
Commands for IGS-NT
122
Commands for IM-NT
123
User Modbus
125
Modbus Appendix
126
Error List
126
Data Types
127
Communication Status
129
Examples of Modbus Communication
131
Battery Voltage - Reading (Read Multiple Registers)
131
Values (Oil Press, Water Temp, Fuel Level) - Reading
132
Binary Input - Reading
132
Password Decode - Reading
132
Gen-Set Name - Reading
133
Engine State - Reading
133
Gear Teeth - Writing
134
Nominal Power - Writing
134
Mode - Writing
134
Reset / Confirm Alarm
135
Remote Switch 1 - Set (Remote Control 1)
136
External Value1 - Writing
136
User & Password - in Two Steps
137
User & Password - in One Step
138
Start the Engine - in One Step
138
Start the Engine - in Two Steps
139
History - Reading
139
Alarmlist Reading
140
