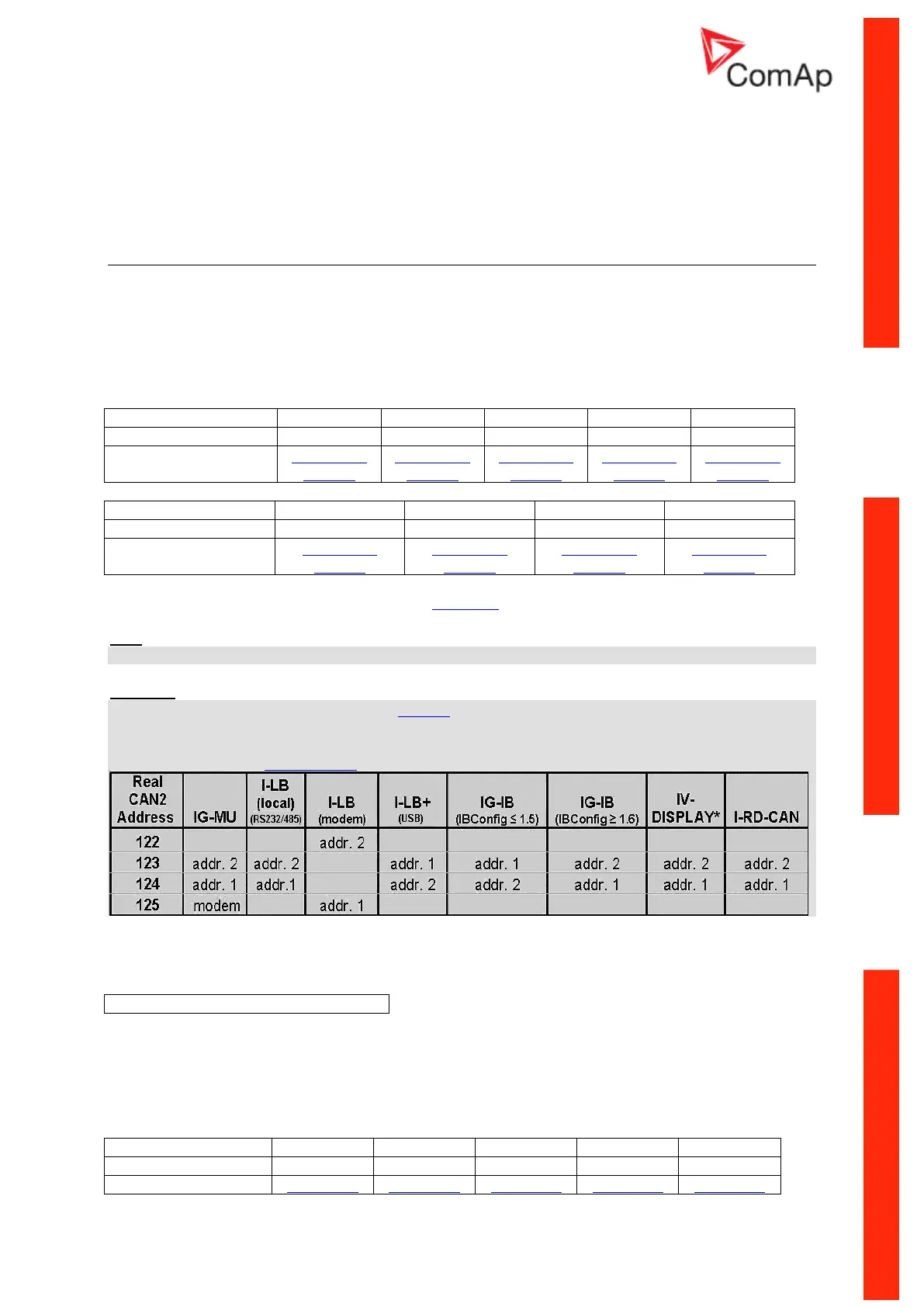

Communication Guide, ©ComAp March 2014 54
IGS-NT Communication Guide 03-2014.pdf
Peripheral modules
Displays
InteliVision 8 display
Controllers
Controllers
IG-NTC-BB
IS-NTC-BB
IM-NTC-BB
Connection applicable
YES
YES
YES
Physical port
RS485 (1),
CAN(2)
RS485 (1),
CAN(2)
RS485 (1),
CAN(2)
Controllers
IG-NT
IG-NTC
IS-NT-BB
IM-NT
Connection applicable
YES
YES
YES
YES
Physical port
RS485 (1),
CAN(2)
RS485 (1),
CAN(2)
RS485 (1),
CAN(2)
RS485 (1),
CAN(2)
It is possible to connect up to 3 IV8 displays to RS485(1) terminal Link and up to 2 displays on CAN(2)
bus.
Hint:
Connection InteliVision 8 to IG/IS-NT controllers is described in InteliVision-1.2.2-Reference Guide.pdf
Attention:
In case of connection IV8 to controller via CAN(2) bus the collision can occur. IV8 is in this case
connected via 123 and 124 CAN (2) physical address, that can be used for other peripheral modules
(see the table bellow). Make sure, that real CAN(2) physical address (123 and 124) are not shared by
other devices such as I-LB+ module.
Controller setup
(Setpoints/Comms settings group)
RS485(1) conv. = DISABLED
InteliVision 5 display
Controllers
Controllers
IG-NT-BB
IG-NTC-BB
IS-NTC-BB
IM-NT-BB
IM-NTC-BB
Connection applicable
YES
YES
YES
YES
YES
Physical port
RS485 (1)
RS485 (1)
RS485 (1)
RS485 (1)
RS485 (1)
