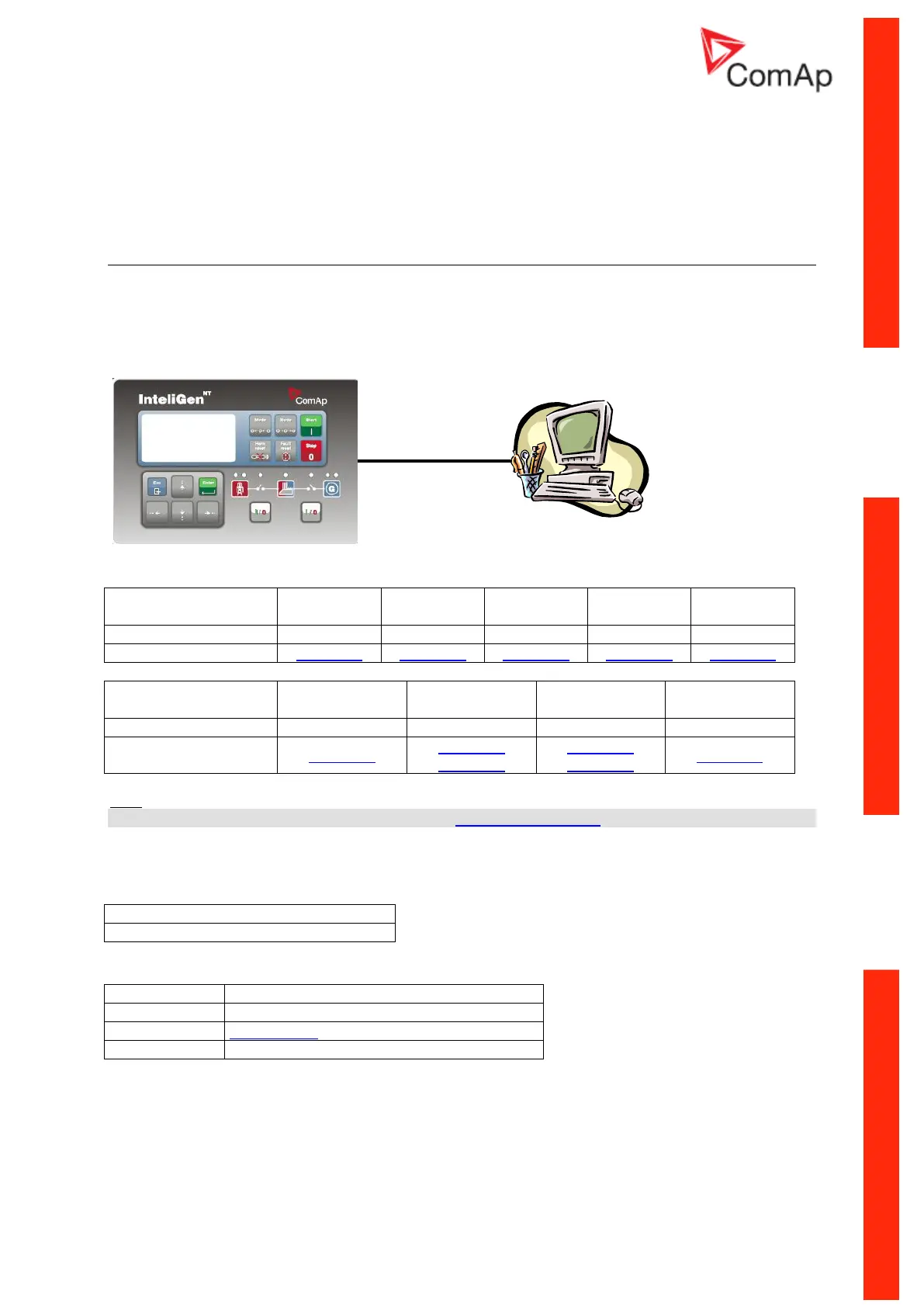

ComAp Inteli Mains NTC BaseBox User Manual

Communication Guide, ©ComAp – March 2014 19
IGS-NT Communication Guide 03-2014.pdf
Monitoring Local on site - Comap SW
Direct PC connection to Single gen-set
RS232 connection
RS232
PC
Controllers
Controllers
IG-NT-BB
IG-NTC-BB
IS-NTC-BB
IM-NT-BB
IM-NTC-BB
Connection applicable
YES
YES
YES
YES
YES
Available ports
RS232(1)
RS232(1)
RS232(1)
RS232(1)
RS232(1)
Controllers
IG-NT
IG-NTC
IS-NT-BB
IM-NT
Connection applicable
YES
YES
YES
YES
Available ports
RS232(1)
RS232(1)
RS232(2)
RS232(1)
RS232(2)
RS232(1)
Hint:
Other way how to realize RS232 connection is via external bridge I-LB+.
Controller setup
(Setpoints/Comms settings group)
RS232(1) mode = DIRECT
RS485(1) conv. = DISABLED
Equipment
Equipment needed
Controller side
-
Connection
RS232 cable up to 10m
PC side
RS232 connection or RS232/USB converter
