InteliLite Global Guide
108
following essential steps:
Adjust the sheet to your needs. See Working with sheets (page 108) for more information.
Add PLC blocks into the sheets. See Adding PLC blocks (page 108) for more information.
Define inputs and outputs of the PLC program. See Define inputs and outputs (page 109) for more
information.
Create connections between inputs, blocks and outputs. See Creating wires (page 111) for more
information.
Adjust properties of the blocks. See List of PLC blocks (page 548) for more information about blocks.
Working with sheets
Drag the sheet edges to re-size the sheet according to your needs.

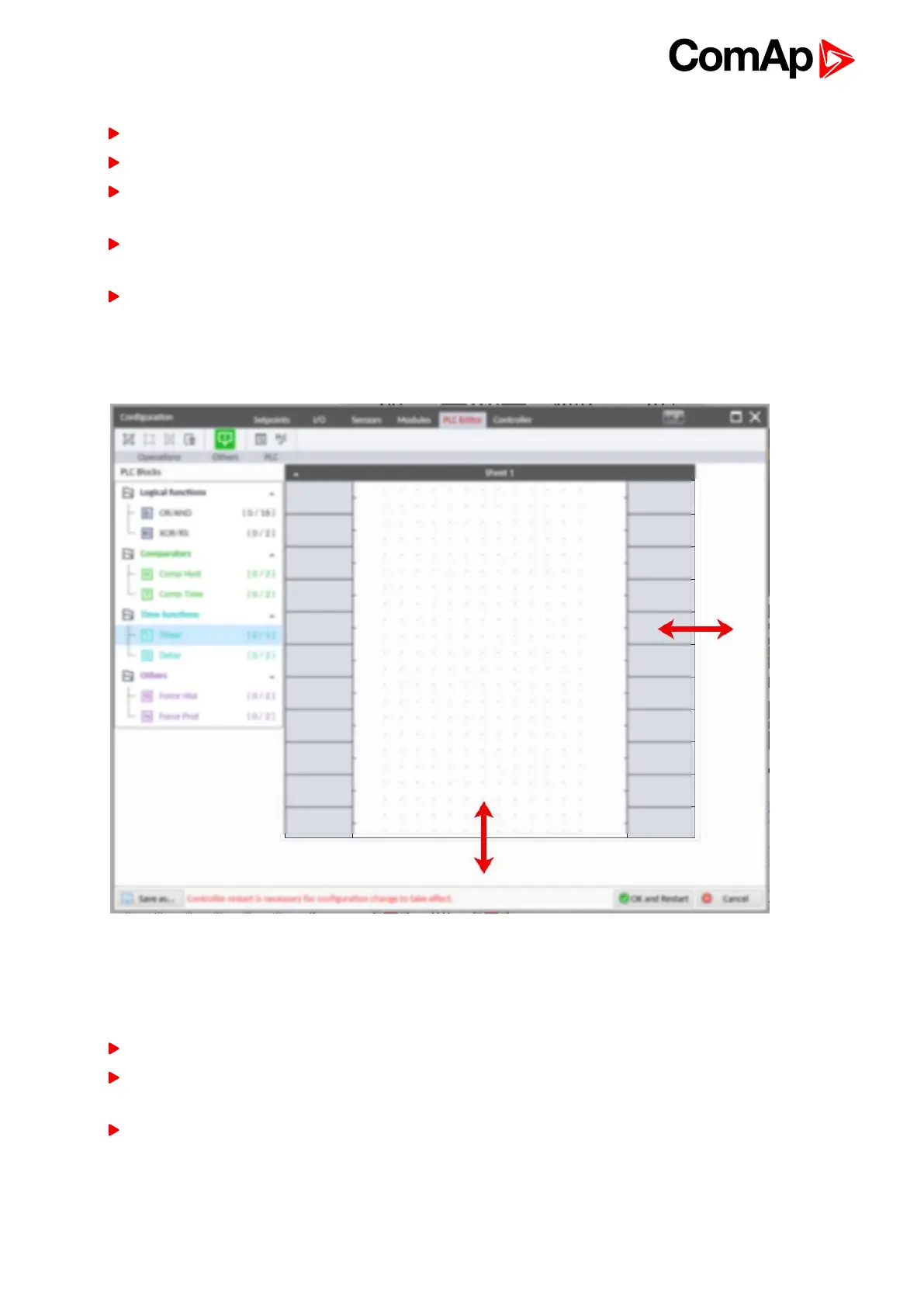

Image 5.34 Adjusting PLC sheet
Adding PLC blocks
Adding PLC block is simple and intuitive. Follow the procedure below to add PLC block.
Select required block from the list of available PLC blocks at the left and drag it into the sheet
Double-click on the block and adjust properties of the block. See List of PLC blocks (page 548) for more
information about blocks.
Connect the block inputs and outputs by drawing wires in the sheet. See Define inputs and outputs (page
109) for more information. It is also possible to connected inputs and outputs via properties of selected PLC
block.
