ComAp InteliLite MRS16 User Manual

InteliLite Global Guide
615
Number
Up to 8 , non-isolated
Max. current
0,5A
Switching to
positive supply terminal
Binary outputs
Number of inputs
2
Nominal input current
1A/5A
Load (CT output impedance)
< 0,1
Max measured current from CT
10 A
Current measurement
tolerance
2% from Nominal current
Max peak current from CT
150 A / 1 s
Max continuous current
10 A
Current measuring input
Earth fault current measurement
The Earth Fault protection is done by the extension module EM-BIO8-EFCP.
When the measured current exceeds the set value, which indicates that part of the current is dispersed to earth,
and when the set Earth Fault Delay (page 339) time elapses, the Earth Fault Current Protection (page 338), Sd
Earth Fault Current (page 585) alarm and AL EARTH FAULT (PAGE 469) output are activated. Earth Fault
protection is not active when gen-set does not run and when the Earth Fault Current Protection (page 338) is
disabled.
IMPORTANT: Earth fault current measurement is not intended to protect human health, but the
machines!

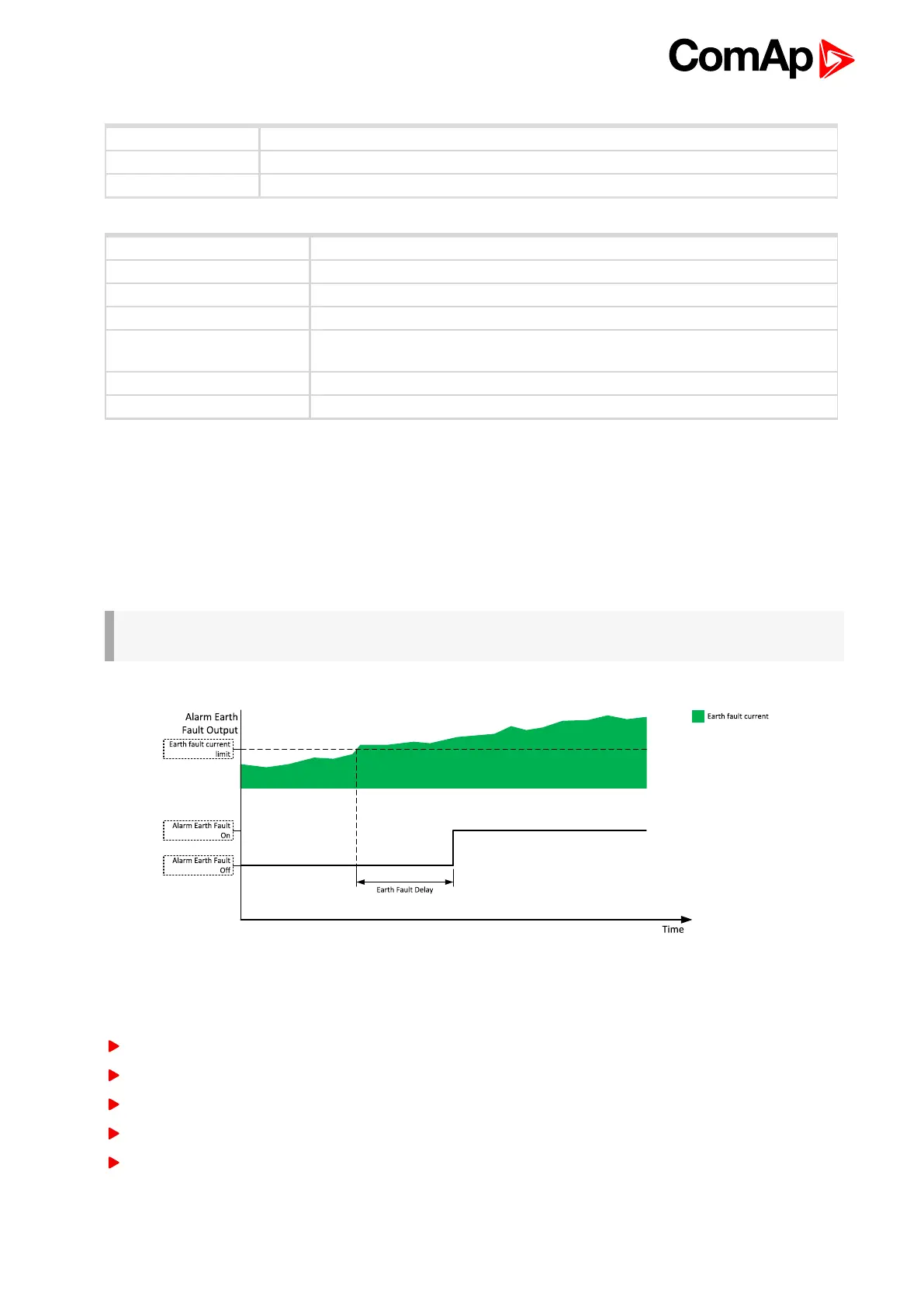

Image 9.28 Earth fault current protection
Firmware upgrade
Download the newest FWof module from ComAp website (in form of PSI file or installation package)
Instal package to computer or open PSI to instal it into LiteEdit2015
Plug the module into the controller and power the controller on.
Open a connection with controller via LiteEdit2015
Go the menu Tools -> Firmware upgrade, select the Plug-in modules tab and select the appropriate firmware
