Comelit SIMPLEBUS2 - Distances with Video Concentrator-Amplifier

SIMPLEBUS2 AUDIO-VIDEO
6
A MAX
B MAX
C MAX
NORMAL GAIN HIGH GAIN
Comelit Art.4577/4579
1 mm²
(Ø 1.2 mm AWG 17)
600 m
(1965 feet)
200 m
(655 feet)
300 m
(985 feet)
600 m
(1965 feet)
Comelit Art. 4576/4578
0.5 mm²
(Ø 0.8 mm AWG 20)
300 m
(985 feet)
200 m
(655 feet)
300 m
(985 feet)
600 m
(1965 feet)
UTP5 cat. 5 0.2 mm²
(Ø 0.5 mm AWG 24)
150 m
(495 feet)
150 m
(495 feet)
200 m
(655 feet)
300 m
(985 feet)
0.28 mm²
(Ø 0.6 mm AWG 23)
200 m
(655 feet)
150 m
(495 feet)
200 m
(655 feet)
300 m
(985 feet)
0.5 mm²
(Ø 0.8 mm AWG 20)
300 m
(985 feet)
100 m
(325 feet)
200 m
(655 feet)
300 m
(985 feet)
1 mm²
(Ø 1.2 mm AWG 17)
600 m
(1965 feet)
150 m
(495 feet)
200 m
(655 feet)
300 m
(985 feet)
1 mm²
(Ø 1.2 mm AWG 17)

600 m
(1965 feet)
80 m
(260 feet)
100 m
(325 feet)
150 m
(495 feet)
1.5 mm²
(Ø 1.4 mm AWG 15)
700 m
(2295 feet)
100 m
(325 feet)
200 m
(655 feet)
300 m
(985 feet)

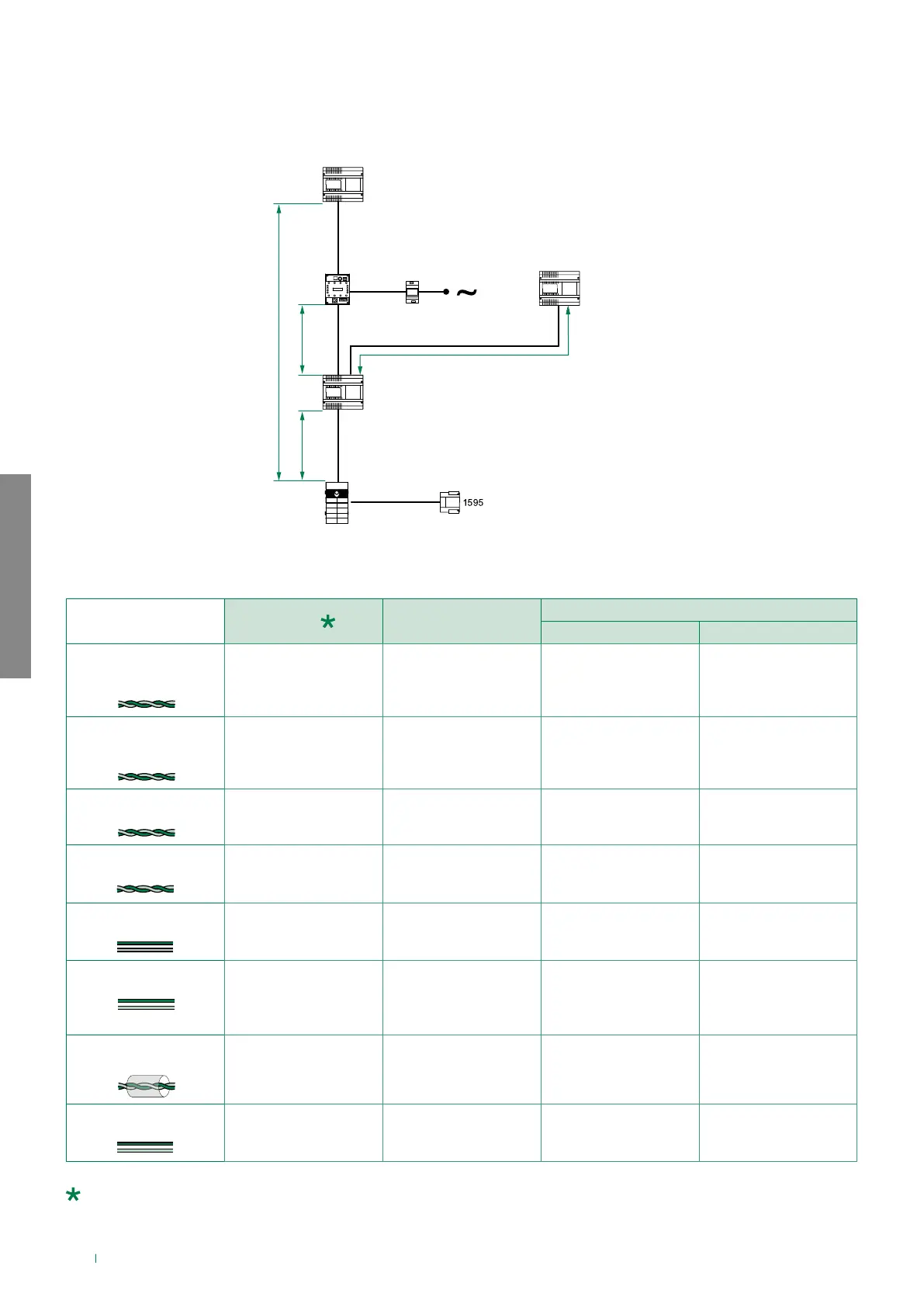

Distances with video concentrator-amplifier Art. 4933
4933
4833C
4888C
B
A
C
1200
4888C
C
C
UT1020
For greater distances, please contact Comelit Group S.p.A. for information on using the data amplifier Art. 1236, to be
installed before Art. 4933.
